1、What is the Modbus protocol?
Modbus is a universal communication protocol for industrial instruments. Currently, the most commonly used types of smart electricity meters and energy meters are Modbus-RTU and Modbus-TCP. The data content and register rules read by both are exactly the same. The main difference lies in the transmission method and wiring method.

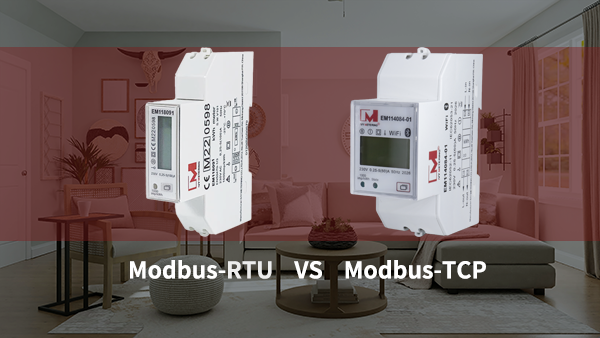

2、Core Differences Between RTU and TCP
2.1 Modbus-RTU (Wired Transmission)
It transmits data via RS485 signal lines, with multiple meters connected in series on one line. The advantages are low cost and simple configuration; however, the disadvantages are obvious - slow transmission speed and limited transmission distance. A single break in the line will cause the entire line to be disconnected. It is prone to packet loss in industrial interference environments. It is suitable for old distribution cabinets, a small number of meters, and simple meter reading scenarios with fixed wiring.
2.2 Modbus-TCP (WiFi/Network Transmission)
It is based on network transmission and supports both network cables and WiFi wireless networking. Each meter has an independent IP. The transmission speed is thousands of times faster than RTU, and the communication is equipped with error correction and retransmission, making it more stable. The networking is independent nodes, and a single device failure does not affect the overall system. It supports remote cross-network meter reading and is the mainstream protocol for intelligent WiFi meters at present. It is suitable for buildings and apartments, batch networking, remote monitoring, and scenarios without wiring construction.
3、Advantages and Disadvantages of Modbus rtu and Modbus tcp
- Modbus-RTU: Cost-effective, simple configuration; requires wiring, slow speed, susceptible to interference, and cannot be remotely controlled.
- Modbus-TCP: No wiring required, fast speed, remote controllable, high stability; slightly higher cost, requires simple setting of network parameters.
4、Engineering Usage Tips
4.1 General Precautions
All meter addresses must be unique. The recommended polling interval for meter reading should be between 500ms and 2 seconds. Avoid frequent and rapid polling to prevent lag and packet loss.
4.2 RTU Wiring Tips
Shielded twisted-pair cables must be used. Avoid strong electrical interference. Each line is recommended to connect no more than 30 meters of meters. The communication parameters must be consistent between the preceding and subsequent devices.
4.3 TCP (WiFi Meters) Tips
It is recommended to set a static IP for the meters to prevent IP changes due to power outages, which could lead to disconnection. Try to use the 2.4G WiFi frequency band to avoid signal interference from metal distribution boxes. Do not expose the 502 port to the public network. Implement security protection measures. Each meter is recommended to connect to no more than 5 clients.
5、Summary of Selection
For old wired renovations with low budget, choose Modbus-RTU; for wireless without wiring, remote monitoring, and batch intelligent networking, choose Modbus-TCP. Currently, most high-end intelligent WiFi electricity meters support dual protocol switching, providing both local debugging and remote usage capabilities.
