Wi-Fi function supported
Bidirectional energy metering
Support Modbus-TCP communication protocol
Support for pre-payment of electric quantity and electricity charges
Built-in motor holding relay, remote control of the electricity meter's on/off state
1.Product Presentation

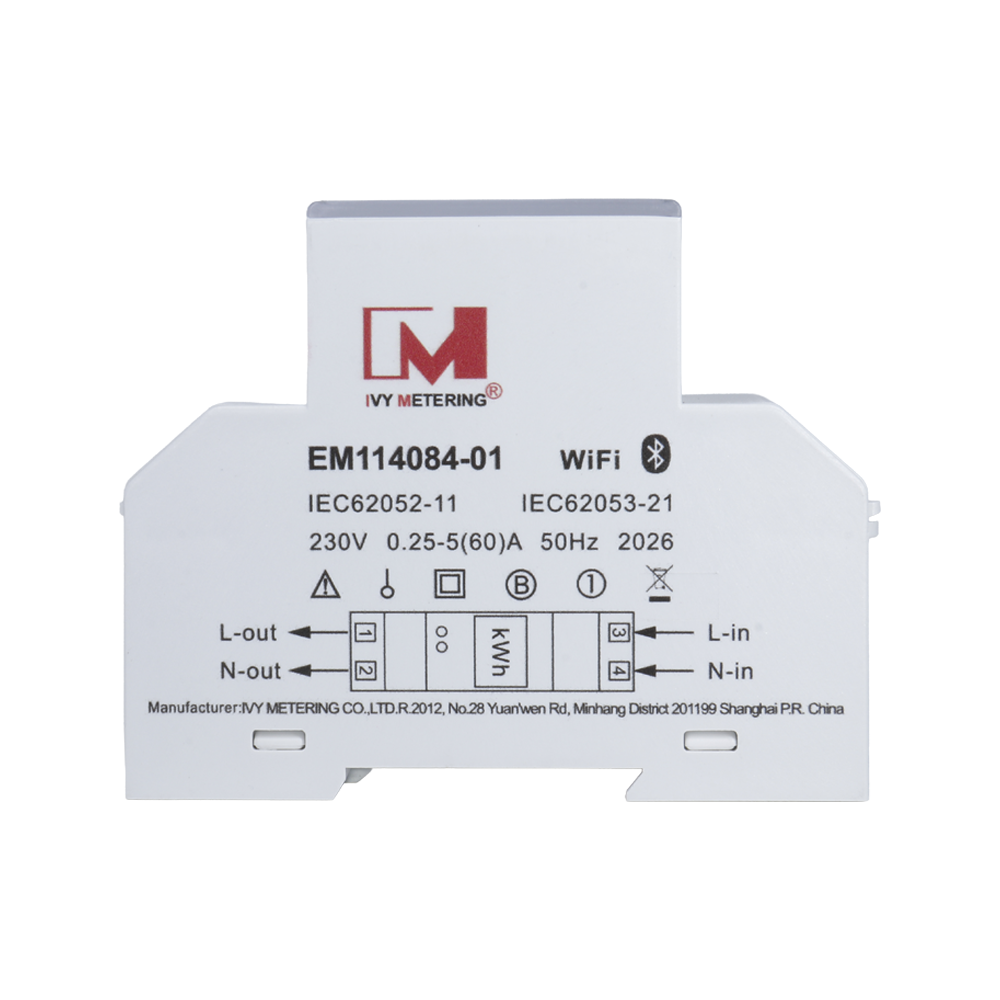

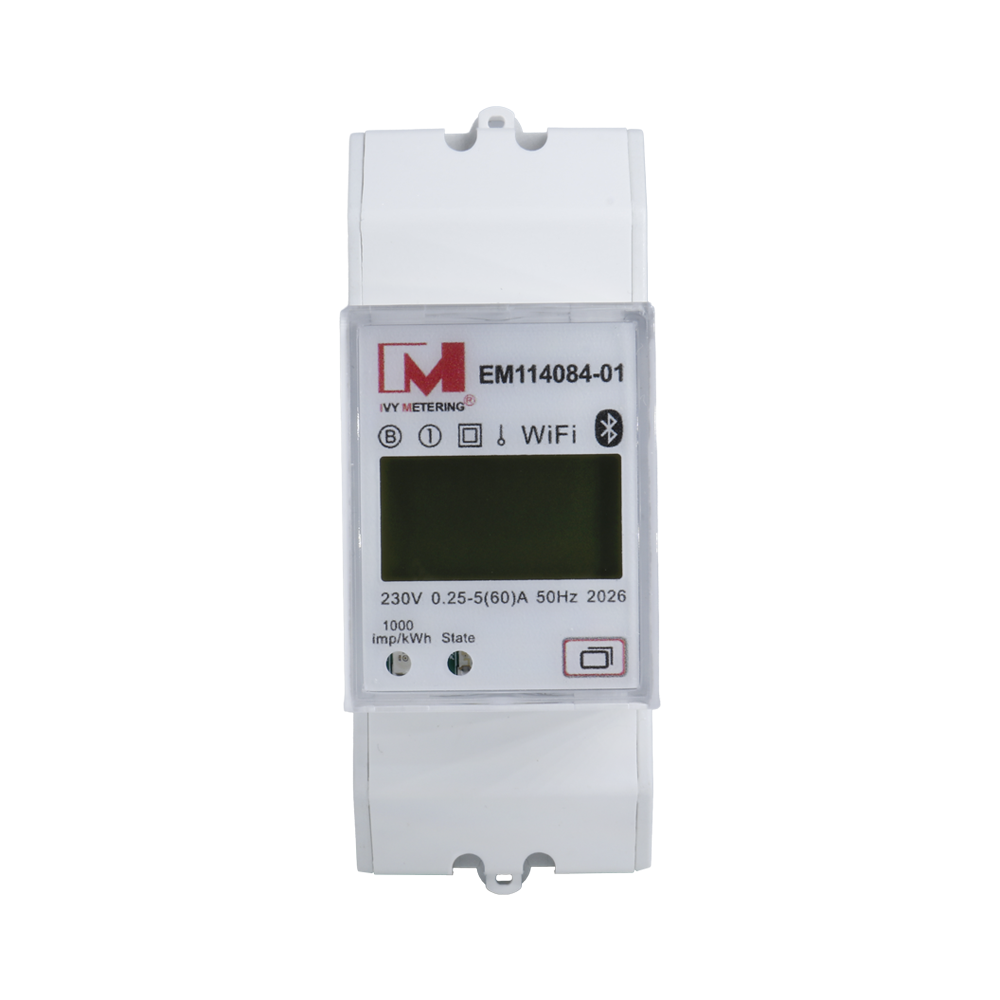

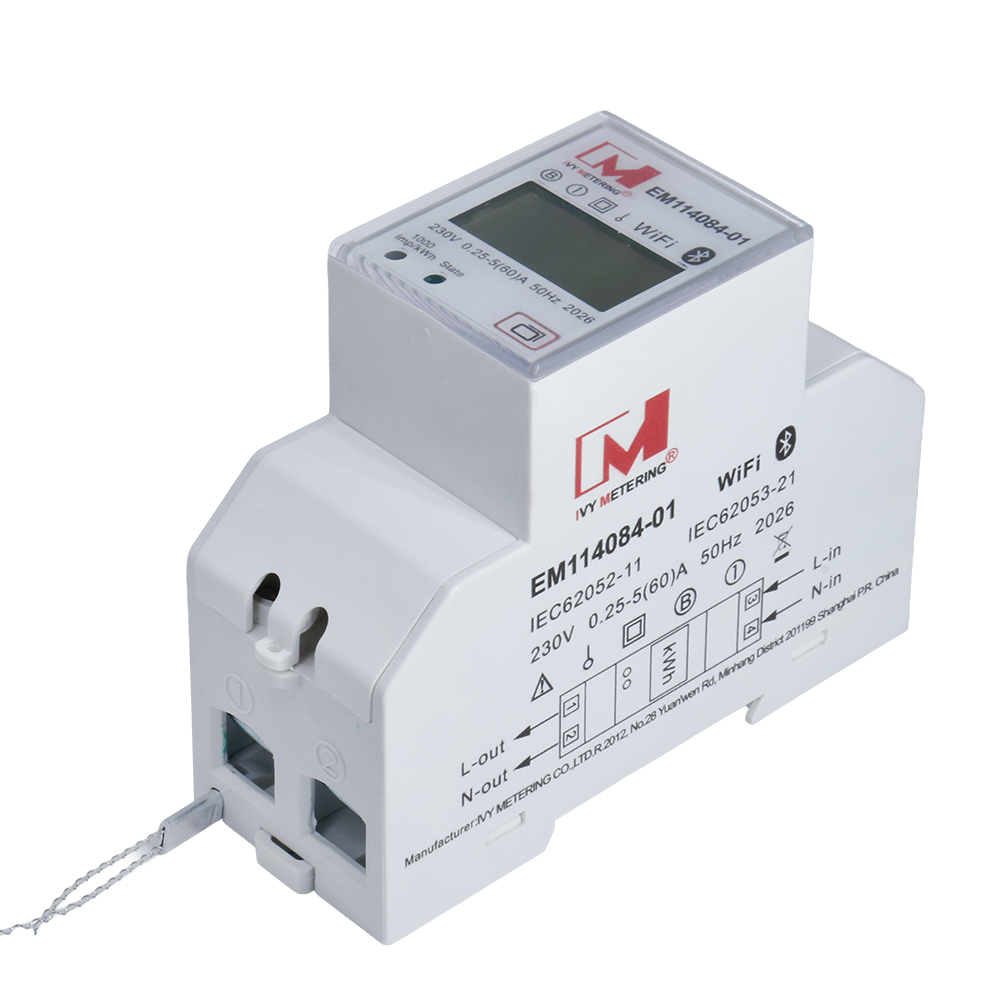

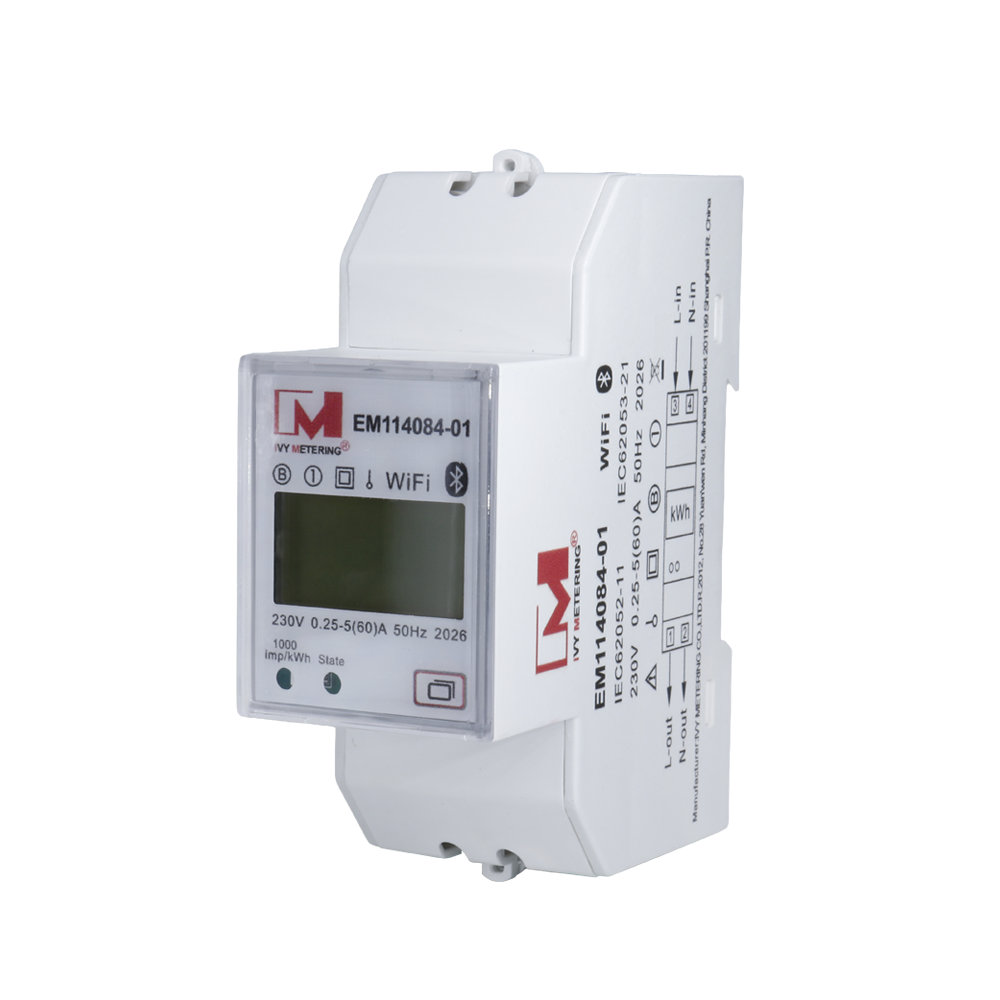

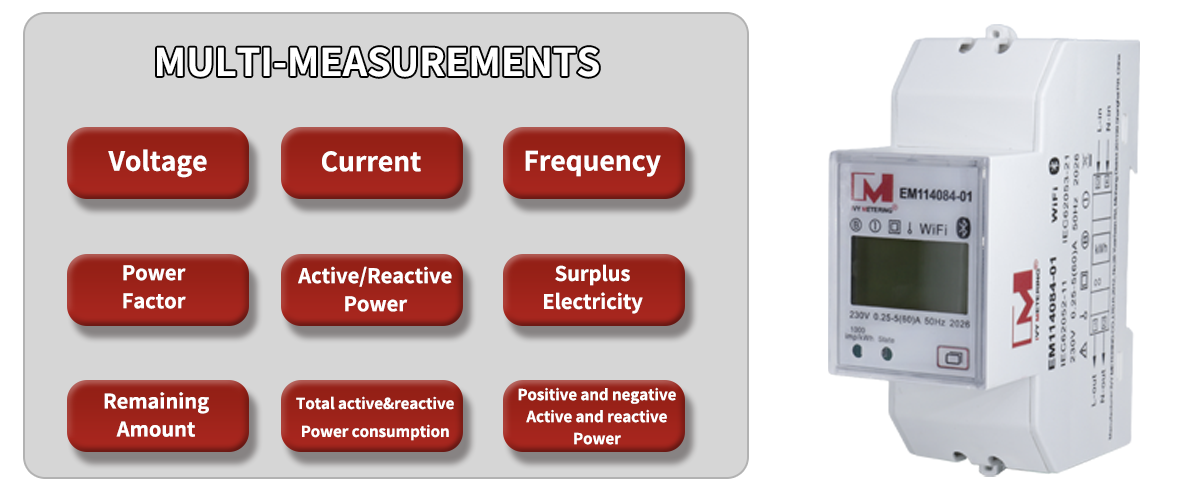

EM114084-01 is a single-phase dual-section WiFi electricity meter.
It is equipped with a holding relay and a WiFi communication Internet of Things module.
After power-on, it can complete the configuration of WiFi parameters via Bluetooth and automatically connect to the network.
Thus, it can realize functions such as remote meter reading, remote recharge, remote balance clearing, remote control, overcurrent trip, and automatic trip when the balance is exhausted.

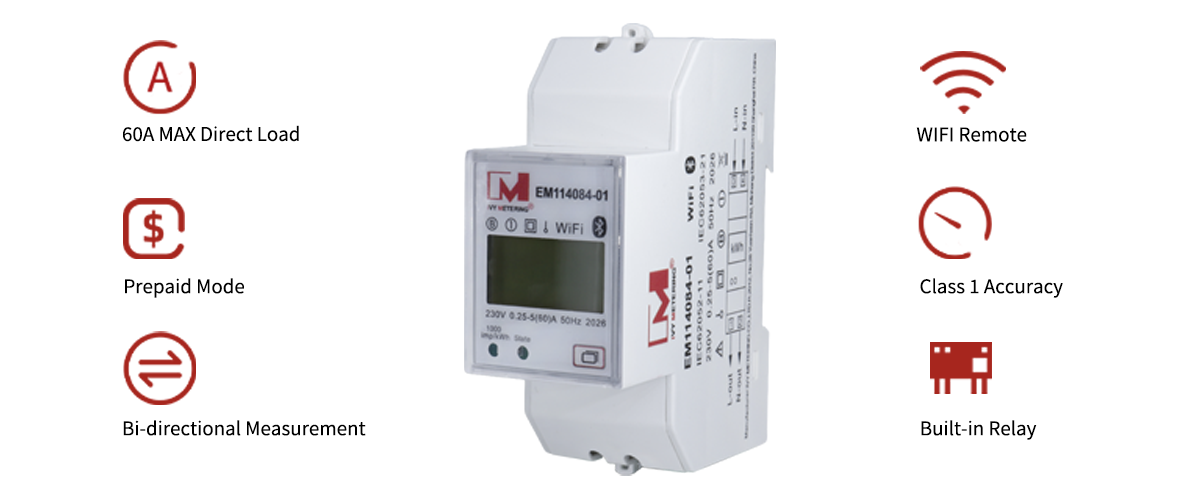

2.Product Feature
60A Direct Load
High-current direct connection without external CTs, reducing installation complexity.
WiFi Remote Monitoring
Real-time energy data access anytime through wireless communication.
Prepaid Mode
Smart prepaid management with balance control and remote disconnection.
Class 1 Accuracy
Reliable measurement accuracy for precise energy monitoring and billing.
Bi-directional Metering
Measures both imported and exported energy for solar and storage systems.
Built-in Relay
Remote ON/OFF control for intelligent load management.

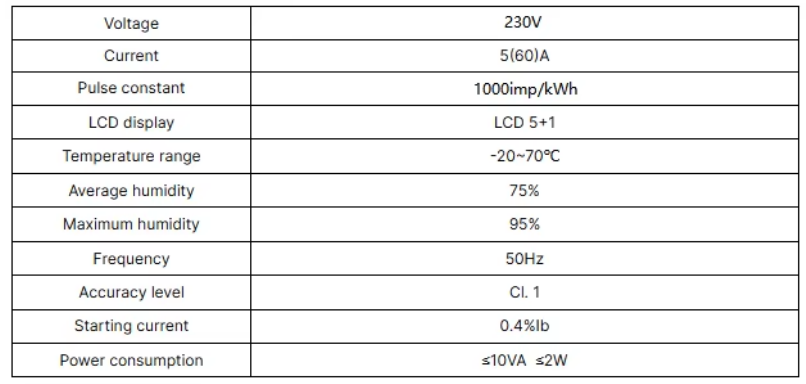

3.Product Parameter
| Parameter | Specification |
|---|---|
| Voltage | 230V |
| Current | 5(60)A |
| Pulse Constant | 1000 imp/kWh |
| LCD Display | LCD 5+1 |
| Temperature Range | -20~70°C |
| Average Humidity | 75% |
| Maximum Humidity | 95% |
| Frequency | 50Hz |
| Accuracy Level | Class 1 |
| Starting Current | 0.4%Ib |
| Power Consumption | ≤10VA ≤2W |

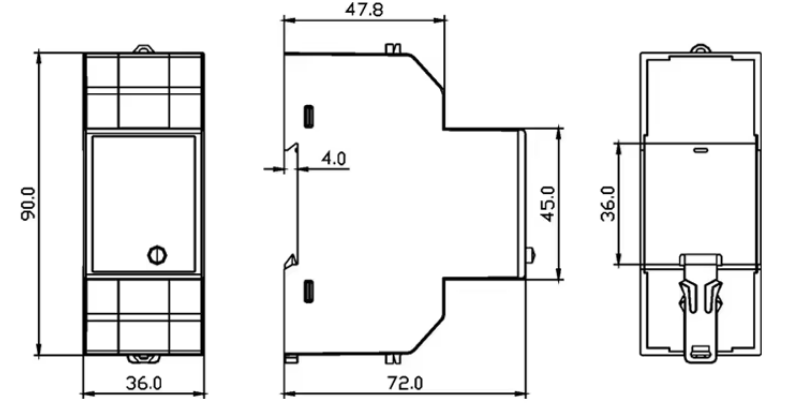

4.Dimension Figure
Function Description
Wi-Fi communication
Support Modbus-TCP communication protocol
Bidirectional measurement
Prepaid function
Built-in motor holding relay, supports overcurrent cut-off
