Wifi Energy Meter

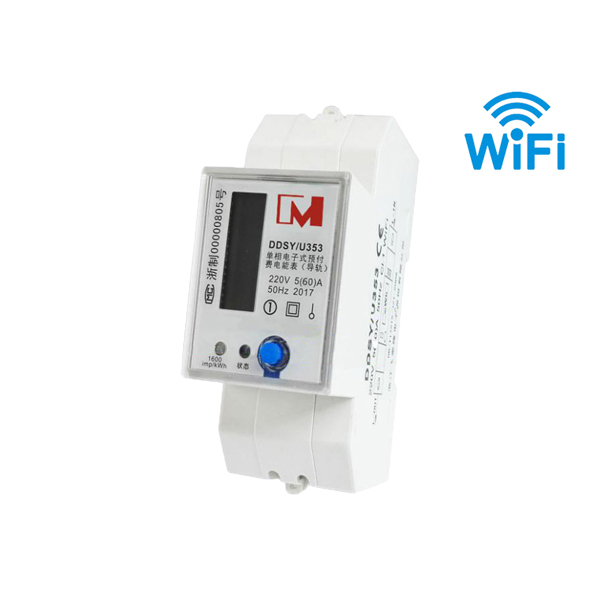

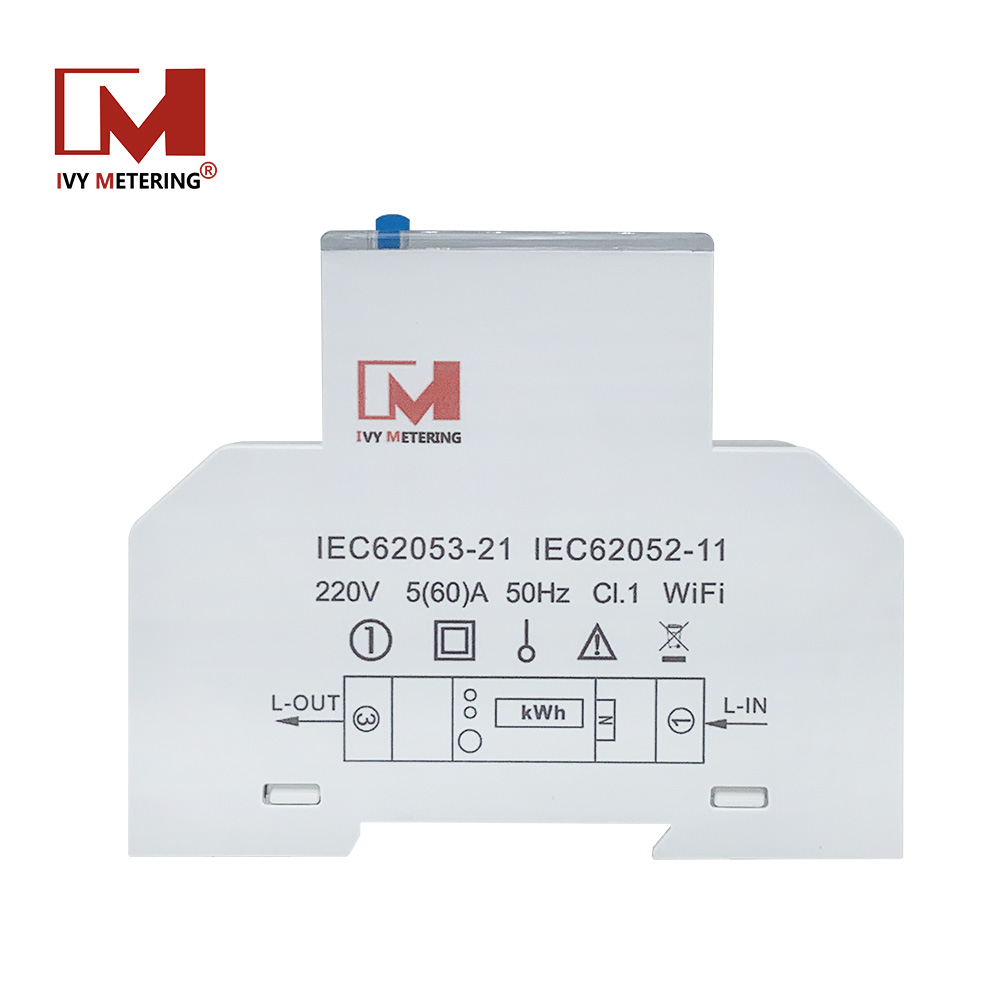

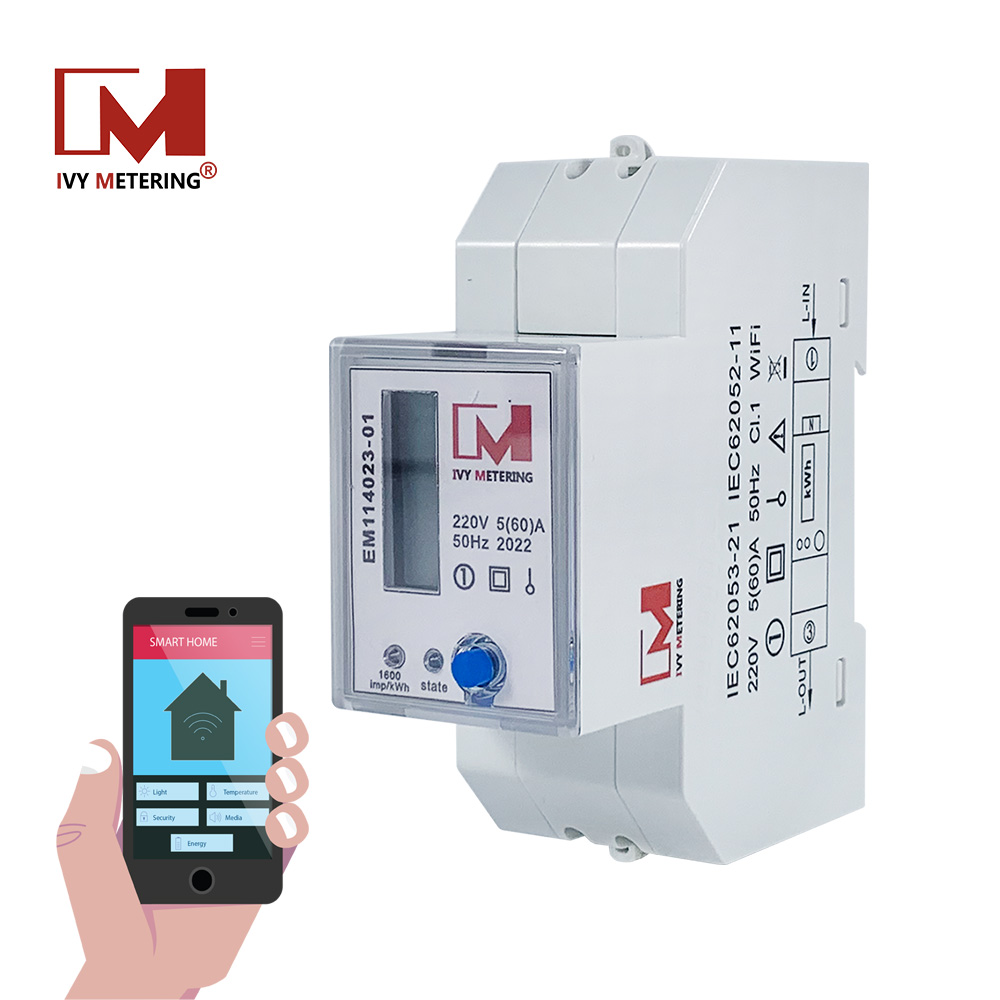

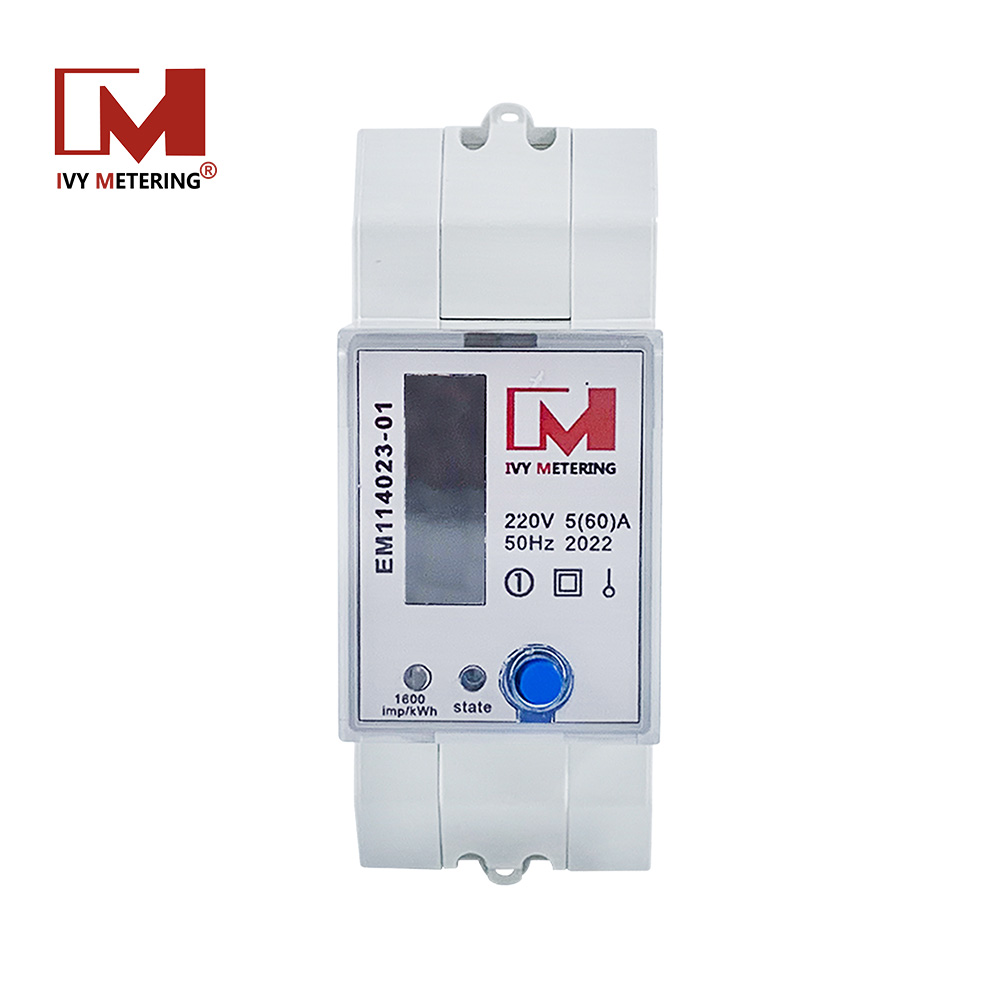

EM114023-01 1p2w Smart DIN Rail Wifi Energy Meter Prepaid Single Phase Electric Meter

EM114023 is a Single Phase Two Wires WIFI meter. It supports WIFI Communication 802.11 b/g/n Protocol. The prepayment function allows you to ‘pay as you go’ remotely. This meter’s event log allow users to record last ten times recharge’s token code and credit.This WIFI meter has built-in 100A latching relay for load control. It has level 1 credit alarm. Green LED will flash when the credit is less than 10 kWh. If the balance  is exhausted, users may borrow 10kWh power temporally via multi-function button.

Advantage:The Electric kWh Meter adopts WIFI communication, 100A latching relay breaker, microelectronics and digital processing technology to measure electric energy, accurate and reliable.

Design: Internal integrated circuit is manufactured with precision SMT technology, with good electromagnetic interference resistance and stable performance.

LCD screen: This energy meter can measure positive active energy in electric energy measurement, which is clearly displayed by LCD backlight screen. It circularly displays voltage, current, power and energy KWh.

Usage: It has low power consumption, high precision, high overload, electricity anti-stealing.

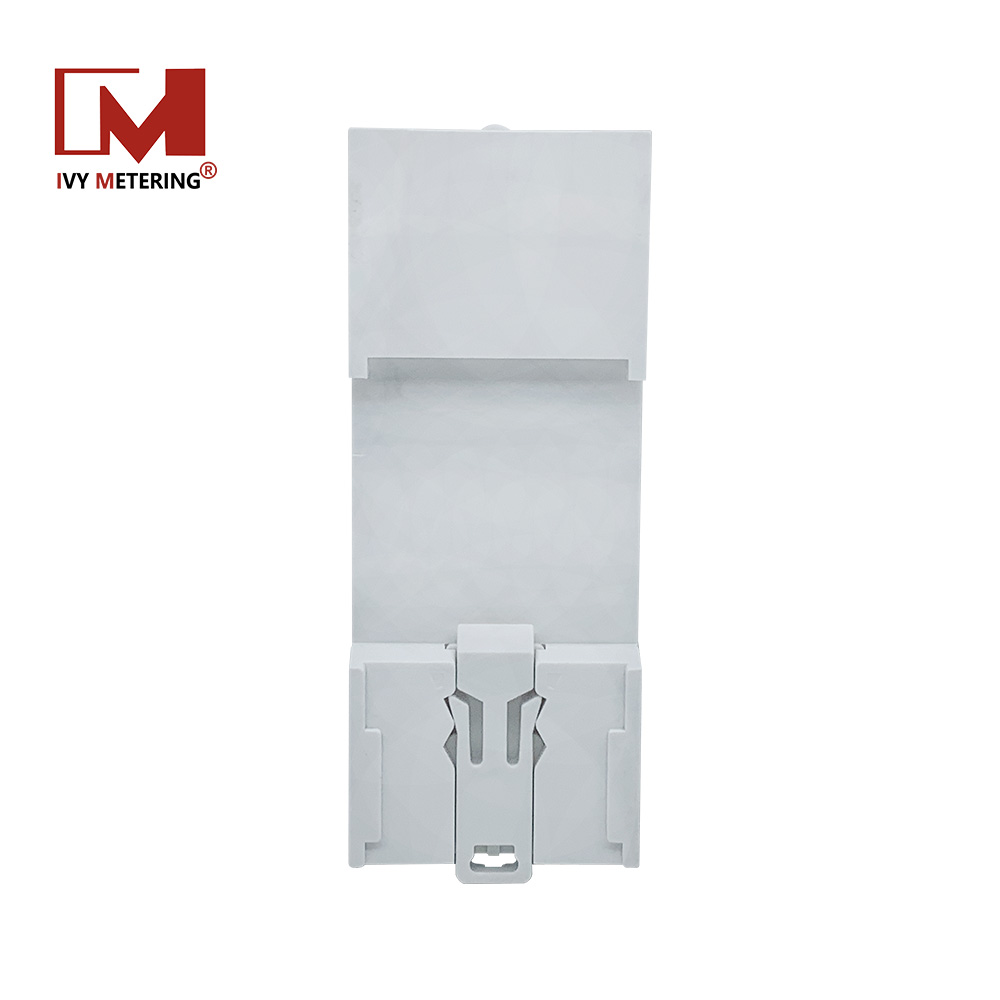

Feature: Small size, light weight, 35mm DIN rail mounting.


1.Brief introduction

EM114023 is a Single Phase Two Wires WIFI meter. It supports WIFI Communication 802.11 b/g/n Protocol. The prepayment function allows you to ‘pay as you go’ remotely. This meter’s event log allow users to record last ten times recharge’s token code and credit.This WIFI meter has built-in 100A latching relay for load control. It has level 1 credit alarm. Green LED will flash when the credit is less than 10 kWh. If the balance  is exhausted, users may borrow 10kWh power temporally via multi-function button.

Advantage:The Electric kWh Meter adopts WIFI communication, 100A latching relay breaker, microelectronics and digital processing technology to measure electric energy, accurate and reliable.

Design: Internal integrated circuit is manufactured with precision SMT technology, with good electromagnetic interference resistance and stable performance.

LCD screen: This energy meter can measure positive active energy in electric energy measurement, which is clearly displayed by LCD backlight screen. It circularly displays voltage, current, power and energy KWh.

Usage: It has low power consumption, high precision, high overload, electricity anti-stealing.

Feature: Small size, light weight, 35mm DIN rail mounting.


2.Function description

(1)Measurement of active energy, voltage and current

(2)WIFI Communication 802.11 b/g/n Protocol

(3)Prepayment function via recharge token

(4)Event log: Last 10 times recharge token code and recharge credit

(5)Anti-hoarding

(6)Built-in 100A latching relay disconnect when overload

(7)Balance credit alarm by green LED flashes

(8)Emergency credit: can borrow 10kWh power temporally



3.Specifications

M-20181006171

1 Phase Basic WIFI Meter

Standard

IEC62052-11/IEC62053-21,IEC62055-41/IEC62056-21

Rated Voltage

165-265V

Rated Current

5(60)A

Frequency

50Hz

Accuracy

Cl.1

LCD Display

LCD 5+1= 99999.9kWh

Operating Temperature

-20~70℃

Power Consumption

≤ 2W,<10VA@un

Maximum Humidity

<95%

Starting Current

0.4%Ib

Impulse Constant

1600imp/kWh

Communication

WIFI  802.11b/g/n
