Wifi Energy Meter

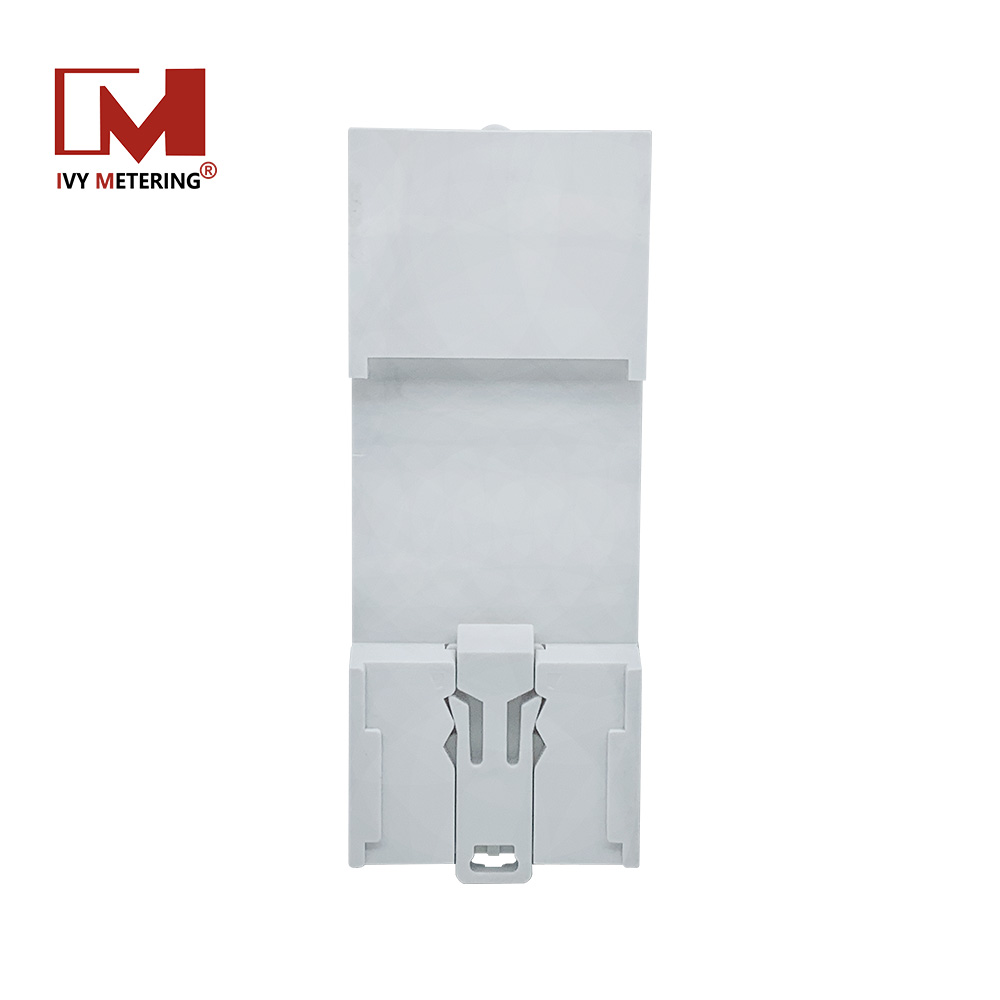

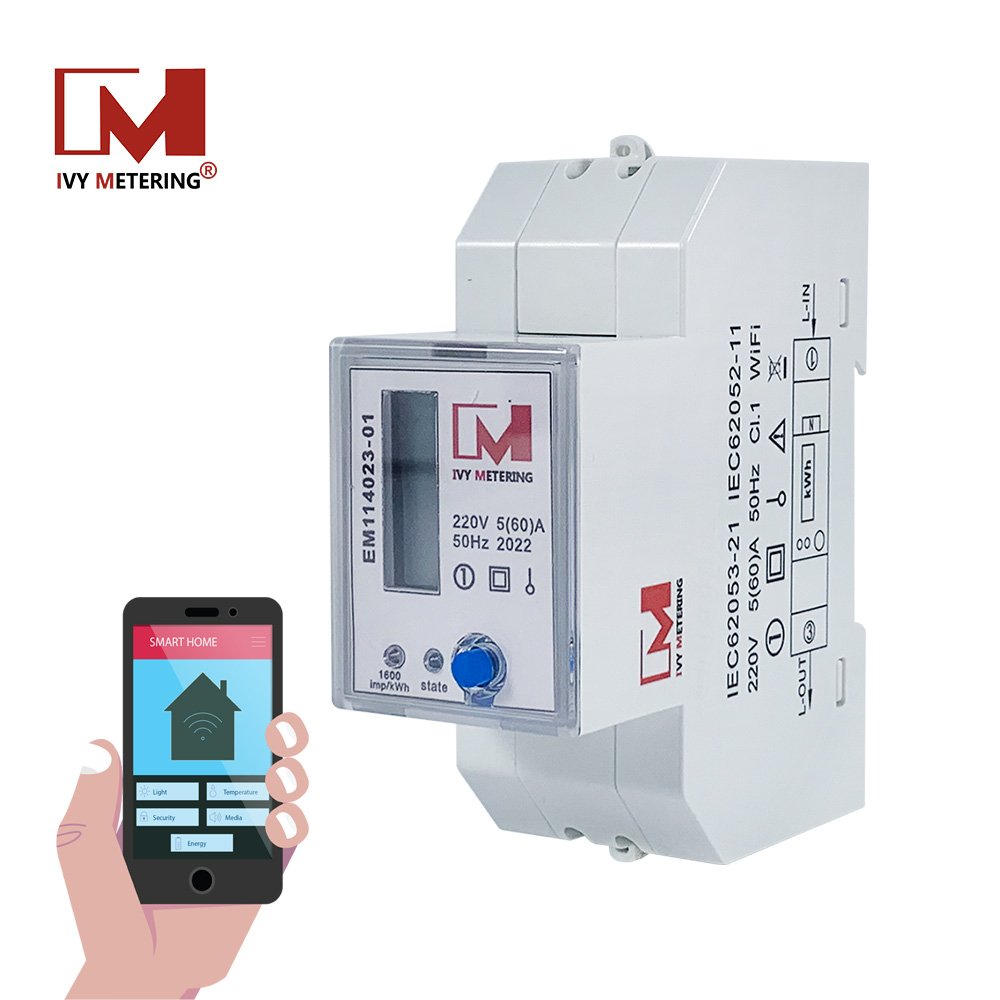

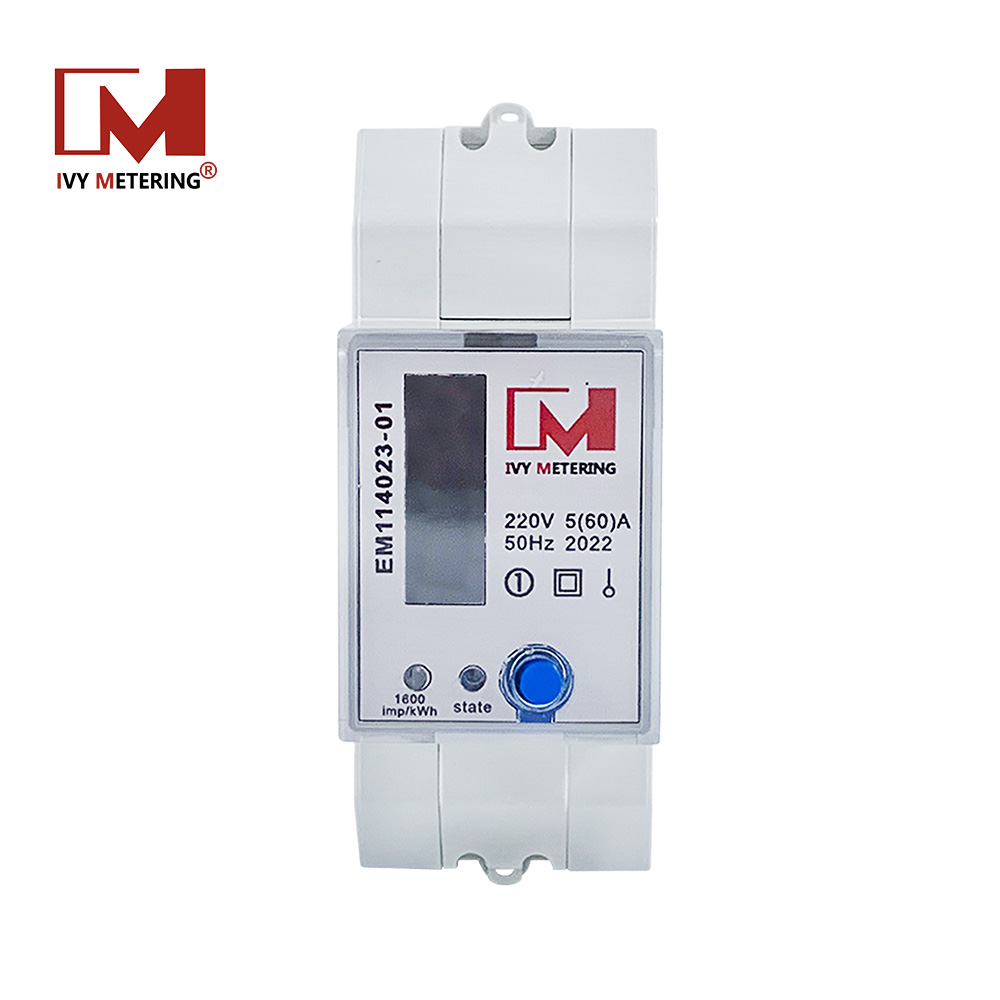

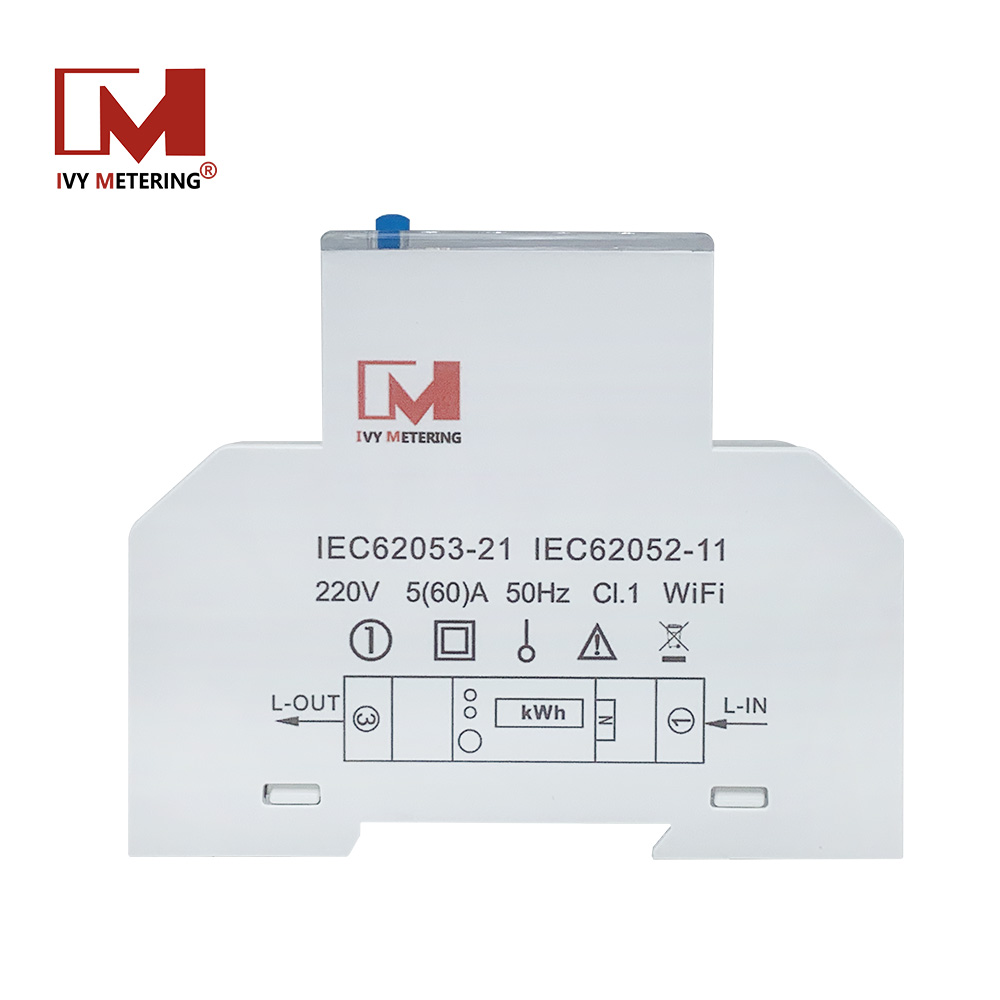

EM114023-01 WiFi Smart Energy Meter Single Phase Power Meter DIN Rail Electricity Meter Smart Home Watt Hour Meters

EM114023-01 is designed to measure single phase two wire AC active energy and variable parameters. All of its functions comply with the relative technical requirement for class 1 single phase watt-hour meter in IEC62053-21. The WIFI communication rule obeys the requirement of 802.11b/g/n.It is a long-life meter with the advantage of high stability, high over load capability, low power loss, and small volume.

1. Brief Introduction

EM114023-01 is designed to measure single-phase two-wire AC active energy and variable parameters. All of its functions comply with the relative technical requirement for class 1 single-phase watt-hour meter in IEC62053-21. The WIFI communication rule obey the requirement of 802.11b/g/n.It is a long-life meter with the advantage of high stability, high overload capability, low power loss, and small volume.



2. Functions Descriptions

(1) Measurement of remaining energy and total energy, active power, power factor, frequency, voltage, current

(2) WIFI Communication IEC62055-41 standard

(3) Green light indicator to reflect normal or abnormal network

(4) Built-in 60A Latching Relay can trip when overload or balance runs out

(5) Remote reading data or setting parameters

(6) Three modes of managing communal electricity charges: "total electricity equally divided by the number of rooms used", "total electricity divided by the proportion of electricity used by each household", and "other sharing amount according to the agreement between the landlord and the tenant”



3. Technical Parameters

Voltage

220V

Current

5(60)A

Impulse Constant

1600imp/kWh

LCD Display

LCD5+1

Temp. Range

-20~70℃

Annual Average Humidity

75%

Maximum Humidity

95%

Frequency

50Hz

Accuracy Class

Class 1

Starting Current

0.4%Ib

Power Consumption

<2W / <10VA @ Un

Network instructions

Green light indicator always on:normal network;

Green light Indicator one second on & one second off:abnormal network

Reference Standard

GB/T17215.321,IEC62055-41


4. Applicartion

Energy metering in building automation systems

Energy management

Commercial submetering

Industrial metering

Cost allocation
