1.Product Presentation

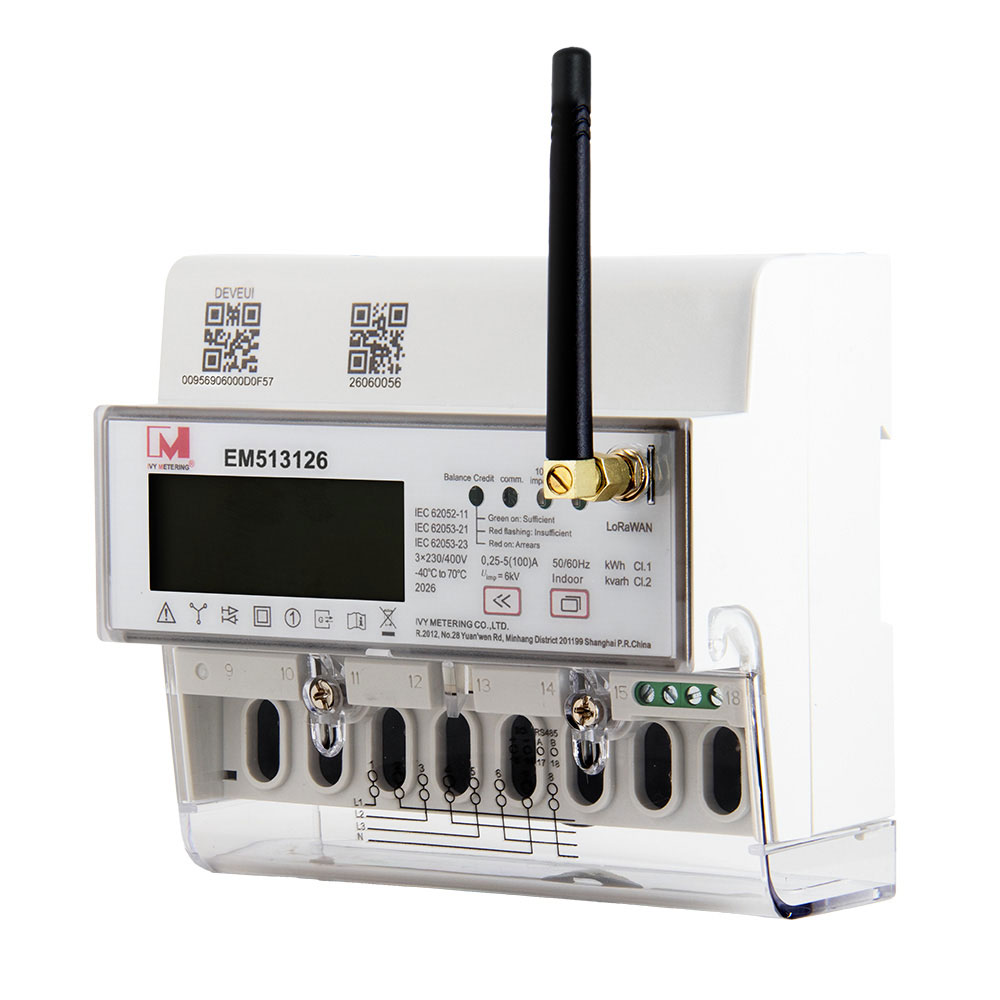

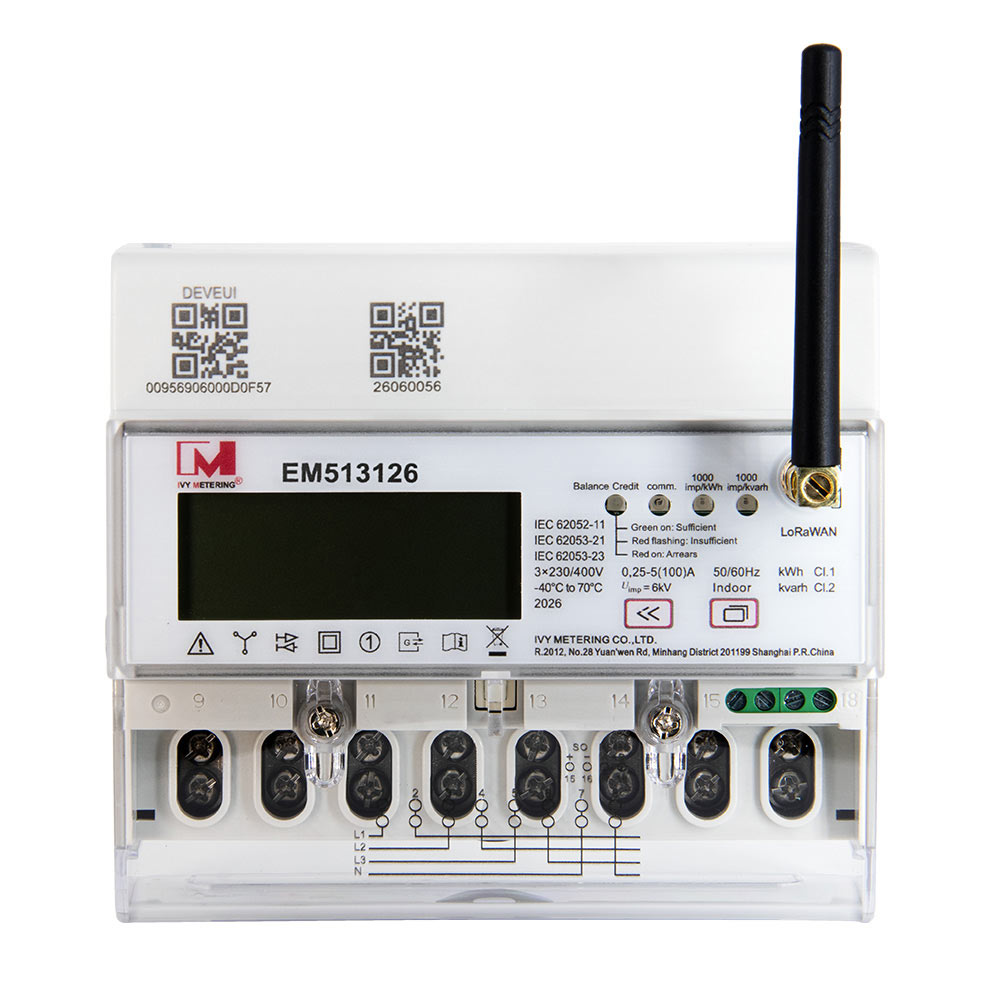

EM513126 is a three phase four wire multifunctional LoRaWAN energy meter designed for smart energy monitoring and remote meter reading applications.

This DIN rail mounted smart electricity meter supports LoRaWAN wireless communication and RS485 Modbus RTU local communication, enabling real-time energy data collection and remote management through cloud platforms or energy management systems.

The meter supports three phase four wire power supply and single phase operation, making it suitable for a wide range of residential, commercial and industrial distribution systems.

With advanced measurement functions, EM513126 can measure bidirectional active and reactive energy, power, voltage, current, frequency, power factor and demand parameters. Combined with multi-tariff management, event recording and remote alarm functions, it provides an efficient solution for smart buildings, energy monitoring systems and IoT-based power management.

Three Phase LoRaWAN Energy Meter with RS485 Modbus for Remote Meter Reading

2.Technical Parameters

Product Name	EM513026
Ref. voltage	3×230/400V (±20%)
Ref. current	0.25-5(100)A
Impulse constant	1000imp/kWh
LCD display	LCD6+2
Operation temp.	-40~+70℃
Relative humidity	<95%
Ref. frequency	50Hz
Accuracy class	Class.B
Starting current	0.4%/Ib(CI.1)
Load control	Built-in A magnetic latching relay
Power consumption	≤ 1W,<10VA
Reference standard	EN 50470-3:2022; EN IEC 62052-11-2021 A11-2022
Communication	LoRaWAN, RS485
Frequency Band	EU863-870 MHz
LoRa Antenna	SMA Socket (Based/Stick Type)

3.Dimensions and wiring diagram

3 Phase Lorawan Energy Meter with Built in Relay Remote Control 80A 100A MID EU868mMHz

4.Applications

Smart Buildings

Commercial Energy Monitoring

Residential Electricity Management

Industrial Power Distribution

Solar Energy Monitoring Systems

Energy Management Systems (EMS)

IoT Smart Grid Applications

Sub-metering Applications

5.Function Description

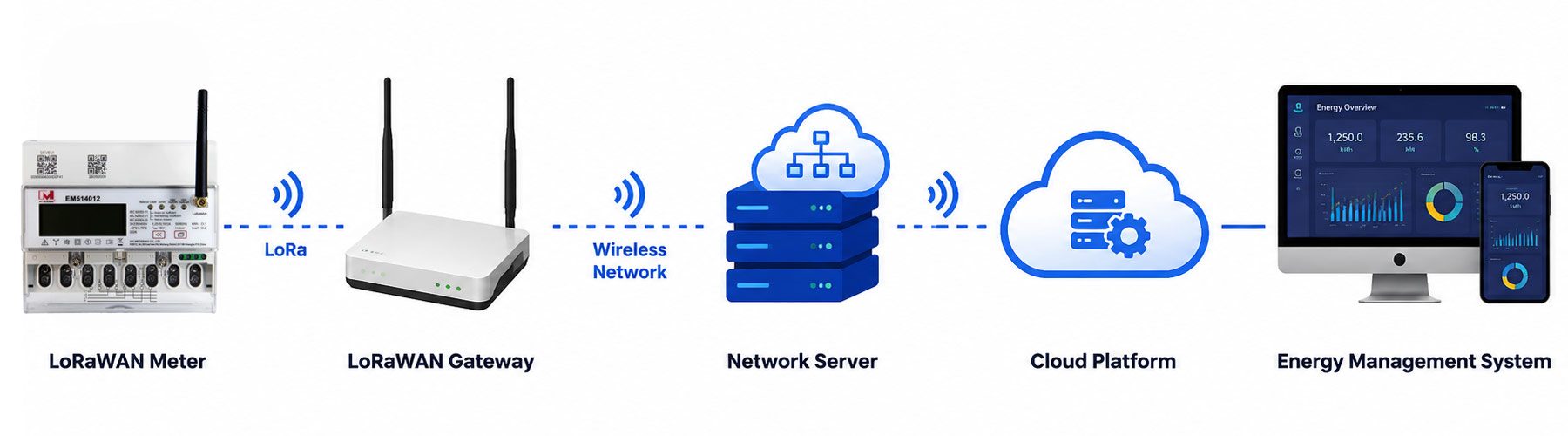

LoRaWAN Remote Communication & Smart Meter Reading

Supports LoRaWAN wireless communication for long-distance remote data transmission.

Enables remote meter reading without additional wiring.

Supports periodic active reporting to cloud platforms.

Reporting content and communication intervals can be configured according to application requirements.

Suitable for IoT energy monitoring and smart building management systems.

Multi Function Energy Measurement

The meter provides comprehensive electrical parameter measurement:

Forward and reverse active energy measurement

Forward and reverse reactive energy measurement

Active power measurement

Voltage measurement

Current measurement

Frequency measurement

Power factor measurement

Maximum demand measurement

Bidirectional Energy Measurement

Supports both import and export energy measurement.

Measures energy flow direction accurately.

Suitable for applications with distributed energy systems such as:

Solar PV systems

Energy storage systems

Smart grids

Renewable energy monitoring

Multi Tariff Energy Management

Supports 4 tariff rates.

Supports up to 8 time periods.

Supports:

Holiday tariff settings

Weekend tariff settings

Helps optimize electricity cost management in commercial and industrial applications.

Intelligent Alarm & Event Recording

Supports multiple alarm functions:

Over current alarm

Over voltage alarm

Frequency deviation alarm

Power outage event

Terminal cover detection

Meter cover detection

Over Current Protection Monitoring

Users can define over current threshold values.

When measured current exceeds the preset limit, the meter immediately triggers an alarm.

If over current continues, repeated alarms will be avoided.

A new alarm will only be triggered after current returns to normal and exceeds the threshold again after the recovery time.
