Looking for basic but precise 80A DIN rail meters with IR or RS485? Our new models offer Class 1 accuracy at highly competitive prices. Let’s check EM519 series together.
1.Common Features (Shared by all EM519167, EM519168, EM519171, and EM519173):
All four models in the EM5191 series share the following fundamental characteristics:
· Voltage: 3x230/400V
· Current: 5(80)A
· Accuracy Class: Class 1, ensuring high precision in energy measurement.
· Metering Functionality: Supports bi-directional active energy measurement, accurately recording both imported and exported energy.
· MID Compliance: Meets the latest MID (Measuring Instruments Directive) standards, suitable for legal metrology and billing purposes within relevant regions.
· Installation: Designed for easy and standard DIN rail mounting.
2.Key Differences Between the Models:
The primary distinctions between these models lie in their communication interfaces and additional features:

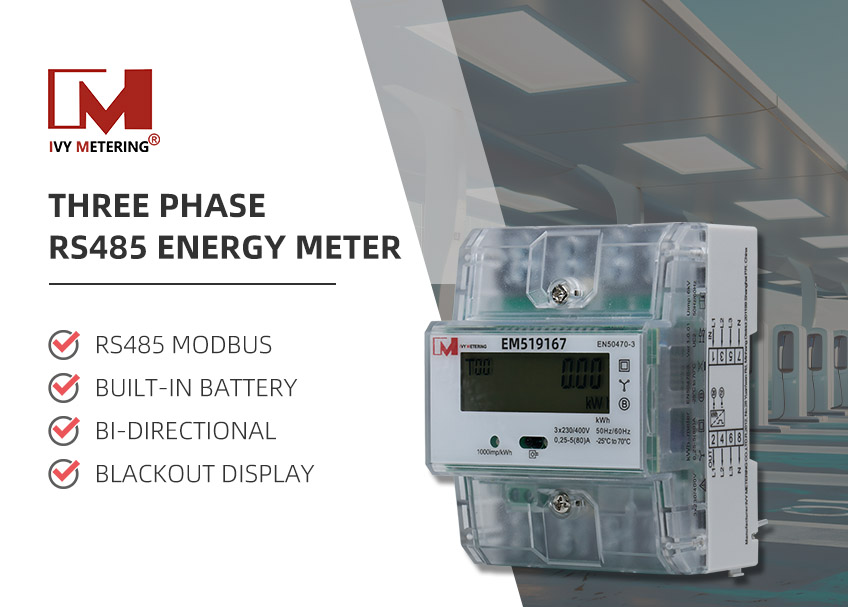

EM519167:
Communication Interface: Equipped with RS485 communication for remote data reading and system integration.
Additional Features: Includes a built-in battery to power the display during power outages (power outage display) and a backlight for enhanced visibility in various lighting conditions.
EM519168:
Communication Interface: Features an Infrared (IR) port for local, direct communication and data reading.
Additional Features: Includes a built-in battery for power outage display and a backlight.
EM519171:
Communication Interface: Equipped with an Infrared (IR) port for local communication.
Additional Features: Does not include a built-in battery for power outage display or a backlight.
EM519173:
Communication Interface: Equipped with RS485 communication for remote data reading and system integration.
Additional Features: Does not include a built-in battery for power outage display or a backlight.
In Summary:
The EM519167 and EM519173 offer RS485 communication for remote monitoring, while the EM519168 and EM519171 provide an IR port for local data access. Additionally, the EM519167 and EM519168 include a built-in battery for power outage display and a backlight, features not present in the EM519171 and EM519173 models. They are Ideal for straightforward metering applications. Contact us for budget-friendly IR and RS485 energy meter quotes.
No Distributor or middleman, Factory-Direct!!!
