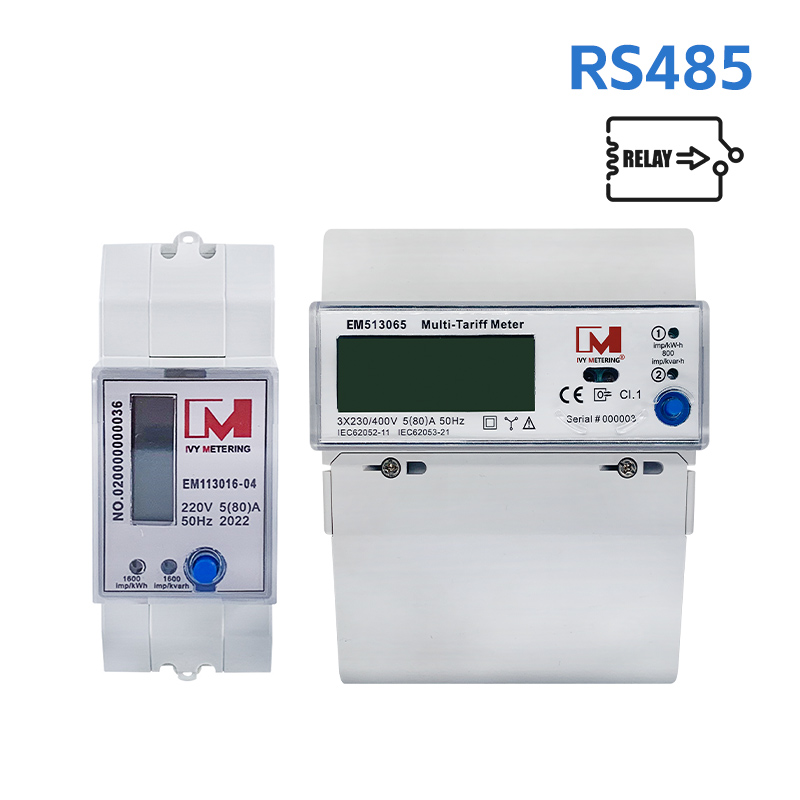

EM113016-04 is a single phase multi-functional DIN Rail meter with relay.It support RS485 communication, remote reading, remote control, automatic switching, din rail installation, light weight, beautiful appearance, IEC standard compliant etc. This energy Meters are commonly used in Control Panels and Motor Control Centers. They provide a visual indication of the current draw, voltage and power factor of the various motors.In addition, they also monitor the motor power which is a linear representation of the actual load on a motor. When tied to a digital output or when read via a communication bus, they are able to provide alarms indicating plugged filters, belt slippage and excess load in general. Also, For all production machinery that manufacture or package product, Energy Consumption is part of the equation in the final cost of the product. Such a din meter can be used in the machine to measure and provide the energy usage information to the controller. Also, monitoring the power profile is an excellent method of obtaining a performance and efficiency profile of the machinery. This information, when examined over a period of time can identify equipment problems, material shortages or poor shift/operator performance.
1. Brief introduction
EM113016-04 is a single phase multi-functional DIN Rail meter with relay.It support RS485 communication, remote reading, remote control, automatic switching, din rail installation, light weight, beautiful appearance, IEC standard compliant etc. This energy Meters are commonly used in Control Panels and Motor Control Centers. They provide a visual indication of the current draw, voltage and power factor of the various motors.In addition, they also monitor the motor power which is a linear representation of the actual load on a motor. When tied to a digital output or when read via a communication bus, they are able to provide alarms indicating plugged filters, belt slippage and excess load in general. Also, For all production machinery that manufacture or package product, Energy Consumption is part of the equation in the final cost of the product. Such a din meter can be used in the machine to measure and provide the energy usage information to the controller. Also, monitoring the power profile is an excellent method of obtaining a performance and efficiency profile of the machinery. This information, when examined over a period of time can identify equipment problems, material shortages or poor shift/operator performance.
2.Function description
(1)Measurement of active and reactive energy, voltage, current, frequency, power factor, demand
(2)RS485 Communication，with a RS485 communication interface to host computer for data exchange, the power meter comply with the dl/t645-2007 and Modbus-RTU protocols.
(3)LCD display 5+1
(4)IP51 indoor protection
(5)Two data display modes: automatic scroll display (5s interval) and by pressing buttons
(6)Built-in latching relay for overload protection
(7)Overload alarm by LED backlight

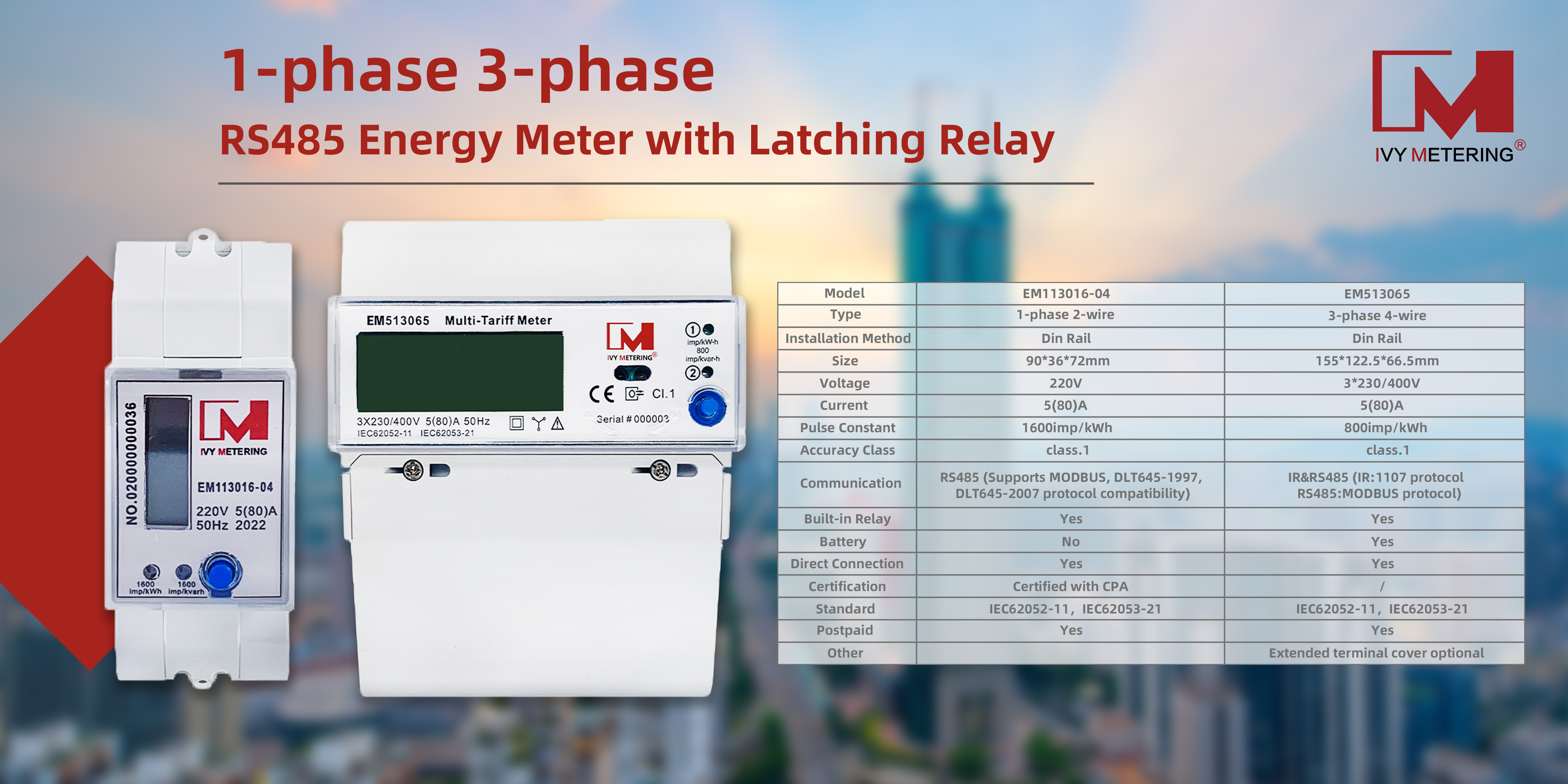

3.Specifications
Voltage | 220V |
Current | 5(80)A |
Impulse Constant | 1600imp/kWh |
LCD Display | LCD5+1 |
Temp. Range | -20～70℃ |
Annual Average Humidity | 75% |
Maximum Humidity | 95% |
Frequency | 50Hz |
Accuracy Class | Cl.1.0 |
Starting Current | 0.4%Ib=20mA |
Power Consumption | ≤0.4W / ≤8VA @ Un |
Communication | RS485 |
Protocol | MODBUS,DLT645-1997,DLT645-2007 |
4. Application
