RS485 Modbus Meter

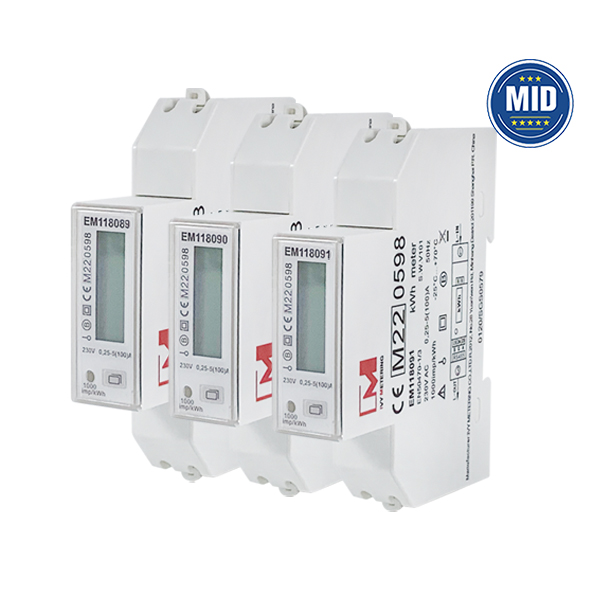

EM118089 EM118090 EM118091 1 Phase RS485 Bidirectional Solar Energy Meter

The EM118089-118091 series is a 100A single-phase rail-mounted meter, and is also a multi-functional energy monitoring meter.It is only 18mm wide, supports RS485 communication, complies with MID certificate & DIN EN 50022 standards, and is suitable for domestic and commercial power distribution systems. 1-phase, 2-wire, tariff,  MID compliance. EM118089/90/91 is electronic, compliant with the MID Directive, single-phase electricity meter, designed for measurement in a 2-wire direct system.


1. Brief introduction

The EM118089-118091 series is a 100A single-phase rail-mounted meter, and is also a multi-functional energy monitoring meter.It is only 18mm wide, supports RS485 communication, complies with MID certificate & DIN EN 50022 standards, and is suitable for domestic and commercial power distribution systems.

1-phase, 2-wire, tariff,  MID compliance. EM118089/90/91 is electronic, compliant with the MID Directive, single-phase electricity meter, designed for measurement in a 2-wire direct system.


2. Features

(1)0.25(30A/32A/40A/45A/50/60/80/100A), 230V

(2)Active & Reactive, Forward & Reverse Measurement

(3)RS485 Communication, SO Output

(4)Accuracy Class: Class B

(5)LCD Backlight, Multi-tariff, CE-MID/IEC, CE-LVD, CE-EMC Compliant

(6)The lowest voltage can reach 40% of the standard voltage (EM118090)

(7) Wide applications

EM118089 EM118090 EM118091 1 Phase RS485 Bidirectional Solar Energy Meter


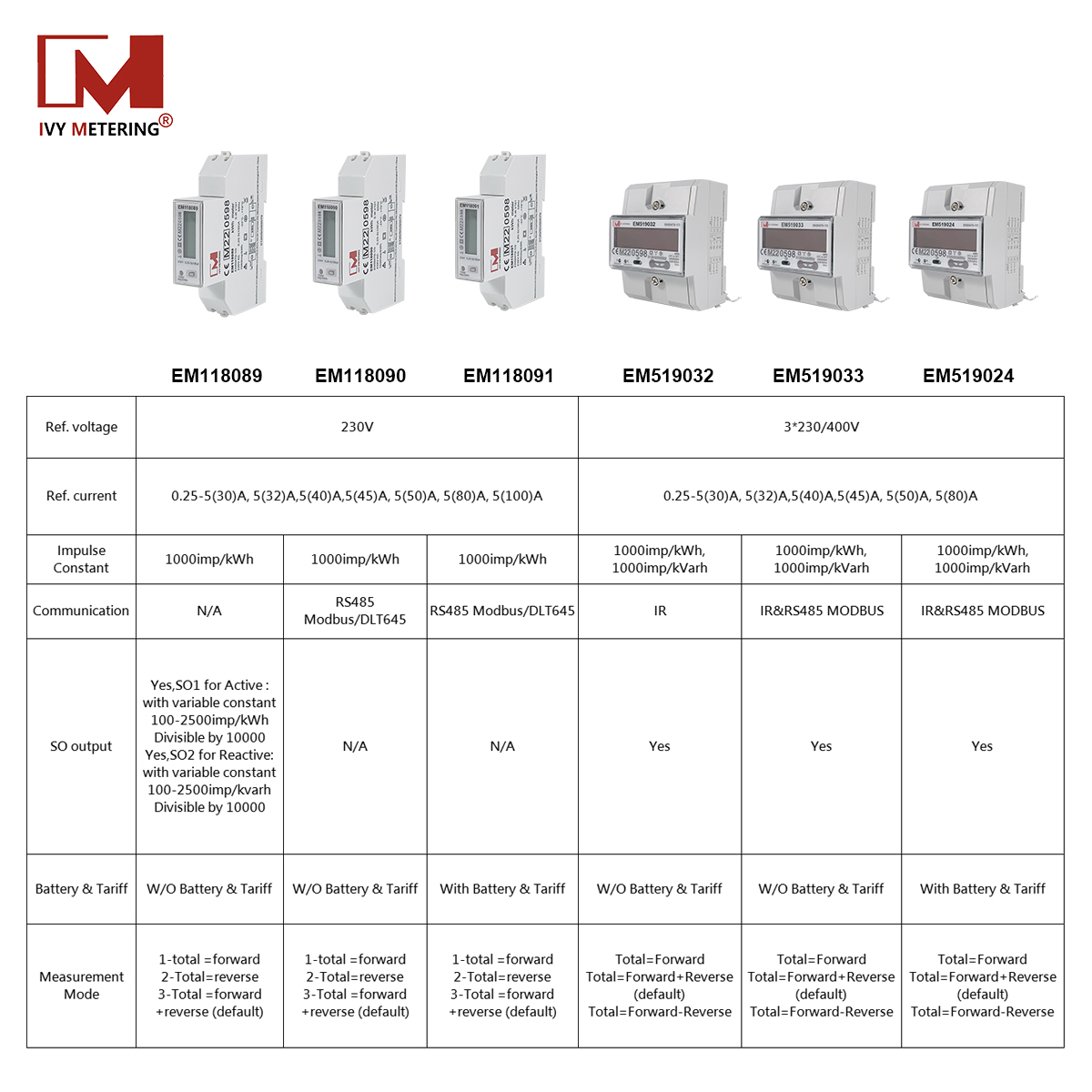

3. Specifications

Type

EM118089

EM118090

EM118091

Impulse Constant

1000imp/kWh

1000imp/kWh

1000imp/kWh

Communication

N/A

RS485 Modbus/DLT645

RS485 Modbus/DLT645

       Baud Rate

N/A

9600\19200\38400\115200

9600\19200\38400\115200

SO output

Yes,SO1 for Active :

with variable constant 100-2500imp/kWh

Divisible by 10000

N/A

N/A

Yes,SO2 for Reactive:

with variable constant 100-2500imp/kvarh

Divisible by 10000



Pulse Width

SO:100-1000:100ms

SO:1000-2500:30ms

N/A

N/A

Backlight

Blue

Blue

Blue

Li-Battery

N/A

N/A

YES

Multi-tariff

N/A

N/A

YES

Measurement Mode

1-total =forward

2-Total=reverse

3-Total =forward +reverse (default)

4-Total=Forward-Reverse

1-total =forward

2-Total=reverse

3-Total =forward +reverse (default)

4-Total=Forward-Reverse

1-total =forward

2-Total=reverse

3-Total =forward +reverse (default)

4-Total=Forward-Reverse

Default  Setting

1000imp/kWh,100ms

1000imp/kvarh,100ms

9600/NONE /8/1

9600/NONE /8/1


4. About Bidirectional Metering

EM118089 EM118090 EM118091 Bidirectional Bi-directional Solar Energy Meter
