Prepaid STS Meter

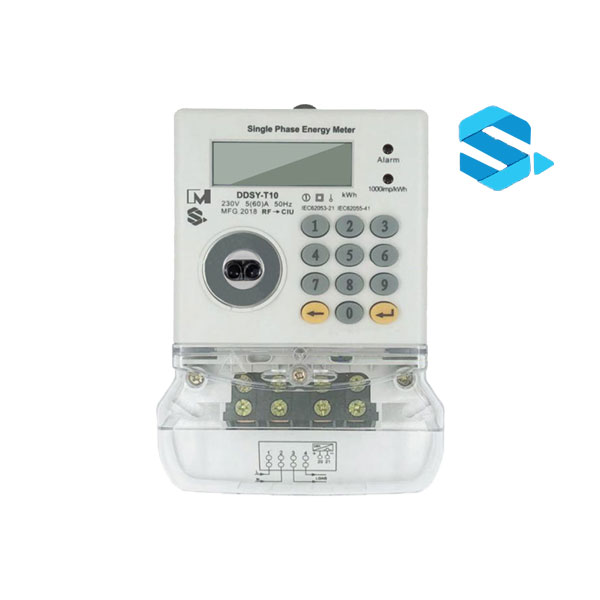

EM124033 IR RF Wire Communication STS Prepayment Meter with in-home Display

EM124033 is a Single Phase STS Single Phase Smart Prepayment Meter adopts the latest edition STS technology. Then STS smart meter becomes more robust, reliable, modern and innovative. Additionally, purchased kWh transmits by using a 20 digits code&STS encryption algorithm protocol. In this way, it enables to automatically shut off power supply in the event of fraudulent manipulation. And the events include opening of the terminal cover or exceeding of power, etc.Meanwhile, it supports both Standard Transfer Specification (STS) and Currency Transfer Specification (CTS) . When available credit exhausted, meter will disconnect power supply immediately and meters must not have the “emergency credit” function. It switches between postpaid and prepayment mode, and it offers Customer Interface Unit (CIU) as an optional device. With plug-in&play-out communication module among PLC, RF, GPRS or 3G, it realizes advanced AMI features.

1. Brief Introduction

EM124033 is a Single Phase STS Single Phase Smart Prepayment Meter adopts the latest edition STS technology. Then STS smart meter becomes more robust, reliable, modern and innovative. Additionally, purchased kWh transmits by using a 20 digits code&STS encryption algorithm protocol. In this way, it enables to automatically shut off power supply in the event of fraudulent manipulation. And the events include opening of the terminal cover or exceeding of power, etc.Meanwhile, it supports both Standard Transfer Specification (STS) and Currency Transfer Specification (CTS) . When available credit exhausted, meter will disconnect power supply immediately and meters must not have the “emergency credit” function. It switches between postpaid and prepayment mode, and it offers Customer Interface Unit (CIU) as an optional device. With plug-in&play-out communication module among PLC, RF, GPRS or 3G, it realizes advanced AMI features.


2. Function Description

(1) Measurement of active energy, voltage and current

(2) IR Communication (MCU); RF Wire Communication (between MCU and CIU)

(3) Prepayment function via token and CIU keypad

(4) Record last 50 times’ record events

(5) Anti-tamper function by open cover detection

(6) Overload protection by built-in 80A relay

(7) Page turning by pressing buttons

(8) Low balance alarm and emergency alarm

(9) Data encryption process complies with international standard IEC62055



3. Technical Parameters

M-20210607002

Single Phase Split Type Meter

Voltage

230V

Current

5(60) A

Impulse constant

1000imp/kWh

Display

LCD 6+2

Temperature range

-20~70℃

Annual average humidity

75%

Maximal Humidity

95%

Frequency

50Hz

Accuracy class

1.0

Starting current

0.4%Ib

Power consumption

≤10VA  ≤1W

Standard

IEC62052-11,IEC62053-21,IEC62056-21,IEC62055-41

Communication

IR  IEC62056-21A Mode


Function Description
