Bidirectional energy meter

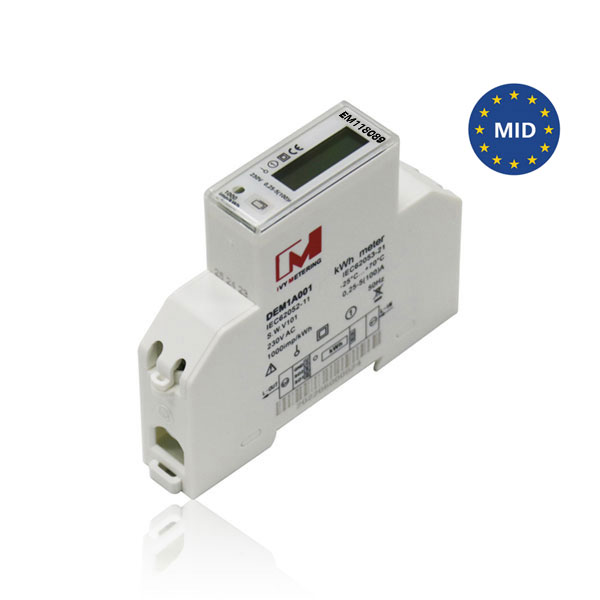

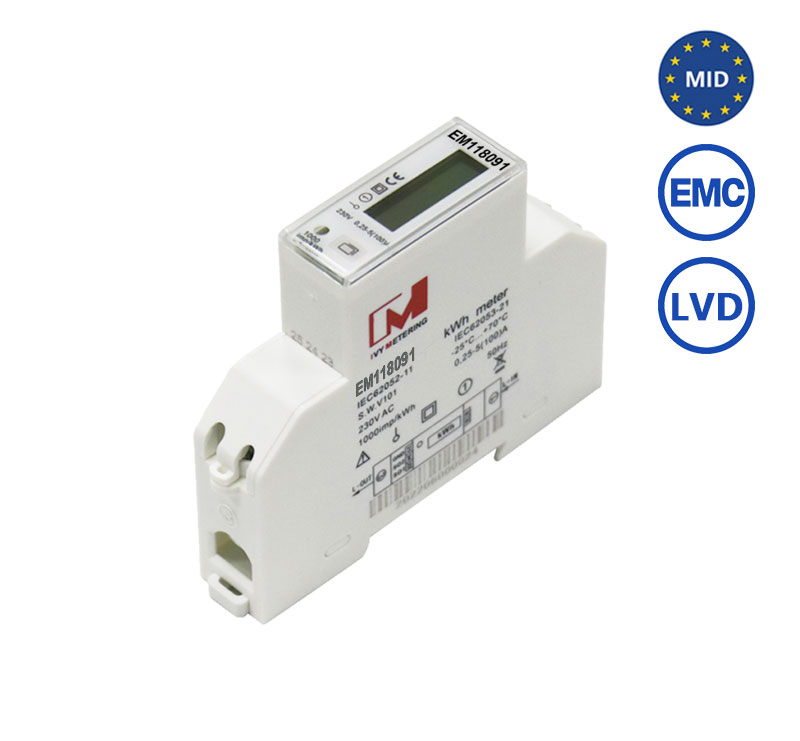

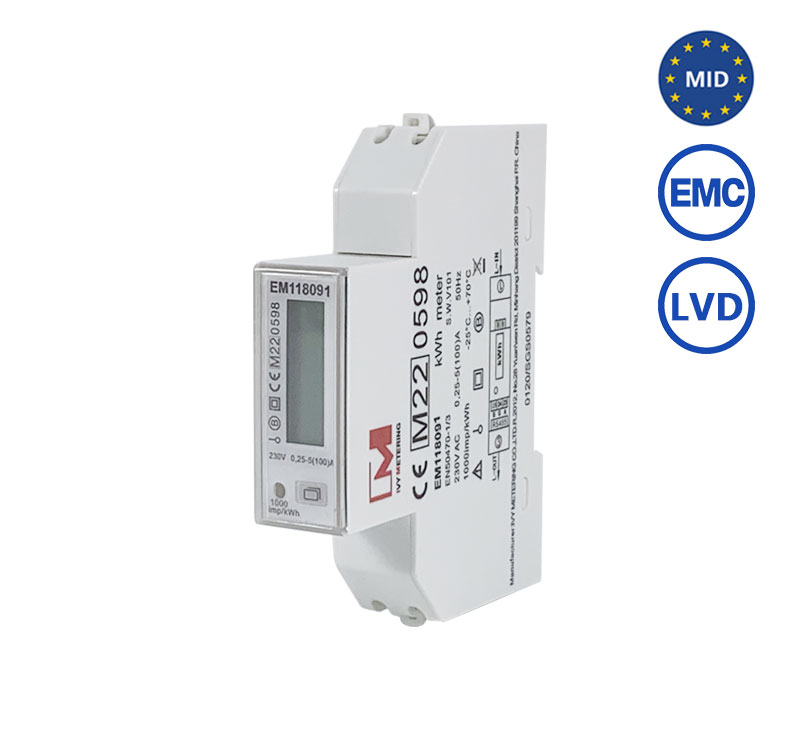

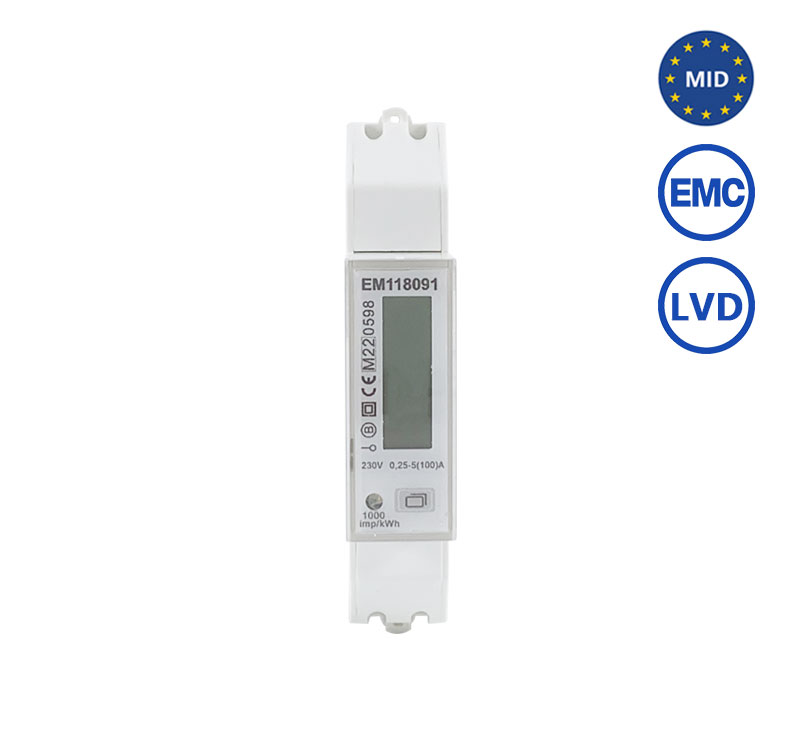

Single Phase AC Modbus Bidirectional Energy Meter With RS485 EM118089/90/91

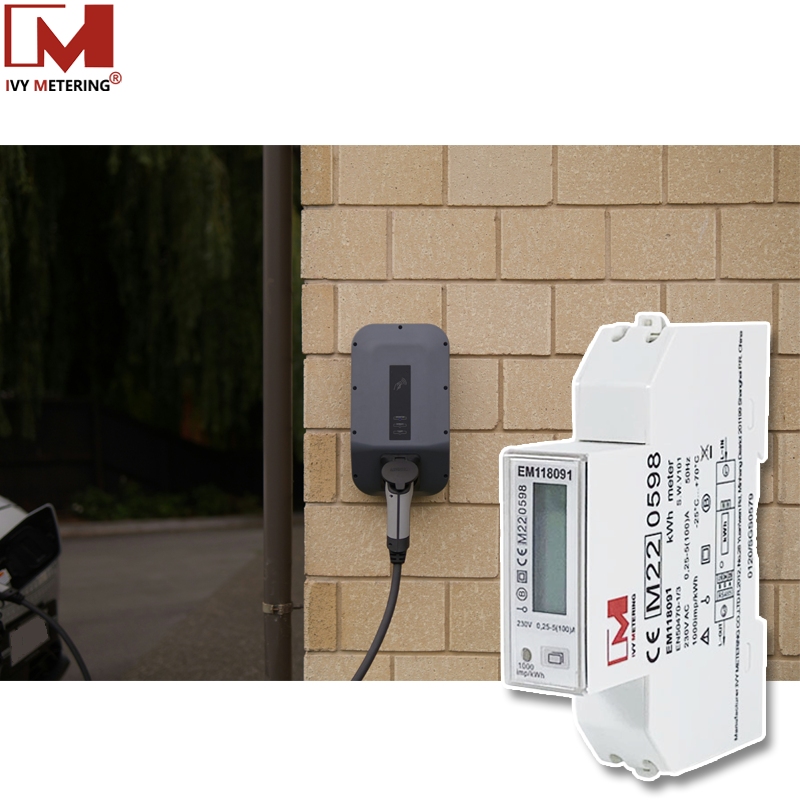

"EM118089/90/91" series meters are designed for DIN-Rail installation, suitable for grid-connected PV solar energy metering projects and EV charging metering solutions, the meters can measure and display various important power parameters, and can be passed through The RS485 communication port reads the data of the meter in real time. The meter has passed the approval of MID, EMC, and LVD. The bi-directional energy measurement makes the meter an excellent choice for solar metering.

1. Introduction

"EM118089/90/91" series meters are designed for DIN-Rail installation, suitable for grid-connected PV solar energy metering projects and EV charging metering solutions, the meters can measure and display various important power parameters, and can be passed through The RS485 communication port reads the data of the meter in real time. The meter has passed the approval of MID, EMC, and LVD. The bi-directional energy measurement makes the meter an excellent choice for solar metering.


2. Function description

(1)0.25(30A/32A/40A/45A/50/60/80/100A),

(2)Wide voltage range, 92V-230V, The lowest voltage can reach 40% of the standard voltage (EM118090)

(3)Active & Reactive, negative & positive Measurement

(4)RS485 Communication, SO Output

(5)Accuracy Class: Class B

(6) LCD Backlight, Multi-tariff, MID Approved, CE-EMC CE-LVD Compliant

(7) Bidirectional Metering

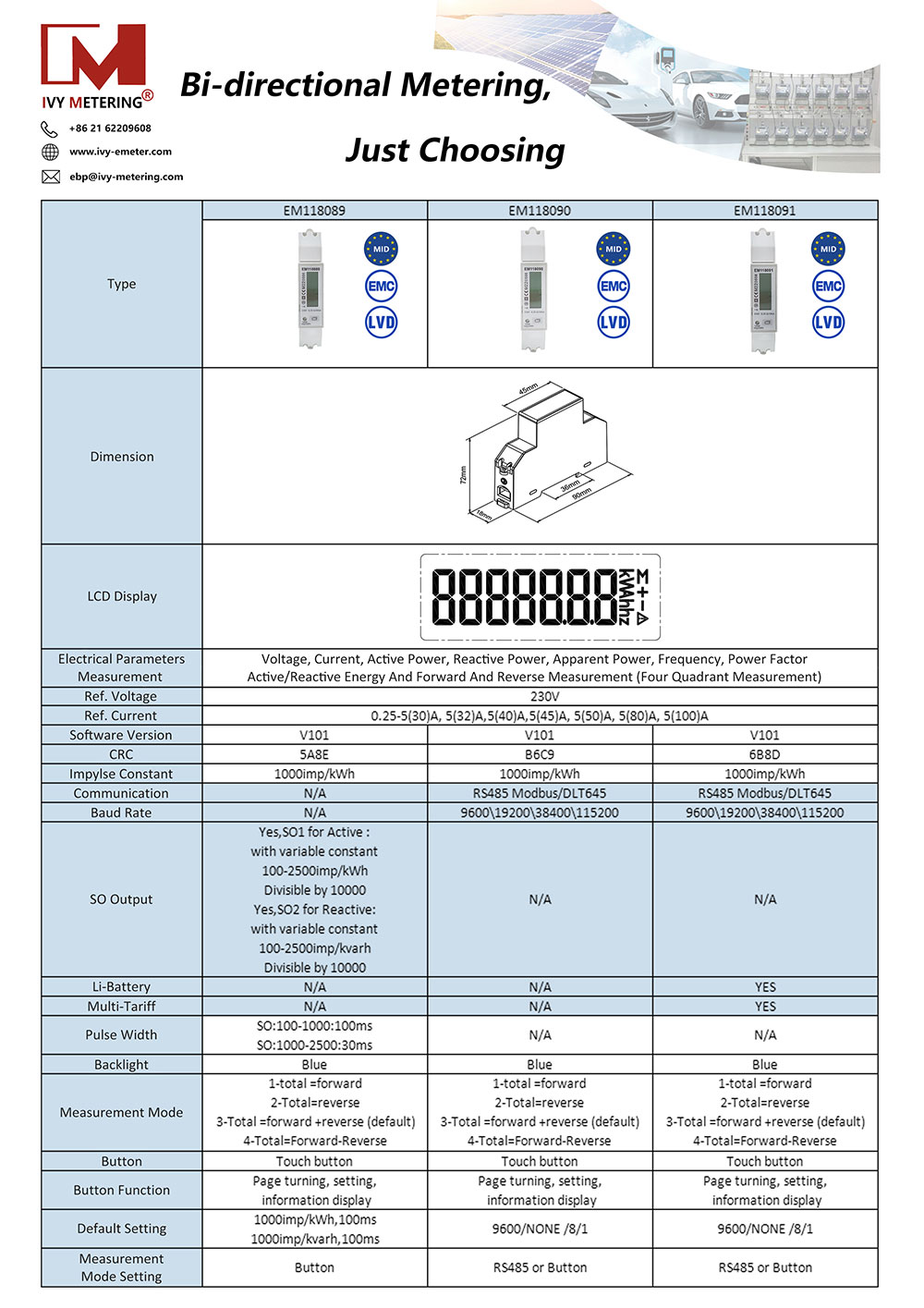

3. Specifications

Single Phase AC Modbus Bidirectional Energy Meter With RS485 EM118089/90/91
