3 Phase Energy Meter

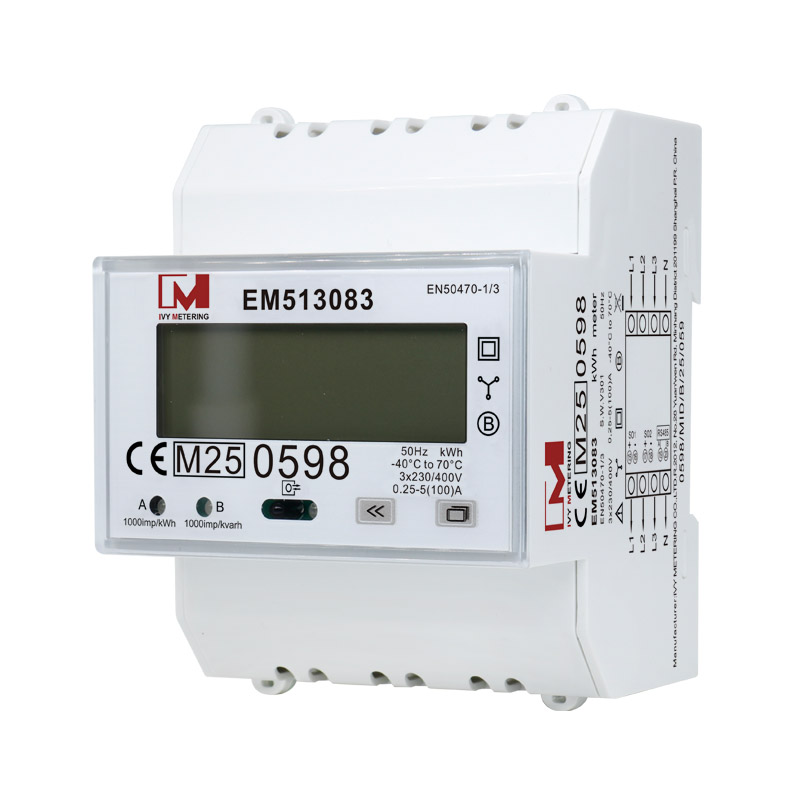

EM513082 MID 3 Phase RS485 Modbus Multi Tariff Energy Meter With For EV Charging System

EM513082

Multi-measurement: kWh, W, V, A, PF, Hz, etc.

Bi-directional Measurement

RS485 Modbus/DLT645

Multi-Tariff Function

MID Certificate

Backlight Display

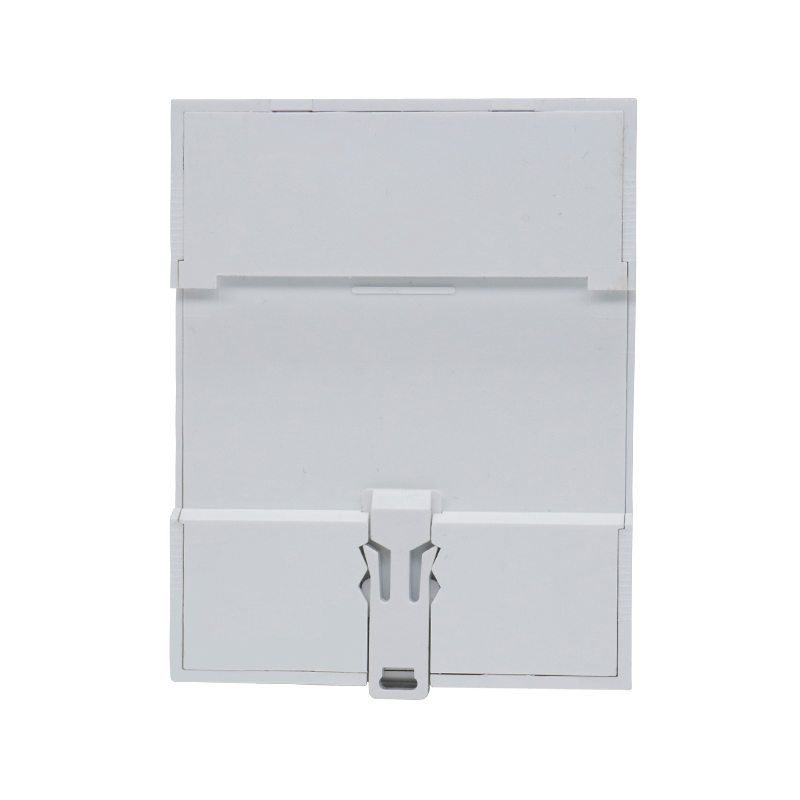

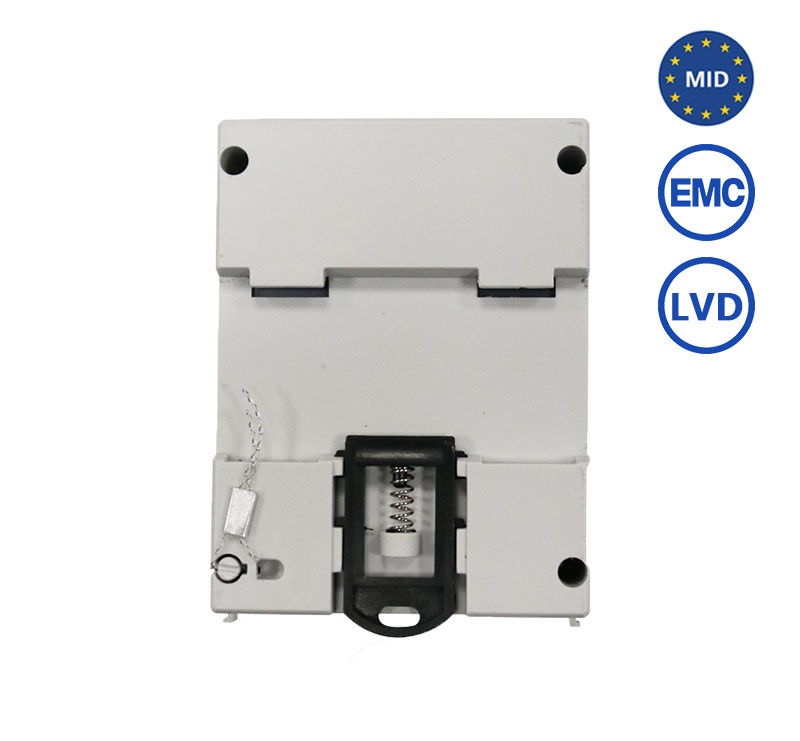

Din Rail Mounted

SO Output

3P4W


1. Brief introduction

EM513082 is a Digital Power Meter works directly connected to a maximum load 100A AC circuit. This meter has been MID B&D Certified by SGS UK, This 100A Modbus (MID Certified) Three phase digital Energy Meters with operating Tariffs and SO outputs proportional to active/reactive or imported/exported energy for solar bi-directional metering and vehicle charging.


2. Key Features

    Bidirectional Energy Measurement

        Supports import and export energy measurement for:

        Solar PV systems

        Energy storage systems

        EV charging applications



    RS485 Modbus Integration

        Local communication

        Easy connection with EMS/BMS systems

        Compatible with industrial monitoring systems


    Four-quadrant power metering

        T1-T4 forward active power consumption

        T1-T4 forward reactive power consumption

        T1-T4 reverse active power consumption

        T1-T4 reverse reactive power consumption

        T1-T4 total active power consumption

        T1-T4 total reactive power consumption

        T1-T4 quadrants reactive power consumption


3. Specification

Voltage

3*230V/400V

Current

0.25-5(100)A

Starting Current

0.4%Ib

Power Consumption

≤1.5W / <10VA

Accuracy Class

Class B

Frequency

50Hz

Impulse Constant

1000imp/kWh, 1000imp/kVarh

LCD Display (Backlight)

LCD6+2

Operation Temp. Range

-20~70℃ (Non Condensing)

Annual Average Humidity

85%

Max Humidity

95%

Reference Standard

EN50470-1/3

SO Output

Yes

Communication

IR (EN62056(IEC1107)Protocol)

RS485(Modbus)

Li-battery

Yes

Tariff

Yes


4.Applications

Industrial Energy Monitoring

Used for factories, workshops and industrial facilities to monitor electricity consumption and improve energy efficiency.

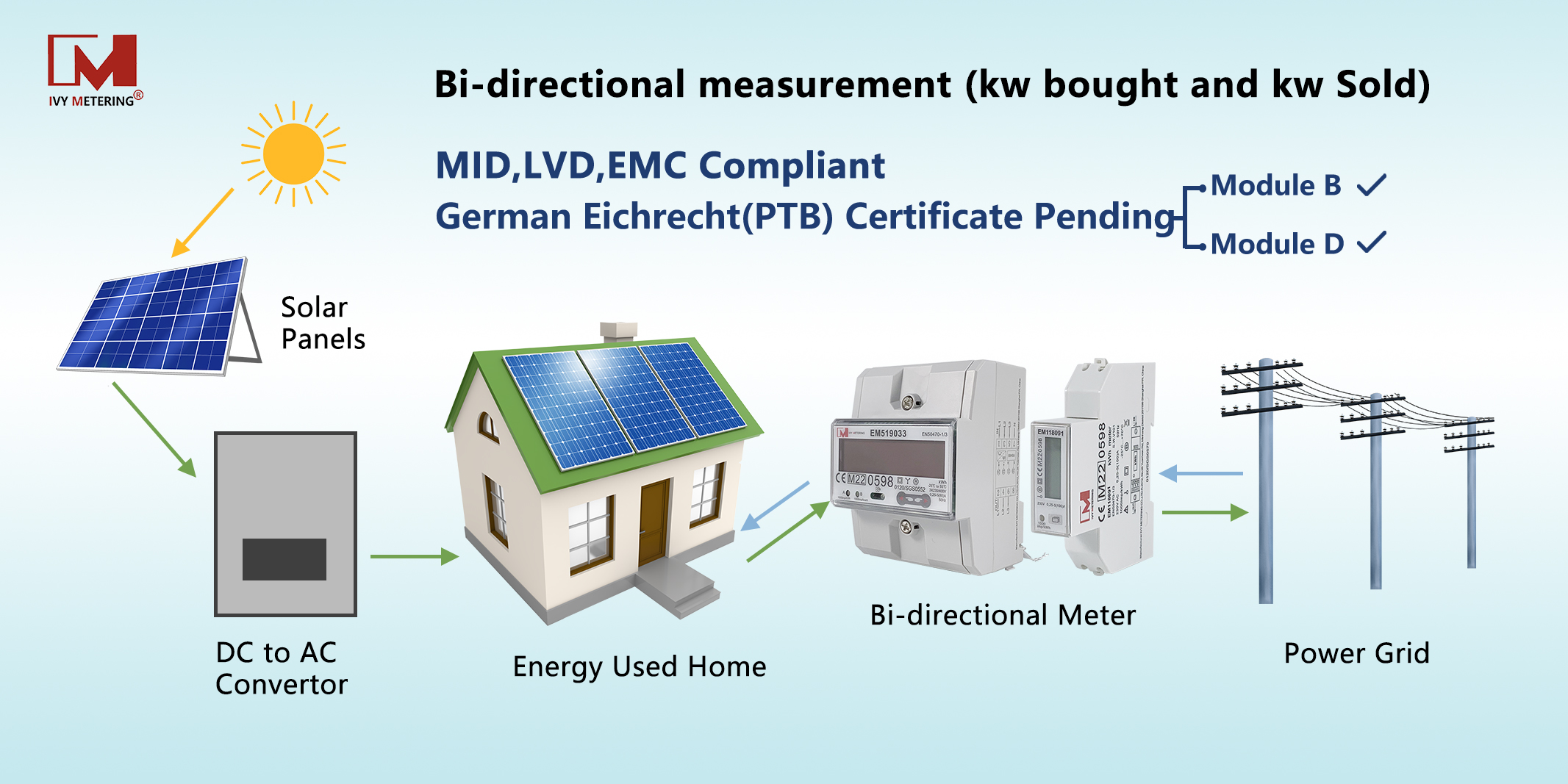

Solar PV Monitoring

Measures imported and exported energy in grid-connected photovoltaic systems.

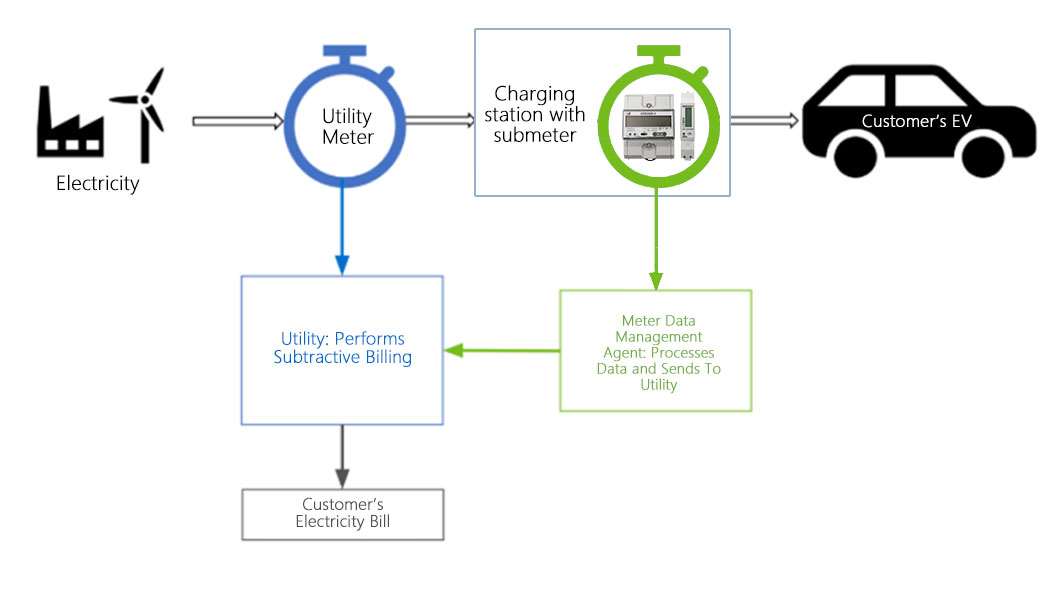

EV Charging Infrastructure

Provides accurate energy measurement for EV charging stations and billing systems.


Smart Buildings

Supports remote monitoring and sub-metering applications.

EM513082 MID 3 Phase RS485 Modbus Multi Tariff Energy Meter With For EV Charging System
