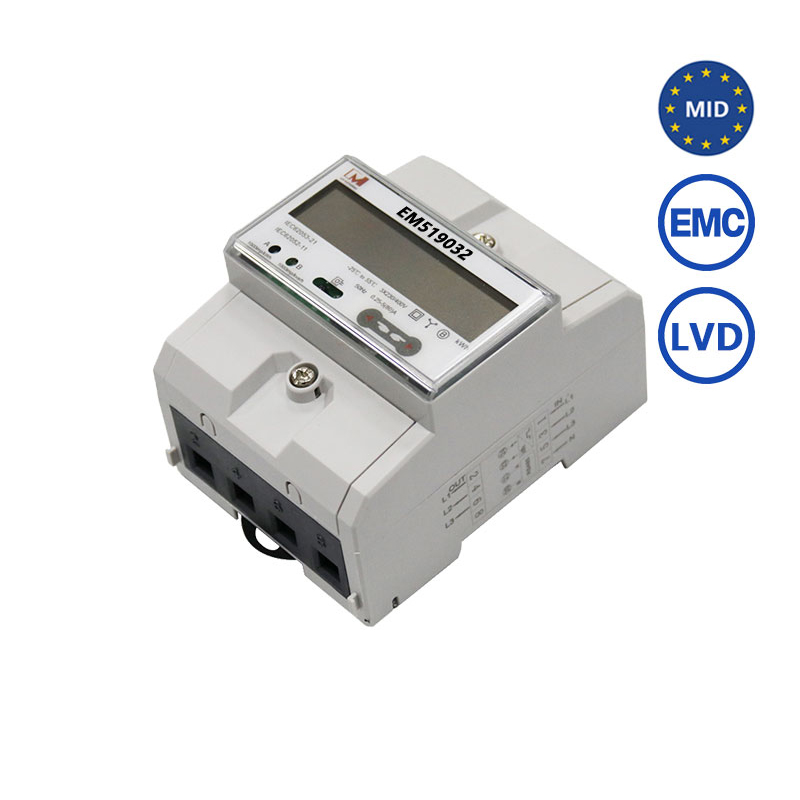

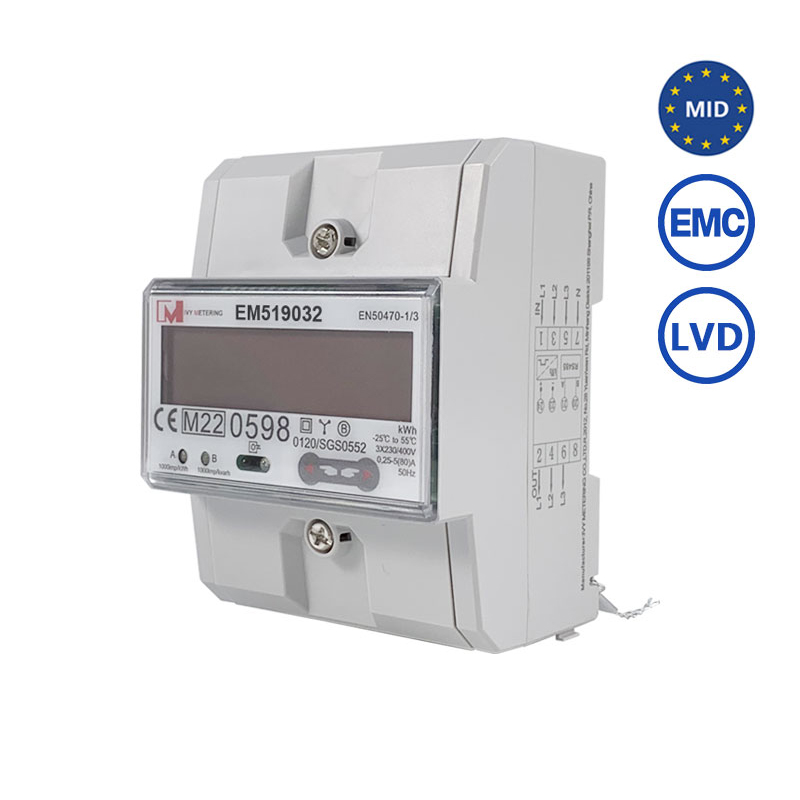

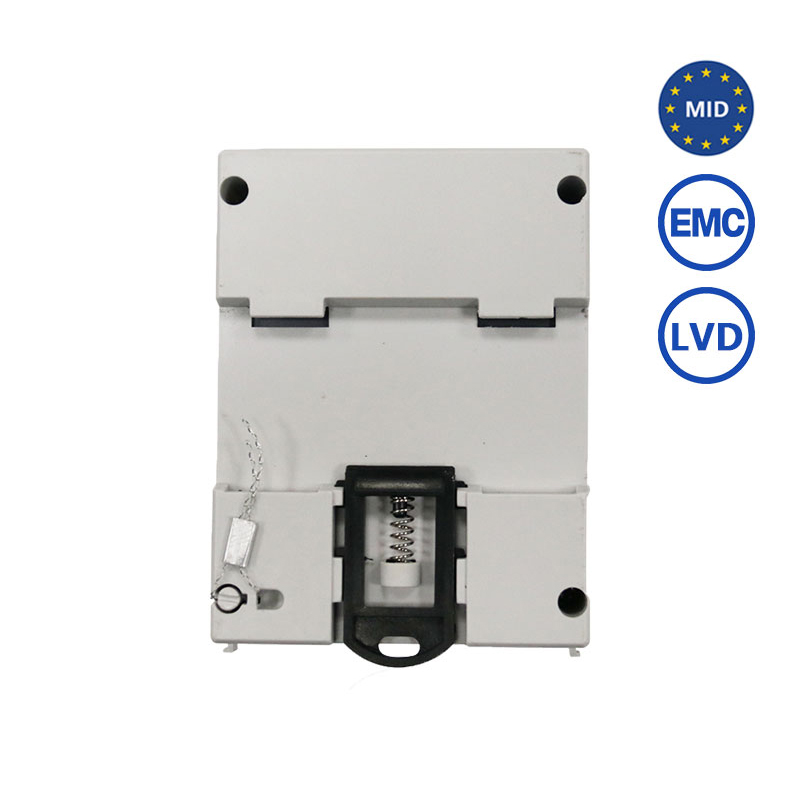

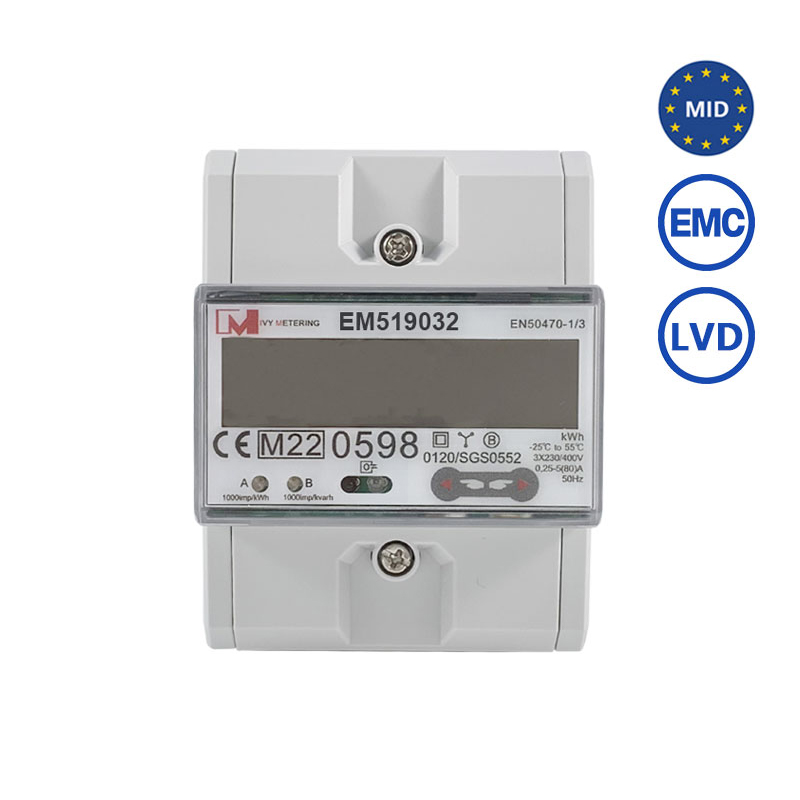

EM519032 LCD Display Bidirectional Solar Meter Smart Energy Three Phase MID Energy Meter With IR

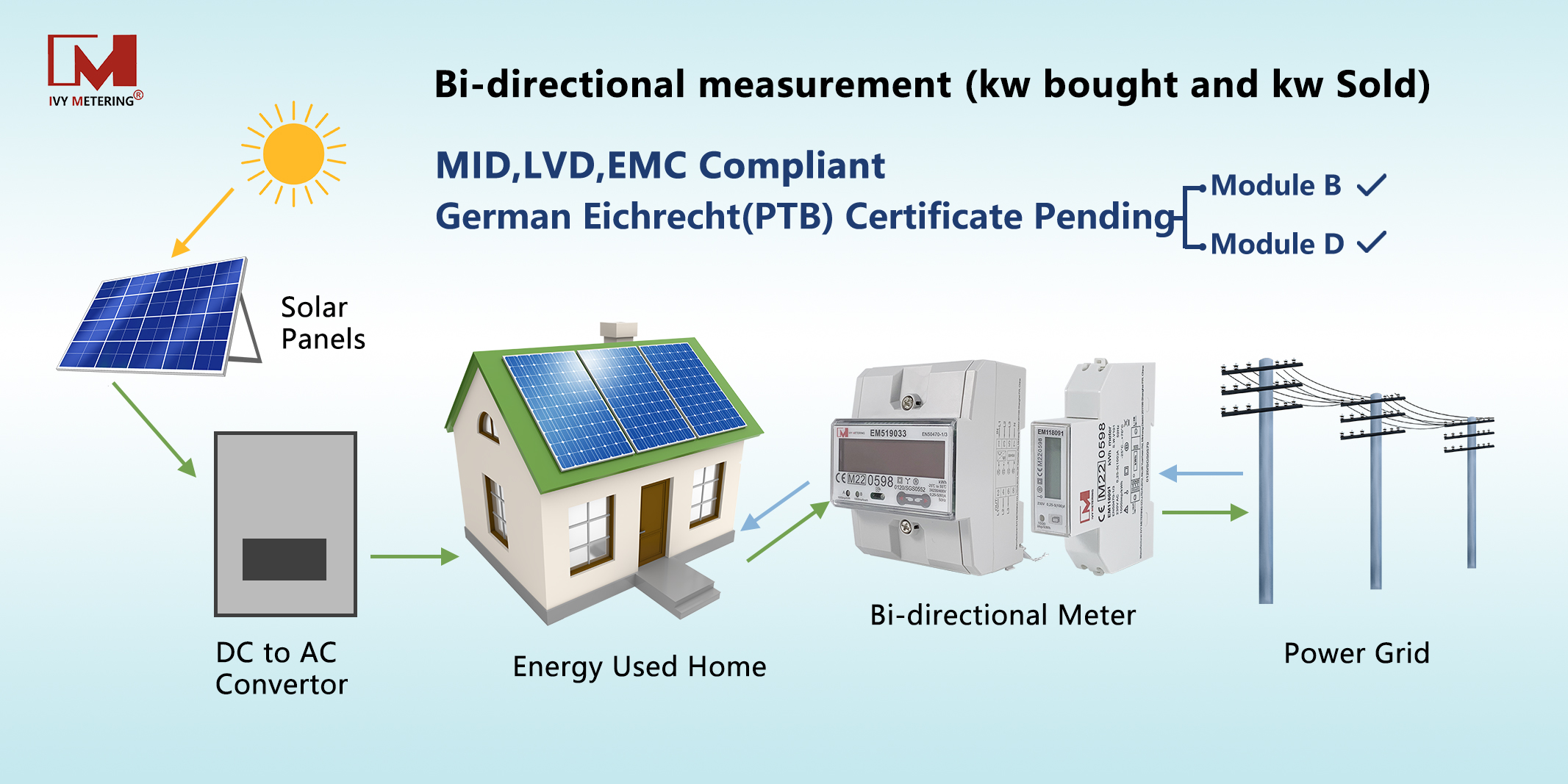

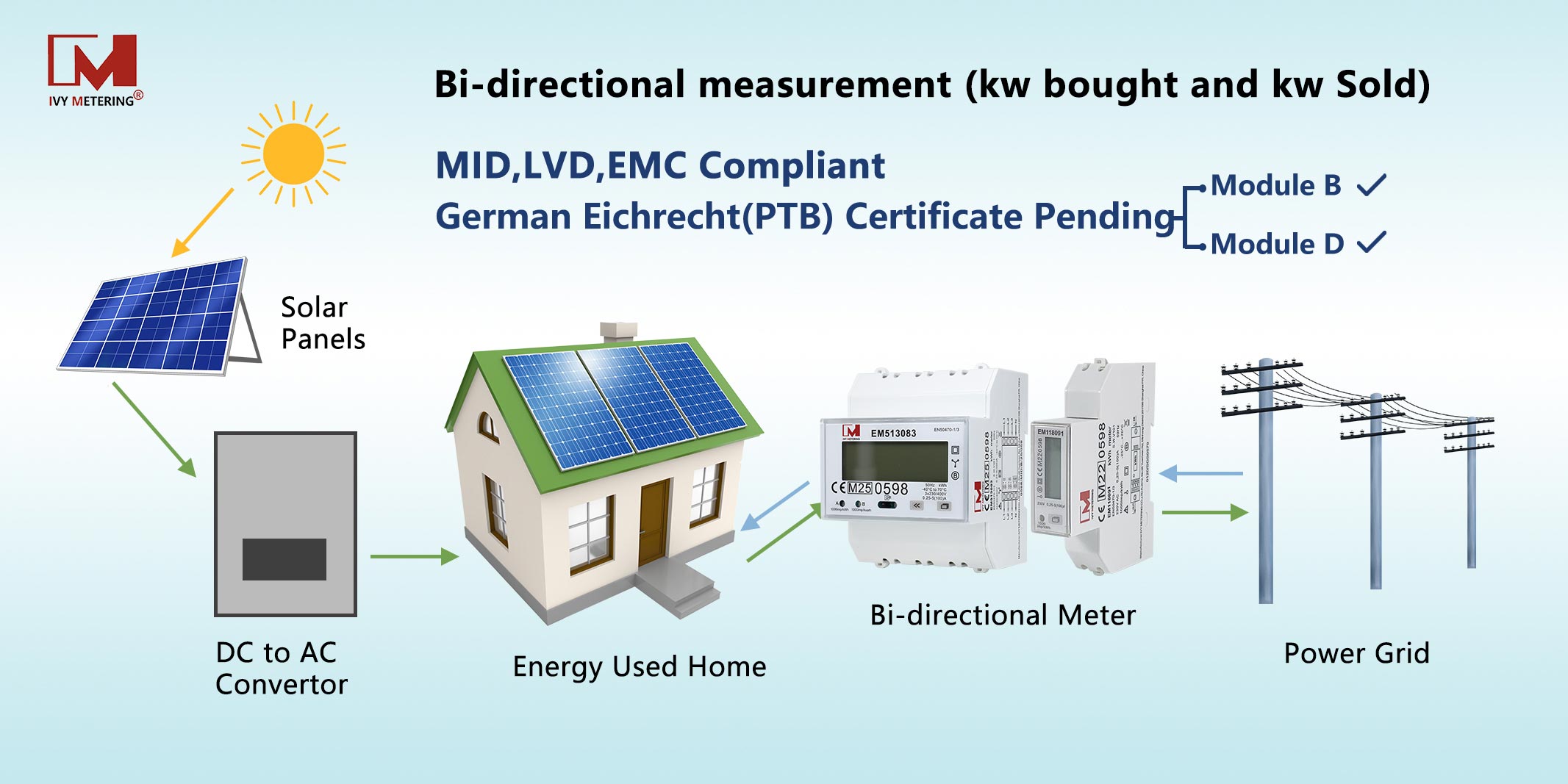

EM519032 is a three phase MID approved kWh Meter which can measure import active energy , export active energy , Bi-directional reactive measuring .With time-division measurement function, user can store or calculate active and reactive energy. It is also an EN50470-1/3 standard compliant and MID approved three phase din rail meter with IR communication-EN62056 (IEC1107) Protocol). With the accuracy class B, this meter can measure active&reactive, forward & reverse energy and support 3 modes of measurements.

1. Brief introduction

EM519032 is a three-phase MID-approved kWh Meter which can measure import active energy , export active energy , Bi-directional reactive measuring.With the time-division measurement function, user can store or calculate active and reactive energy. It is also an EN50470-1/3 standard compliant and MID approved three phase din rail meter with IR communication-EN62056 (IEC1107) Protocol). With the accuracy class B, this meter can measure active&reactive, forward & reverse energy and support 3 modes of measurement.


2.Function description

4 DIN Modules Multi-function Meters

Bi-directional active energy measuring , Bi-directional reactive measuring

Direct metering up to 80A

IEC62053-21 Class 1.0

Isolate pulse output and IR (DIN43864)

IR port, (RS485 communication port, modbus protocol can be optional)

MID Approved, Comply with IEC&EN Standard


3.Specification

Voltage

3*230V/400V

Current

0.25-5(80)A

Starting Current

0.4%Ib

Power Consumption

≤1.5W / <10VA

Accuracy Class

Class B

Frequency

50Hz

Impulse Constant

1000imp/kWh, 1000imp/kVarh

LCD Display (Backlight)

LCD6+2

Operation Temp. Range

-20~70℃ (Non Condensing)

Annual Average Humidity

85%

Max Humidity

95%

Reference Standard

EN50470-1/3

SO Output

Yes

Communication

IR (EN62056(IEC1107)Protocol)

Li-battery

/

Tariff

/
