MID Energy Meter

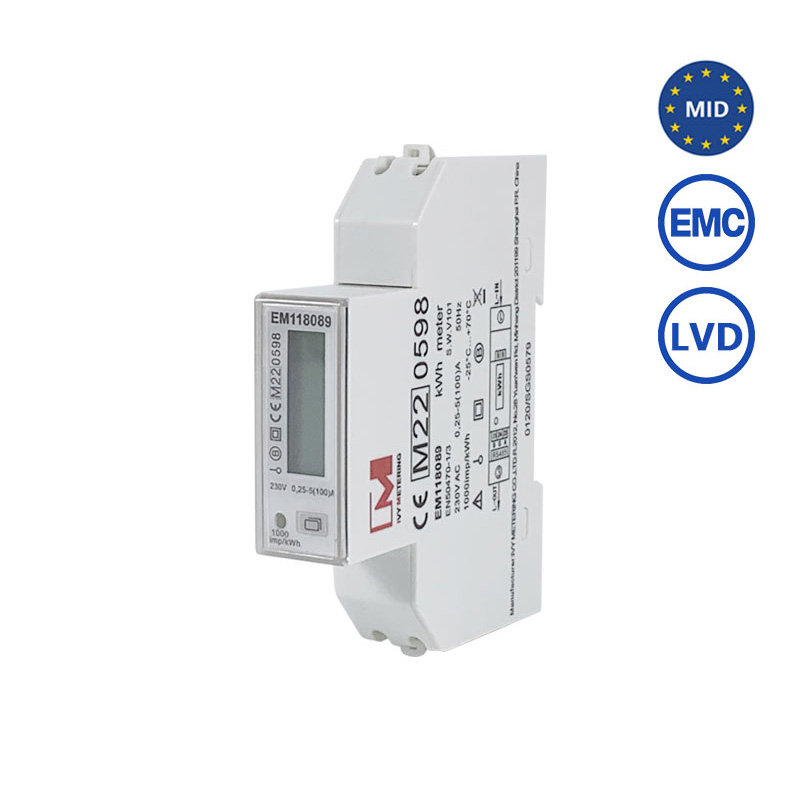

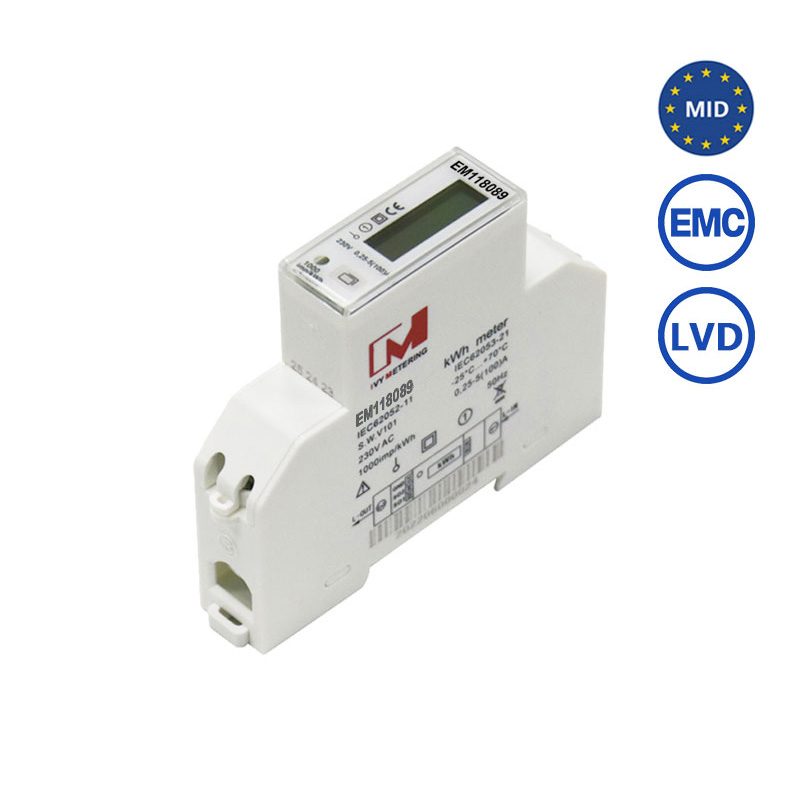

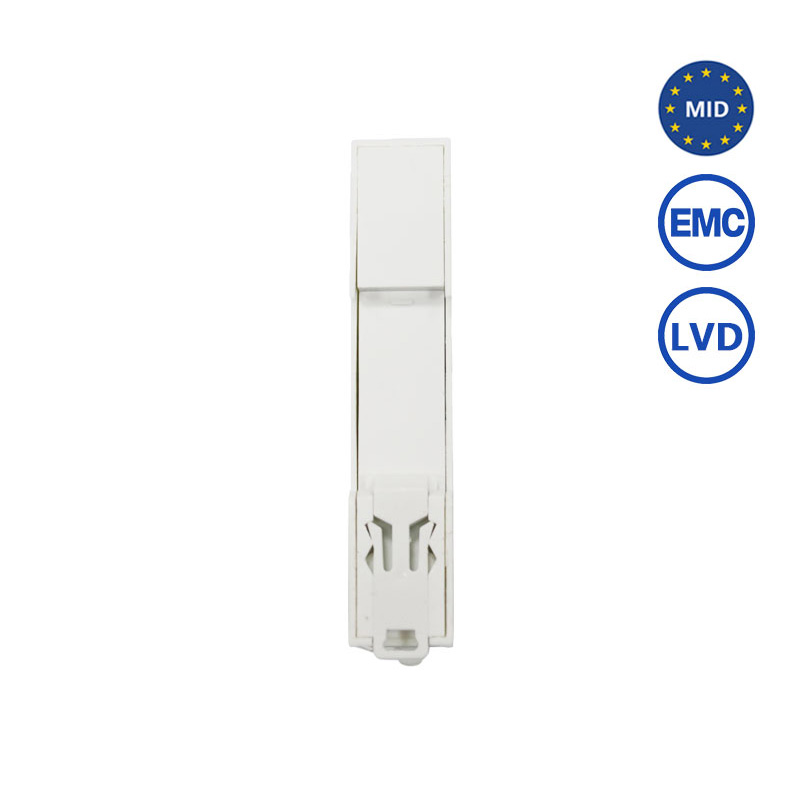

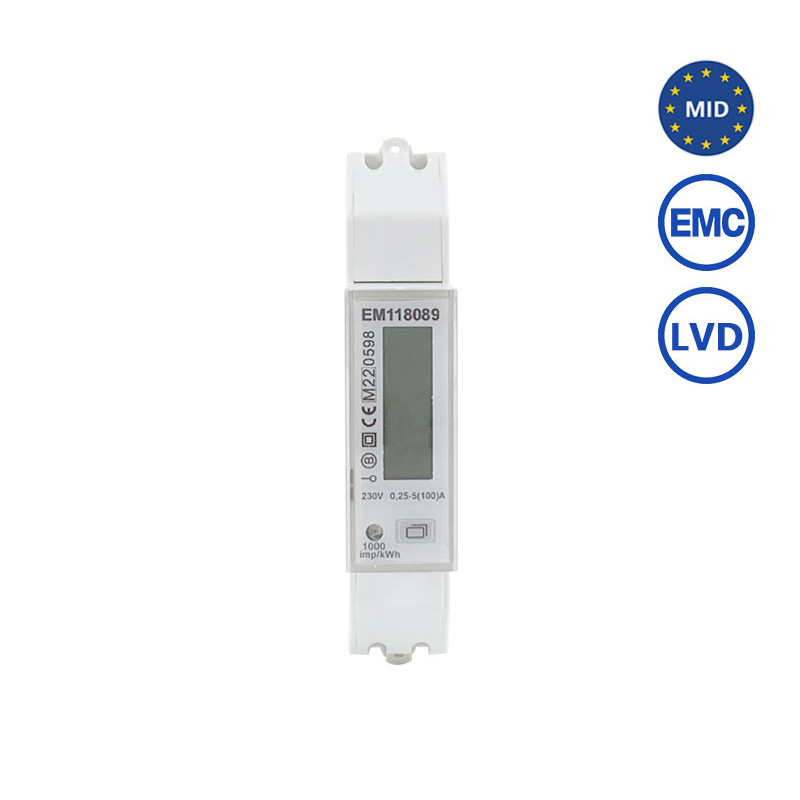

EM118090 EMC LVD 230V 5-32A 1 Phase MID Approval RS485 Modbus Energy Meter With Bidirectional Metering

A MID meter is a power meter device that allows you to record the energy consumption of a charging installation or a specific charger in conformity with the Measuring Instruments Directive (MID).The EM118090 is such a single phase RS485 Modbus energy meter with MID approval

1. Brief introduction

A MID meter is a power meter device that allows you to record the energy consumption of a charging installation or a specific charger in conformity with the Measuring Instruments Directive (MID).The EM118090 is such a single-phase RS485 Modbus energy meter with MID approval.


2. Specification

Voltage

230V

Current

0.25-5(100)A

Starting Current

0.4%Ib

Power Consumption

<1W / <10VA

Accuracy Class

Active Cl.1.0, Reactive Cl.2.0

Frequency

50Hz/60Hz

Impulse Constant

1000imp/kWh

LCD Display (Backlight)

LCD5+1=99999.9kWh

Operation Temp. Range

-25~55℃

Annual Average Humidity

≤75% (Non-Condensing)

Protection Degree

IP51 (Indoor Only)

Reference Standard

EN50470-1/3,IEC62052-31,IEC61010-1,IEC62052-11

SO Output

/

Communication

RS485(Modbus & DLT645 Protocol)

Li-battery

/

Tariff

/


3. Features

Digital single-phase kilowatt meter, one module 18mm wide.

Reduced dimensions for electric panels with space restrictions.

Direct measurement 0.25(30A/32A/40A/45A/50/60/80/100A), 230V

Active & Reactive, Forward & Reverse Bi-directional Measurement

Digital display, 5 digits + 1 decimal non-resettable

RS485 Communication, Modbus and DLT645 Protocol

Opto-isolated pulse output communications.

LED consumption indicator

MID Certificate 0120/SGS0579, CE-EMC, CE-LVD compliant

This meter measures city power energy, also measures negative power energy, like the solar PV and GeneratorReal-time display of Total Active Energy KWh, Positive Active Energy KWH, Negative Active Energy KWH, Temporary Active Energy KWH Voltage, Current, Active Power, Power factor , Frequency

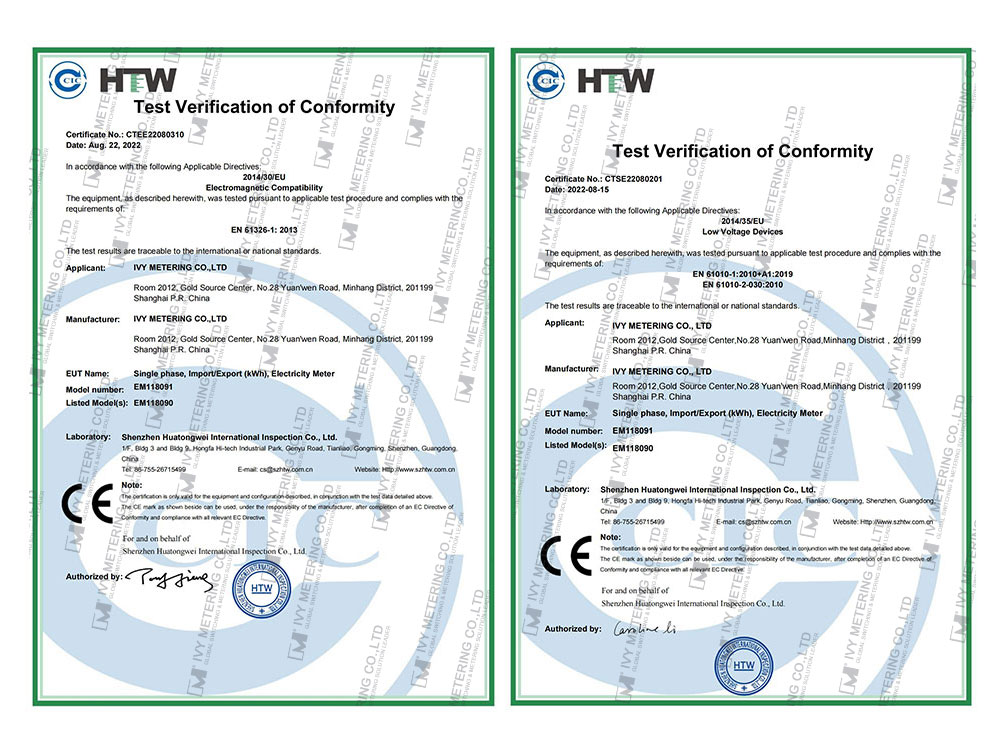

4. Certification

EM118090 EMC LVD 230V 5-32A 1 Phase MID Approval RS485 Modbus Energy Meter With Bidirectional Metering
