MID Energy Meter

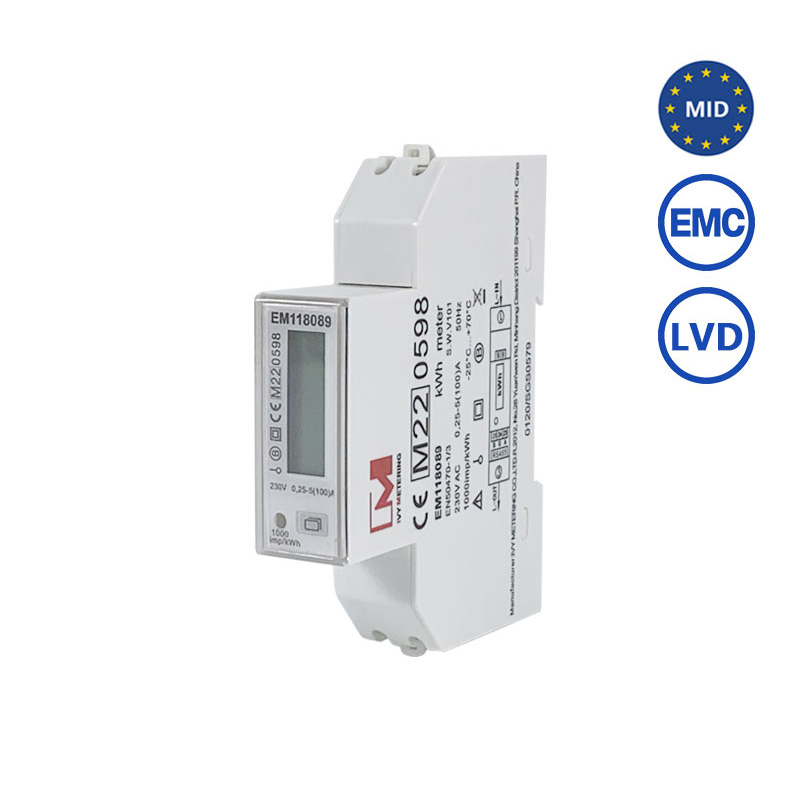

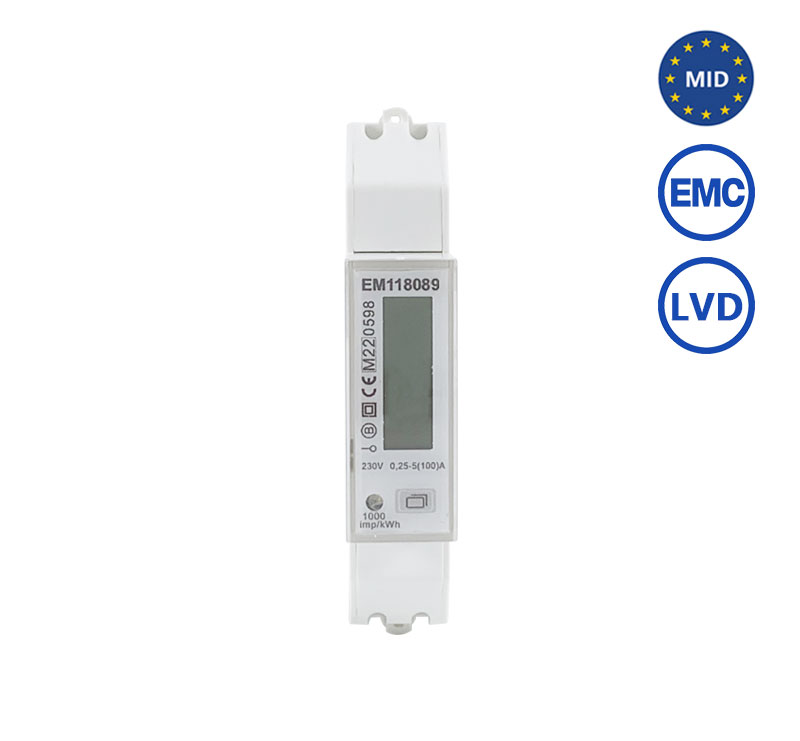

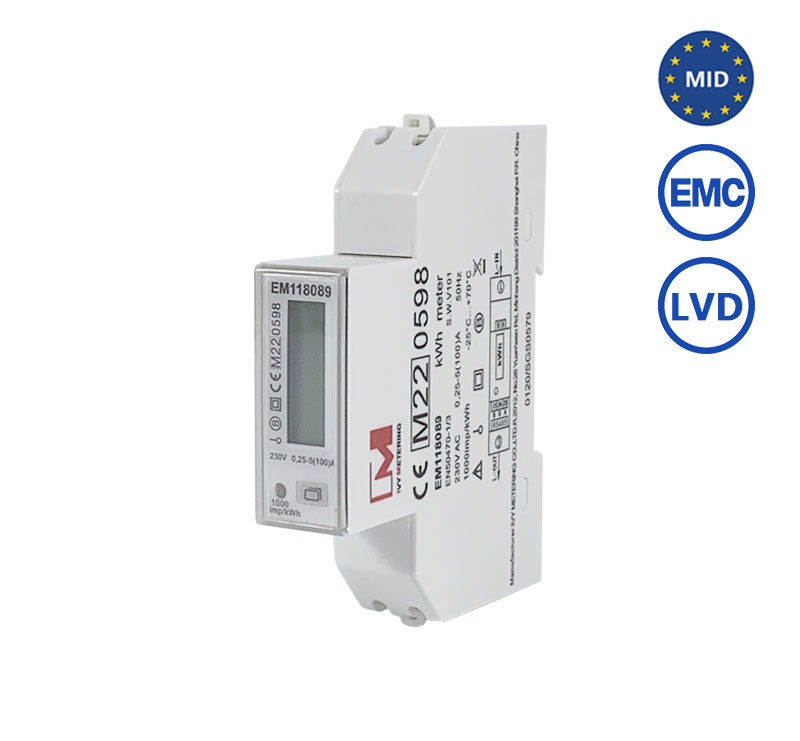

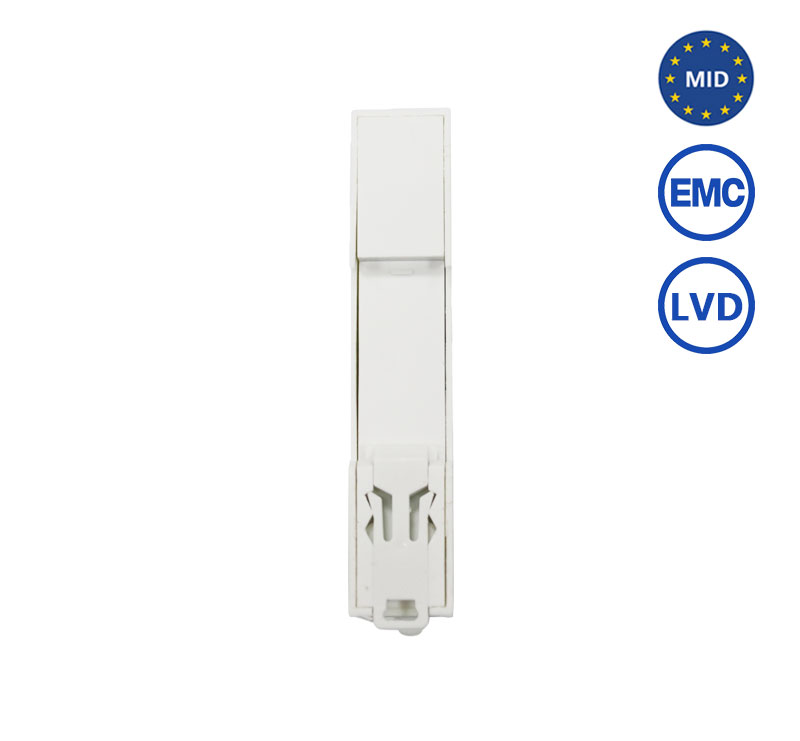

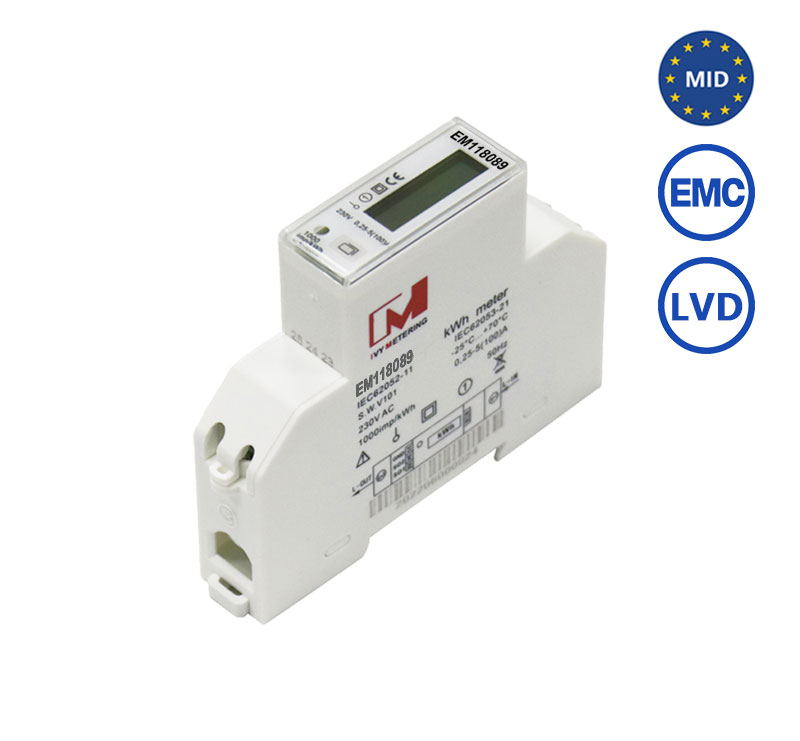

EM118089 SO Output MID Certified kWh Energy Meters DIN Rail Bi-directional Power Meter

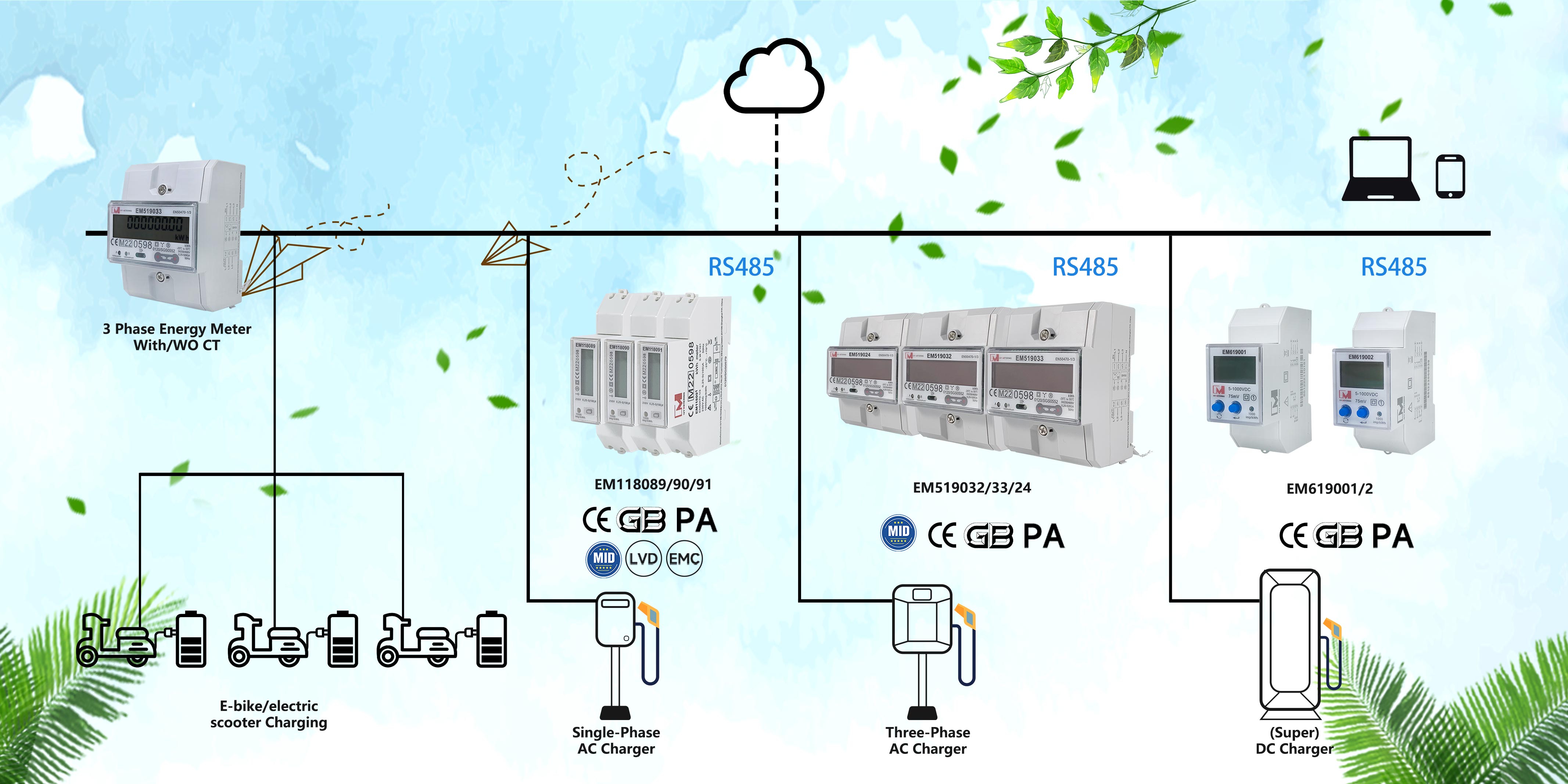

The EM118089 is a 5-100A monophase din rail mounted meter,  The meter is equipped with an output SO pulses and it’s only 18mm wide, supports kWh measurement, complies with MID certificate & DIN EN 50022 standard, and is suitable for domestic and commercial power distribution systems.  It's also a compact single phase 45A direct connected meter designed for applications like photovoltaic systems (PV), electric vehicle chargers (EV)  and building management systems (BMS). Due to its compact size (1 DIN Module) and easy installation, integration and configuration, the meter will fit in every PV, EV and BMS application that requires (MID) metering.

1. Brief introduction

The EM118089 is a 5-100A monophase din rail mounted meter,  The meter is equipped with an output SO pulses and it’s only 18mm wide, supports kWh measurement, complies with MID certificate & DIN EN 50022 standard, and is suitable for domestic and commercial power distribution systems.  It's also a compact single phase 45A direct connected meter designed for applications like photovoltaic systems (PV), electric vehicle chargers (EV)  and building management systems (BMS). Due to its compact size (1 DIN Module) and easy installation, integration and configuration, the meter will fit in every PV, EV and BMS application that requires (MID) metering.


2. Function description

Digital single-phase kilowatt meter, one module 18mm width.

Reduced dimensions for electric panels with space restrictions.

Direct measurement 0.25(30A/32A/40A/45A/50/60/80/100A), 230V

Active & Reactive, Forward & Reverse Bi-directional Measurement

Digital display, 5 digits + 1 decimal non-resettable

Non communication, price favorable

Opto-isolated pulse output communications.

LED consumption indicator

MID Certificate 0120/SGS0579


3.Specifications

Voltage

230V

Current

0.25-5(100)A

Starting Current

0.4%Ib

Power Consumption

<1W / <10VA

Accuracy Class

Active Cl.1.0, Reactive Cl.2.0

Frequency

50Hz/60Hz

Impulse Constant

1000imp/kWh

LCD Display (Backlight)

LCD5+1=99999.9kWh

Operation Temp. Range

-25~55℃

Annual Average Humidity

≤75% (Non Condensing)

Protection Degree

IP51 (Indoor Only)

Reference Standard

EN50470-1/3,IEC62052-31,IEC61010-1,IEC62052-11

SO Output

Yes

Communication

/

Li-battery

/

Tariff

/


4.Series

EM118089 SO Output MID Certified kWh Energy Meters DIN Rail Bi-directional Power Meter
