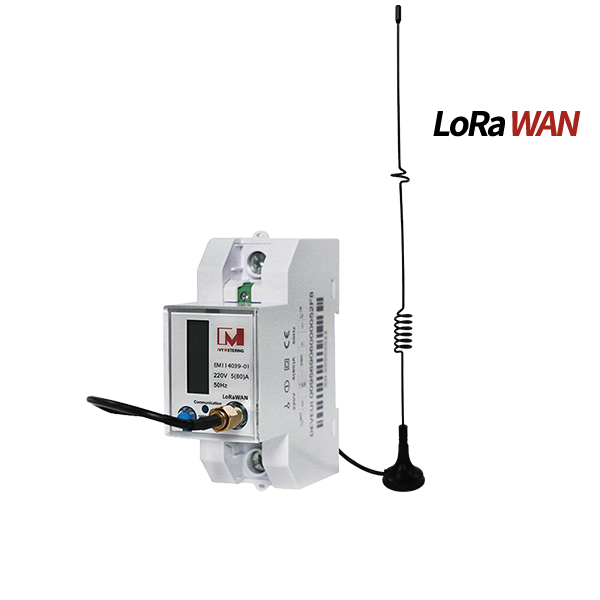

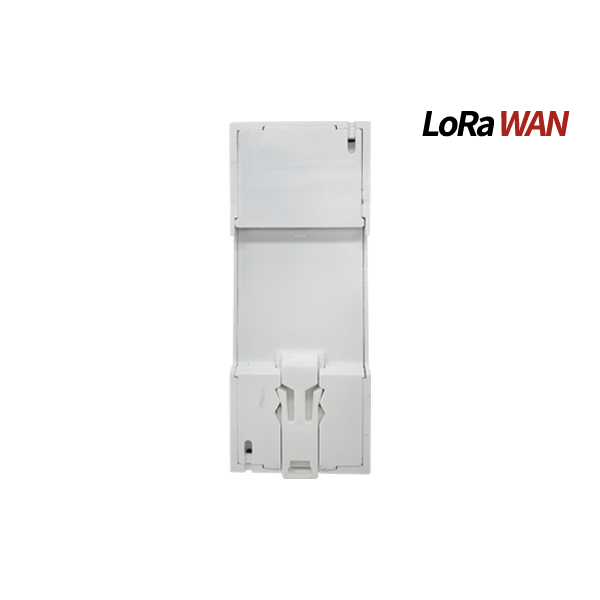

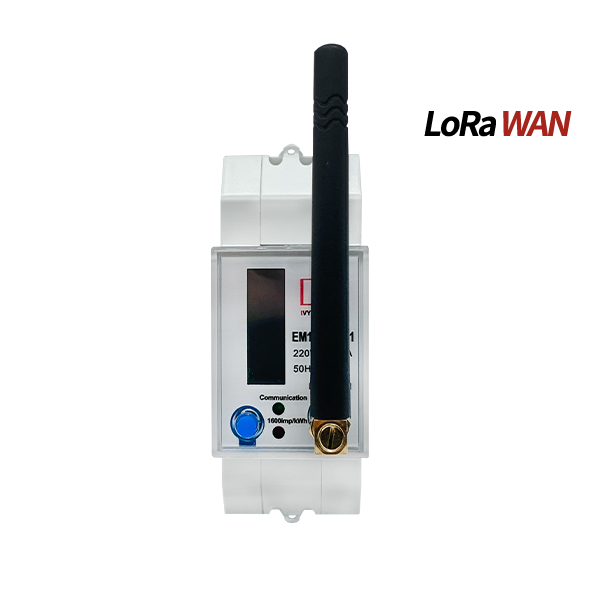

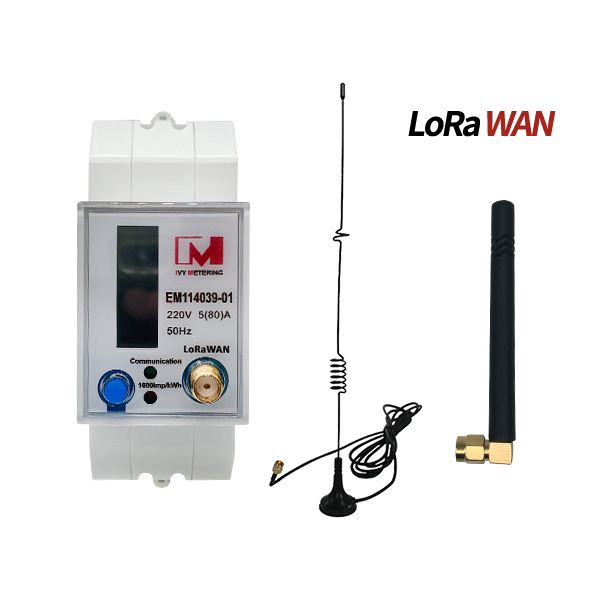

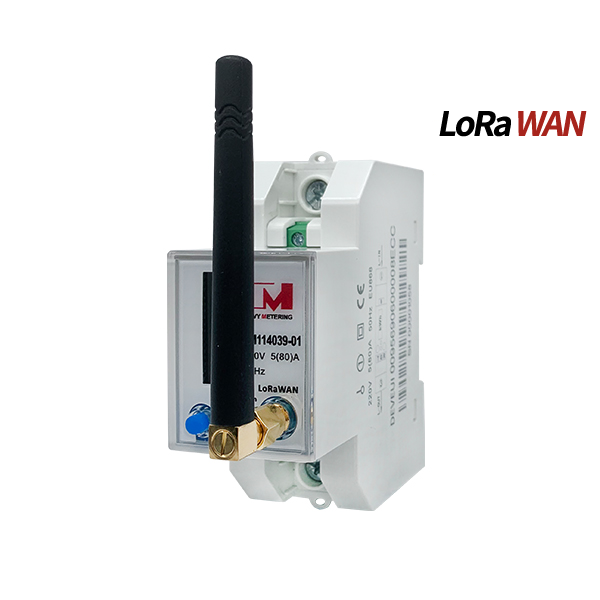

[Inverter] EM114039-01 Single Phase Remote Electricity Monitoring LoRa Energy Meter LoRaWAN Communication Lora solution

EM114039-01 is a single phase LoRaWAN smart electricity meter. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status.Frequency plans EU868 and US915 AS923 - order option. it's a lora solution for inverter.

Inquire Now Next Product

Product Details

1.Product introduction

EM114039-01 is a single phase LoRaWAN smart electricity meter with bidirectional metering. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status.

2.Feature

Measure I, V, kWh,kVarh, kW,PF... 5(80)A, 230V

Accuracy: Active Cl1.0, Reactive Cl2.0

LoRaWAN & TTL Communication, Modbus Protocol

MID Certified with Frequency Band EU686MHz

Built-in Latching Relay For Remote Load Control

EM114039-01 Single Phase Remote Electricity Monitoring LoRa Energy Meter LoRaWAN Communication

3.Specification

Specification	Product Type	Single Phase LoRaWAN Electricity Meter
	Ref. voltage	220V
	Ref. current	0.25-5(80)A
	Impulse constant	1600imp/kWh
	LCD display	LCD5+1
	Operation temp.	-20~+70℃
	Relative humidity	<95%
	Ref. frequency	50Hz
	Accuracy class	Cl.1
	Starting current	0.4%/Ib(CI.1)
	Load control	Built-in 80A magnetic latching relay
	Power consumption	≤ 1W,<10VA
	Standard compliant	IEC62052-11/IEC62053-21,IEC62055-41/IEC62056-21
	LoRaWAN communication	EU868MHz, EU433MHz, US915MHz, AU915MHz, AS923MHz, RU864MHz, KR920MHz, IN865MHz

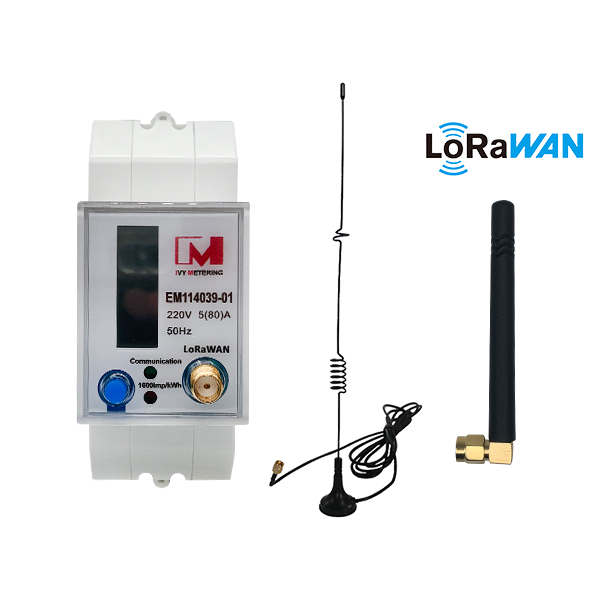

	LoRawan Antenna	SMA Socket

4.Application

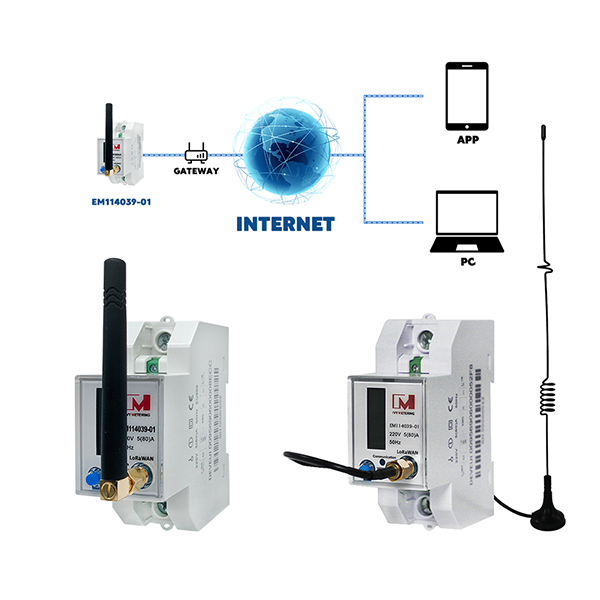

Smart Buildings, Smart City etc IOT Application

Utility Smart Metering Infrastructure
