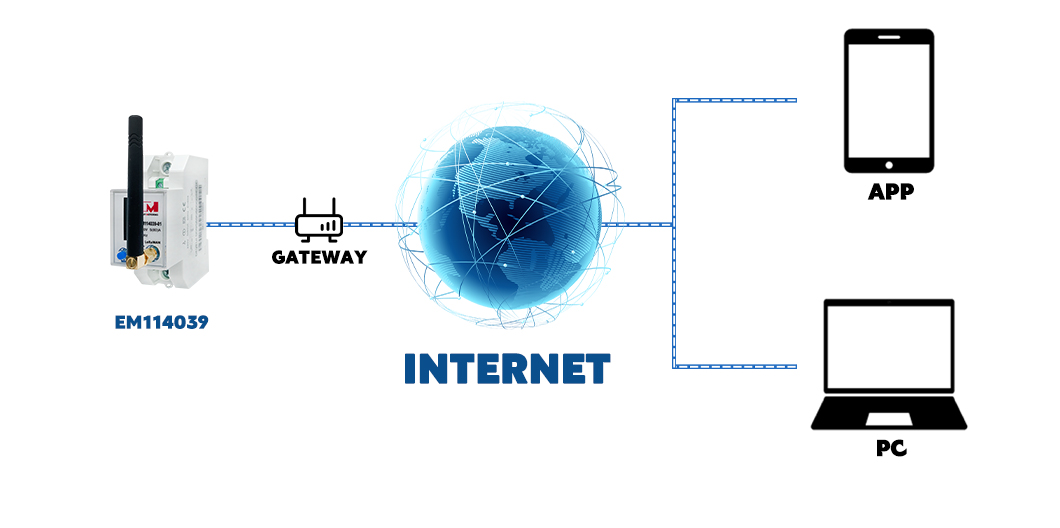

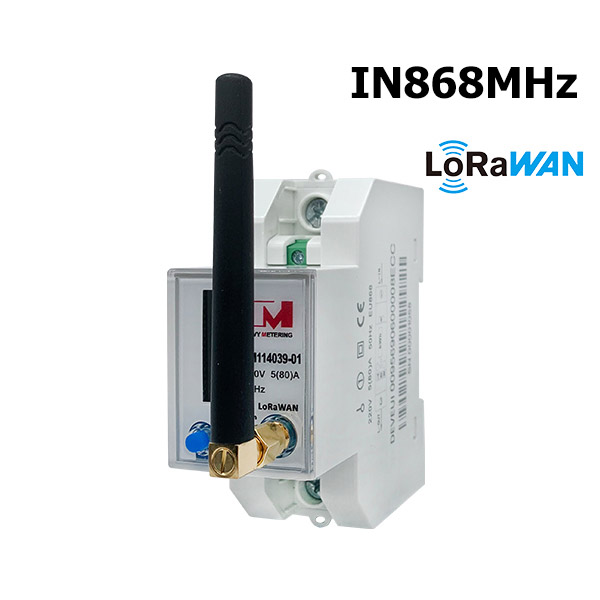

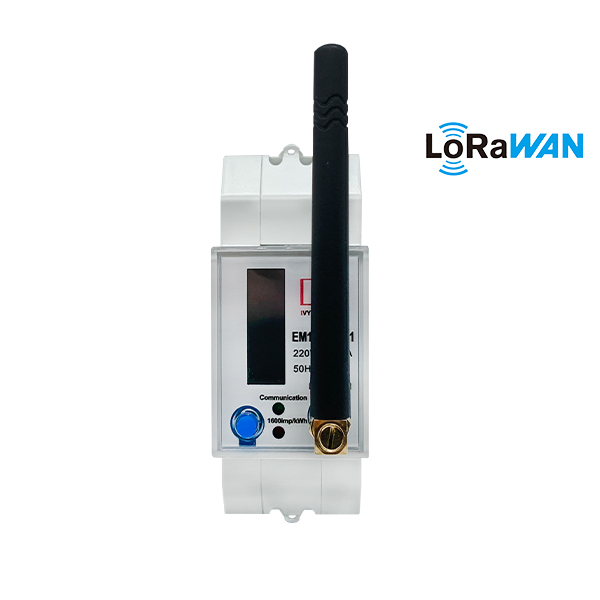

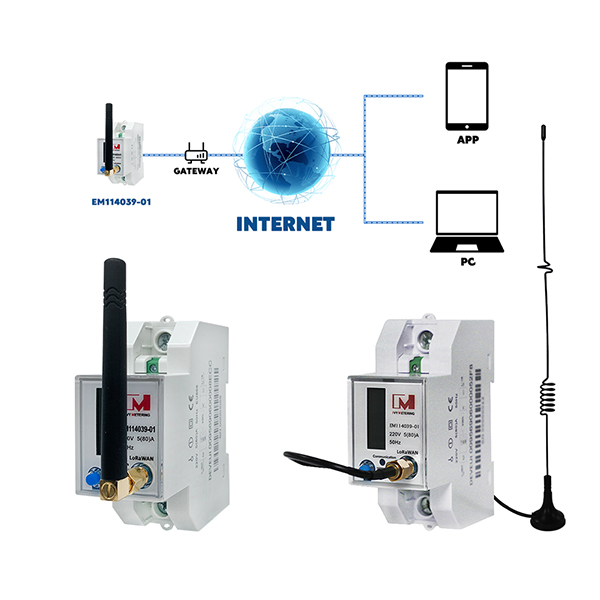

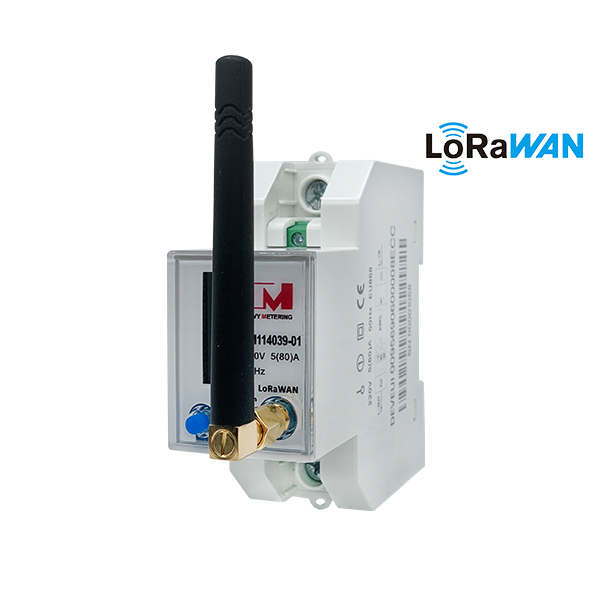

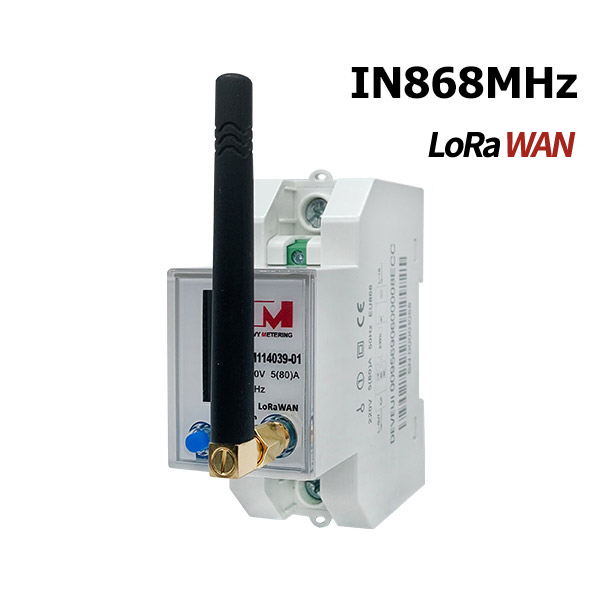

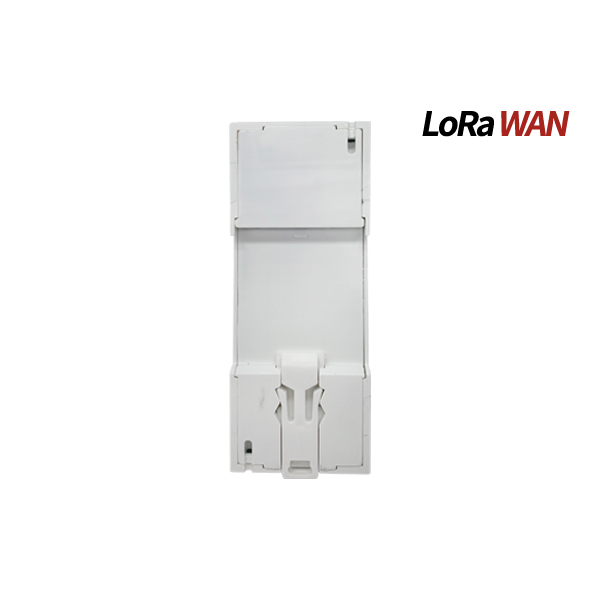

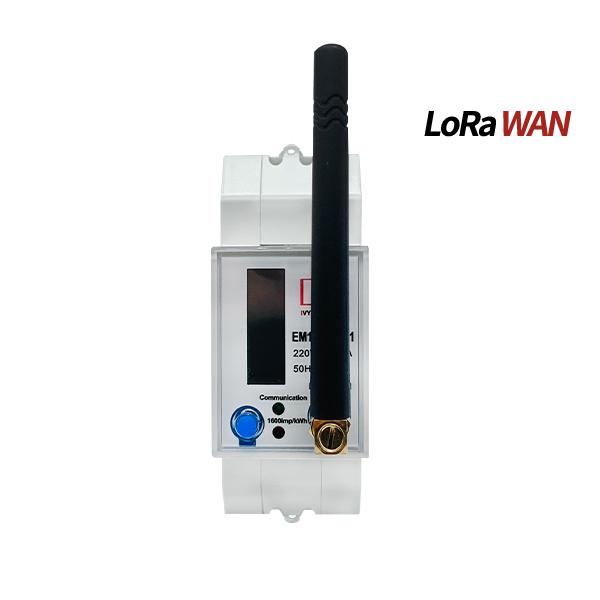

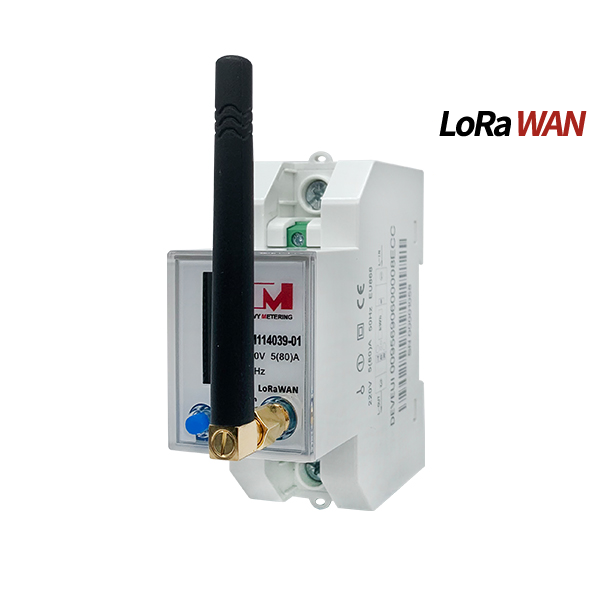

EM114039 is a single-phase smart electricity meter, which supports LoRaWAN remote communication, has built-in relay, can realize remote control of relay on/off, and remote meter reading, It is widely used in smart cities and power distribution systems of the Internet of Things. The primary frequency band used for LoRaWAN in India is the IN865-867 MHz band. This falls within the license-exempt ISM (Industrial, Scientific, and Medical) band, which is crucial for cost-effective deployment as it doesn't require spectrum licensing.
1.Features:
Single phase 80A Direct Connected

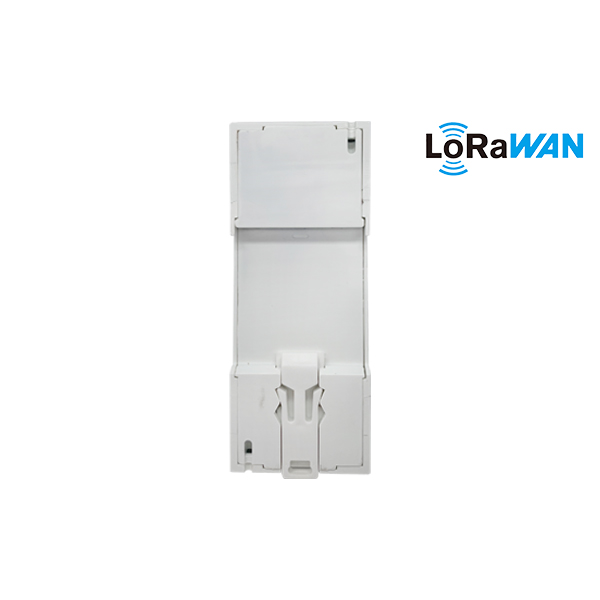

2 Module DIN rail mounted
Class 1.0 accuracy
MID Certified
Highly visible backlit display
Simple menu navigation
Remote On/Off over LoRaWAN
Lorawan Communication, LoRaWAN IN868 for remote monitoring (under development)
Power Consumption Measurement (Voltage, Current, Power Factor and used Wh) – Possibility to reset the Wh counter)
Overload protection, AES-128 encryption, to protect data integrity and prevent tampering
The socket/breaker/relay should automatically switch of when a pre-defined amount of Amperes is being used
Built in Pulsed outputs, 1 x Fixed & 1 x Configurable
comply with Indian standards and regulations for metrology and communication.
2.Technical Parameters
Product Type | Single Phase LoRaWAN Electricity Meter |
Ref. voltage | 220V |
Ref. current | 0.25-5(80)A |
Impulse Constant | 1600imp/kWh |
LCD Display | LCD5+1 |
Operation Temp. | -20~+70℃ |
Relative Humidity | <95% |
Ref. frequency | 50Hz |
Accuracy Class | Cl.1 |
Starting Current | 0.4%/Ib(CI.1) |
Load Control | Built-in 80A magnetic latching relay |
Power Consumption | ≤ 1W,<10VA |
Standard Compliant | IEC62052-11/IEC62053-21, IEC62055-41/IEC62056-21 |
LoRaWAN Communication | EU868MHz, EU433MHz, US915MHz, AU915MHz, AS923MHz, RU864MHz, KR920MHz, IN868MHz |

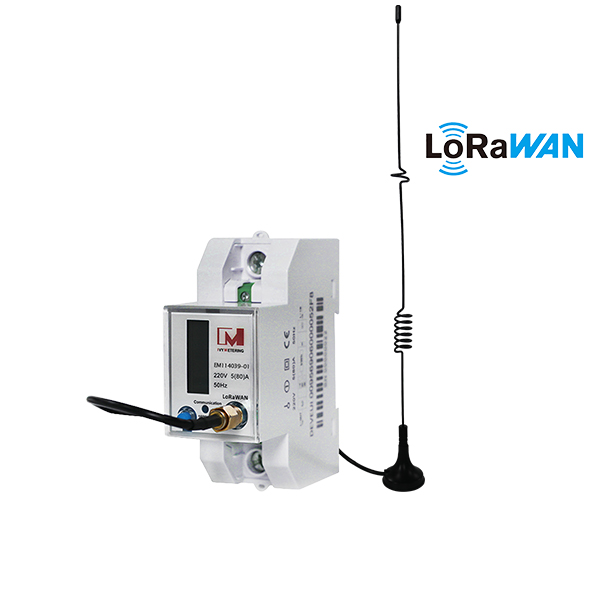

LoRaWAN Antenna | SMA Socket |
3. Standard & Certificate:
IEC62052-11/IEC62053-21, IEC62055-41/IEC62056-21 Standard Compliant
Approved for use in Europe (CE))
Comply with BIS indian standard
EMC: EN61326-1 & EN61326-2-3
LVD: EN61010-1 & EN61010-2-3
Optional: MID Class B certification
4.What are the Key Considerations When Choosing a LoRaWAN DIN Rail Meter:
Phase: Single-phase or three-phase, depending on your electrical system.
Current Rating: Ensure the meter can handle the maximum current of your application.
Accuracy Class: Typically Class 1 or Class 0.5S for higher accuracy.
MID Certification: Essential if the meter is used for billing or legal metrology in Europe.
LoRaWAN Frequency Band: Ensure compatibility with your regional LoRaWAN network (e.g., EU868MHz, US915MHz, AS923MHz for Japan).

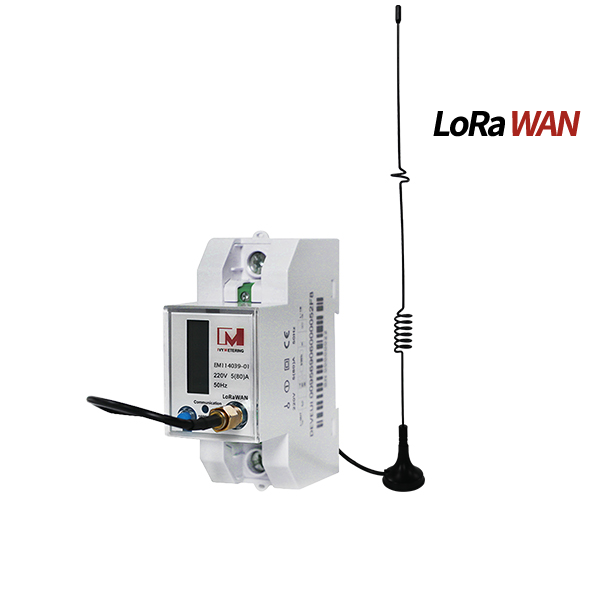

Antenna Type: Internal or external antenna options. External antennas can improve signal strength in challenging environments.
Additional Features: Look for features like multi-tariff metering, event recording, remote load control (via built-in relay), and local communication (e.g., RS485 Modbus) for parallel access.
Integration with Platforms: Consider how easily the meter can integrate with your existing or planned energy management system or IoT platform.
