Lorawan Energy Meter

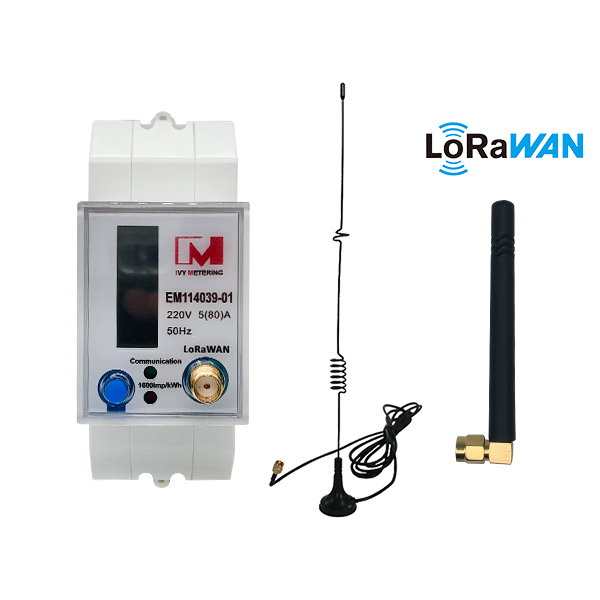

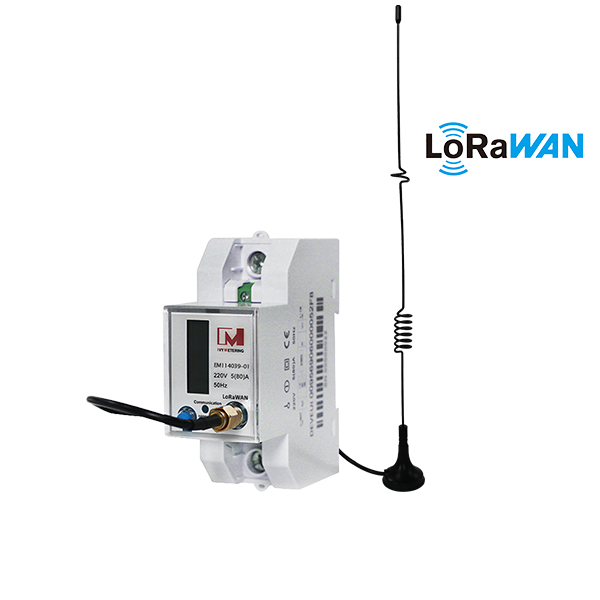

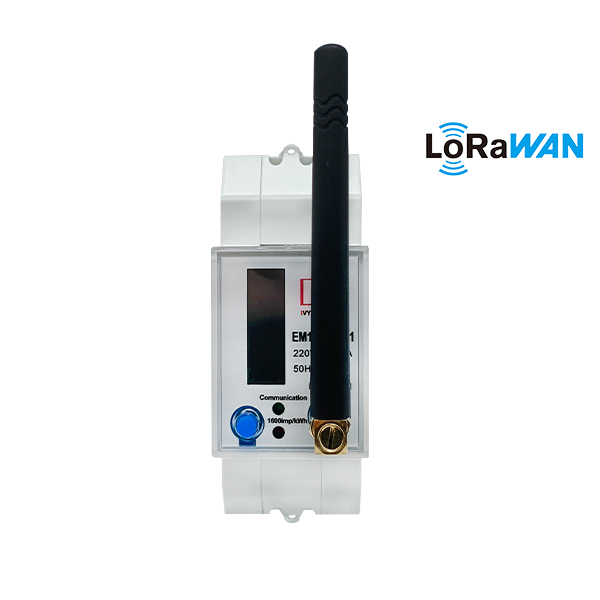

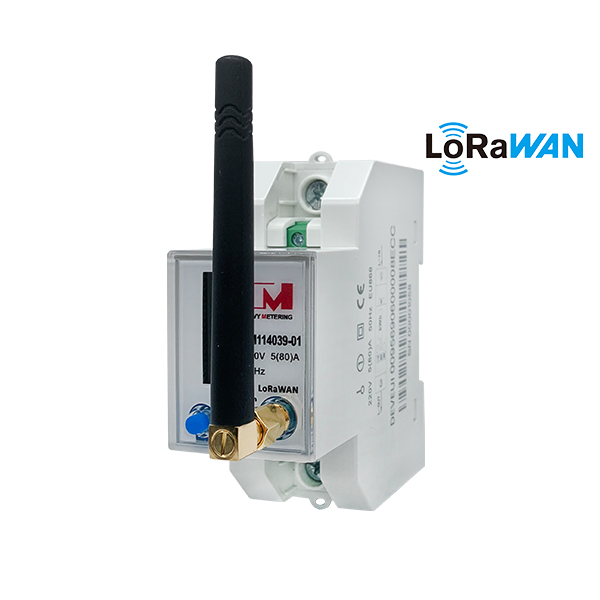

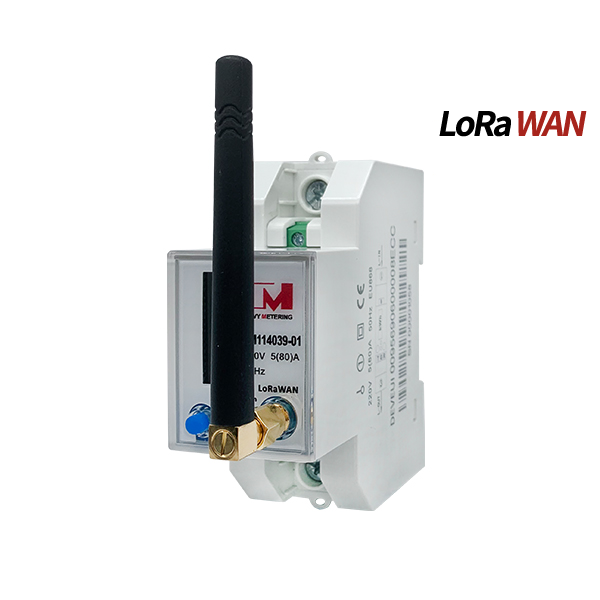

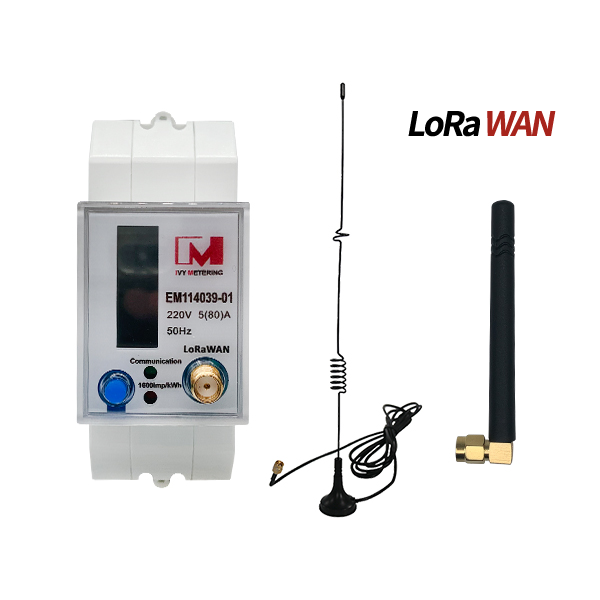

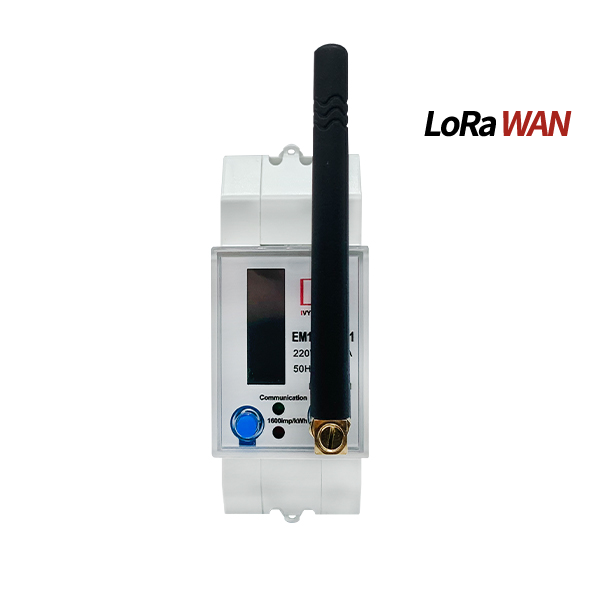

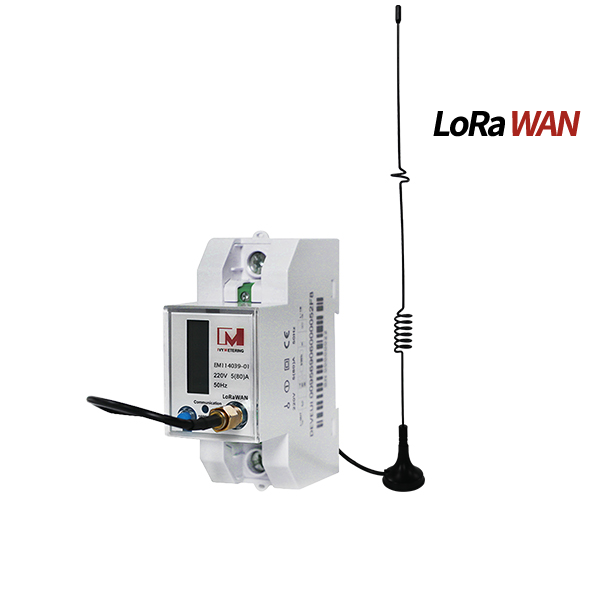

EM114039 1 Phase AC Wireless Communication LoRaWAN Smart Energy Meter

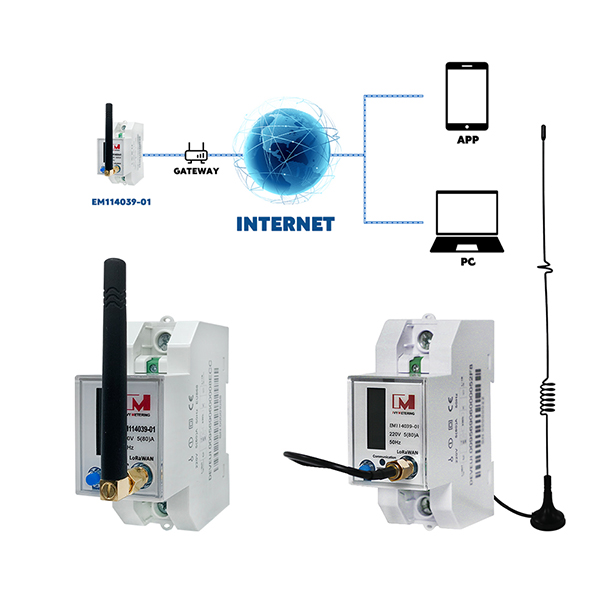

EM114039 is a single-phase smart electricity meter, which supports LoRaWAN remote communication, has built-in relay, can realize remote control of relay on/off, and remote meter reading, It is widely used in smart cities and power distribution systems of the Internet of Things.

Product Details


Single phase 80A Direct Connected

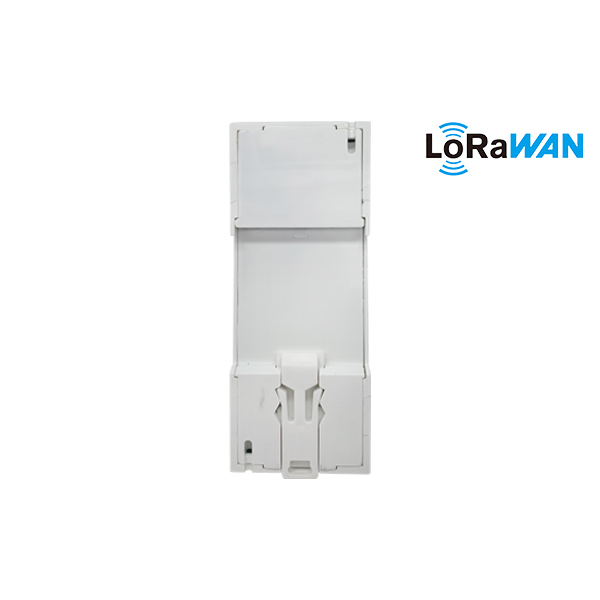

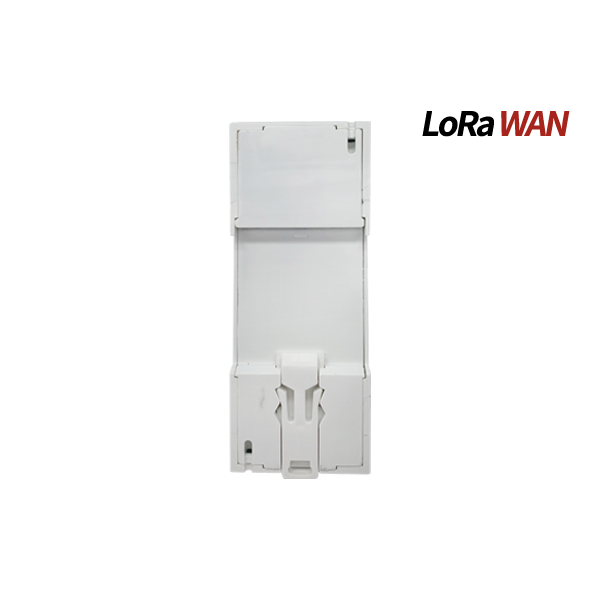

2 Module DIN rail mounted

Class 1.0 accuracy

MID Certified

Highly visible backlit display

Simple menu navigation

Remote On/Off over LoRaWAN

Lorawan Communication, LoRaWAN EU868 for remote monitoring

Power Consumption Measurement (Voltage, Current, Power Factor and used Wh) – Possibility to reset the Wh counter)

Overload protection

The socket/breaker/relay should automatically switch of when a pre-defined amount of Amperes is being used

Built in Pulsed outputs, 1 x Fixed & 1 x Configurable

EM114039 1 Phase AC Wireless Communication LoRaWAN Smart Energy Meter

2.Technical Parameters

Product TypeSingle Phase LoRaWAN Electricity Meter
Ref. voltage220V
Ref. current0.25-5(80)A
Impulse Constant1600imp/kWh
LCD DisplayLCD5+1
Operation Temp.-20~+70℃
Relative Humidity<95%
Ref. frequency50Hz
Accuracy ClassCl.1
Starting Current0.4%/Ib(CI.1)
Load ControlBuilt-in 80A magnetic latching relay
Power Consumption≤ 1W,<10VA
Standard CompliantIEC62052-11/IEC62053-21,IEC62055-41/IEC62056-21
LoRaWAN CommunicationEU868MHz, EU433MHz, US915MHz, AU915MHz,AS923MHz, RU864MHz, KR920MHz, IN865MHz
LoRaWAN AntennaSMA Socket

3. Standard & Certificate:

IEC62052-11/IEC62053-21, IEC62055-41/IEC62056-21 Standard Compliant

Approved for use in Europe (CE))

EMC: EN61326-1 & EN61326-2-3

LVD: EN61010-1 & EN61010-2-3

Optional: MID Class B certification

EM114039 1 Phase AC Wireless Communication LoRaWAN Smart Energy Meter

Function Description
