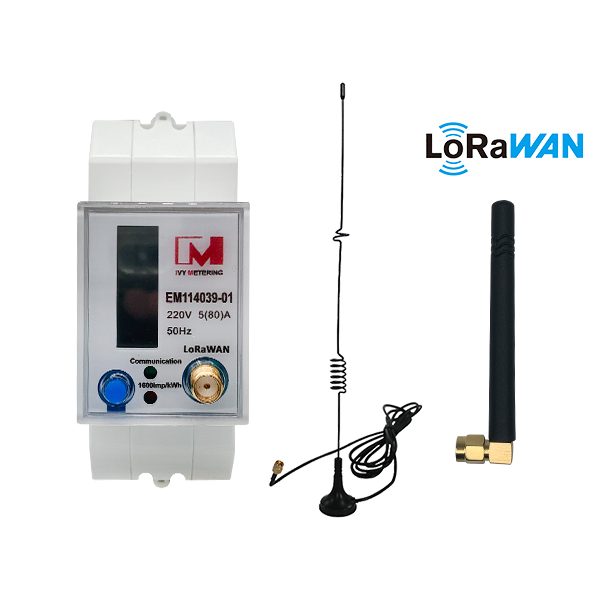

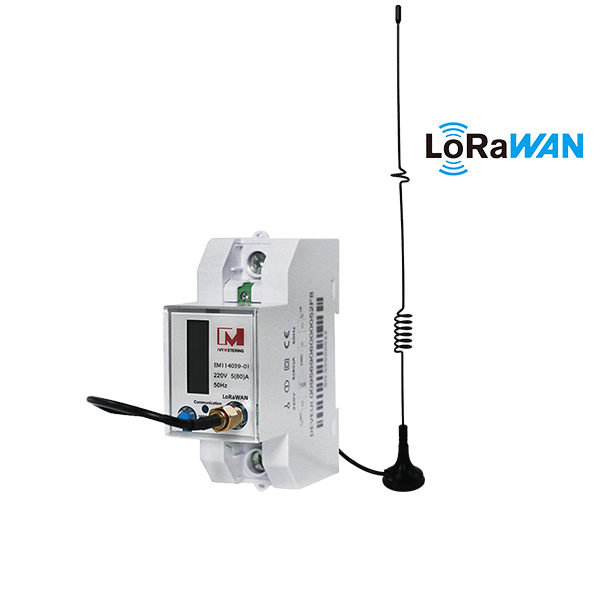

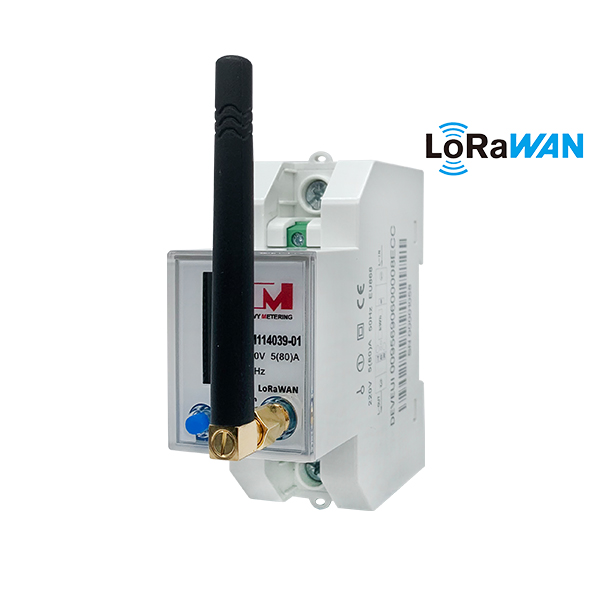

EM114039-01 is a single phase LoRaWAN smart electricity meter. It supports LoRaWAN communication and local TTL communication (Modbus protocol). With built-in latching relay, you can use TTL(locally) or LoRaWAN(remotely) to set the switching status.Frequency plans EU868 and US915 AS923 - order option.
1.Product introduction
EM114039-01 is a single phase LoRaWAN smart electricity meter with following functions:
Metering Function: Active (Power, Demand, Energy Forward and Reverse), Reactive (Power, Demand, Energy Inductive, Power Factor), Status (Power Out, Relay Open) you can easily manage the energy you can produce in your home (solar, geothermic, wind, etc). You have a better control of your real consumption and a clearer financial exchange with your provider.
Communication Function: Support LoRaWAN communication and local TTL communication (Modbus protocol). It can send alarms after a powerfail (5 sec). you can also use TTL(locally) or LoRaWAN(remotely) to set the switching status.
Remote control: This meter is equipped with an 80A built-in magnetic latching relay. Remote control & automatic trip under abnormal conditions.
Multi-tariff: It can handle several tariffs to answer to real requirements on the market. As a result, utilities can propose more adapted commercial offers to their customers.
Display Function: LCD display, data scroll display, page turning by button, parameter settings, such as voltage, current, reactive power, active power, power factor, number of pages, display order, interval time of page turning.
2.Feature
Measure I, V, kWh,kVarh, kW,PF... 5(80)A, 230V
Accuracy: Active Cl1.0, Reactive Cl2.0
Network protocols:Lorawan

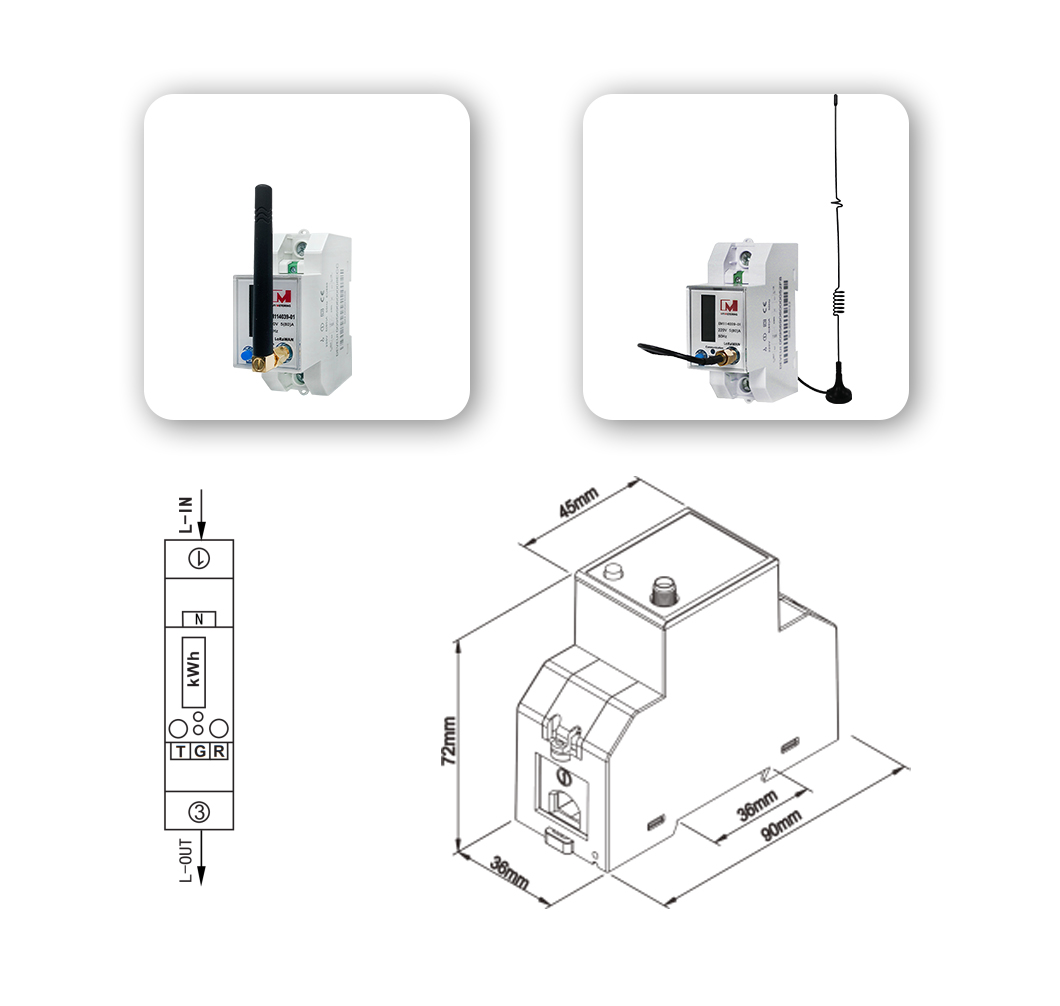

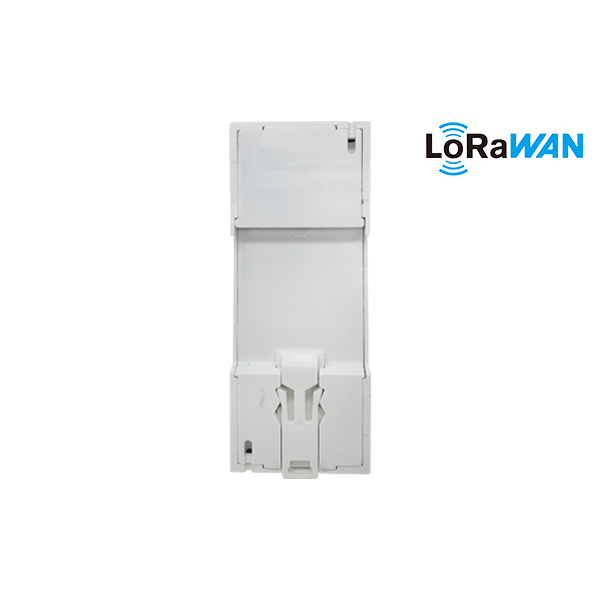

Installation in the Din panel rack
LoRaWAN & TTL Communication, Modbus Protocol
MID Certified with Frequency Band EU686MHz
3.Specification
| Product Type | Single Phase LoRaWAN Electricity Meter |
| Ref. voltage | 220V |
| Ref. current | 0.25-5(80)A |
| Impulse constant | 1600imp/kWh |
| LCD display | LCD5+1 |
| Operation temp. | -20~+70℃ |
| Relative humidity | <95% |
| Ref. frequency | 50Hz |
| Accuracy class | Cl.1 |
| Starting current | 0.4%/Ib(CI.1) |
| Load control | Built-in 80A magnetic latching relay |
| Power consumption | ≤ 1W,<10VA |
| Standard compliant | IEC62052-11/IEC62053-21, IEC62055-41/IEC62056-21 |
| LoRaWAN communication | all frequencies, EU868MHz, EU433MHz, US915MHz, AU915MHz, AS923MHz, RU864MHz, KR920MHz, IN865MHz |
| LoRawan Antenna | SMA Socket |
4.Application
Smart Buildings, Smart City etc IOT Application
Utility Smart Metering Infrastructure
About LoRaWAN

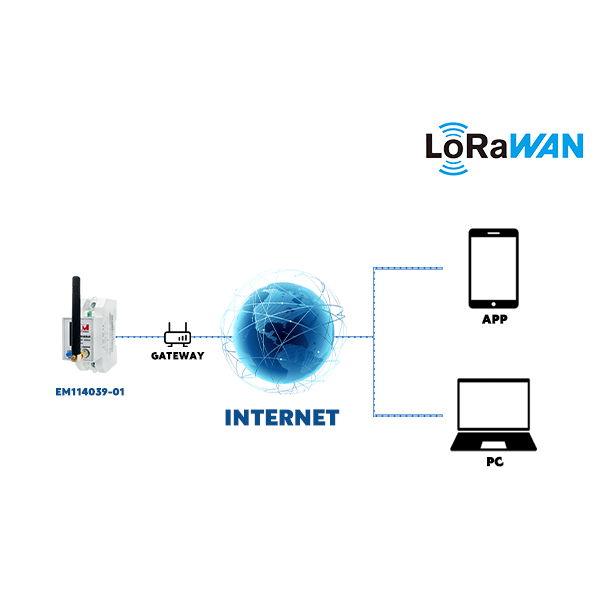

The LoRaWAN® network is a star-of-stars topology in which gateways relay messages between end-devices and a central network server. The gateways are connected to the network server via standard IP connections, and act as a transparent bridge, simply converting RF packets to IP packets and vice versa.
