[LoRaWAN Solution] EM114039-02 Single Phase LoRaWAN Energy Monitor Smart Meters LoRa Prepaid Electricity Meter

[LoRaWAN Solution] EM114039-02 Single Phase LoRaWAN Energy Meters LoRa Prepaid Electricity Meters

EM114309-02 is prepaid Single Phase LoRaWAN Bi-directional communications Energy Meter. It measures active energy, reactive energy, current, voltage, power, power factor, frequency, etc. The units support Max. 80A direct connection. It frees the user from communication cable wiring, provides more flexibility installation, and saves a lot of cost on maintenance. It use the standard LoRaWAN protocol which can be for remote monitoring and setting, suitable for monitoring energy consumption in residential, industrial,utility applications,smart buildings, basic infrastructure, and agriculture area.

1. Description

EM114039-02 is a single-phase LoRaWAN power monitoring device with Eu868Mhz frequency band and prepaid postpaid functions. It's also a modular power monitoring device embedding a LoRaWAN wireless communication. it can be used for measuring and monitoring energy or power consumption in various applications. It is designed to be compatible with the LoRaWAN communication protocol, allowing for wireless data transmission and remote monitoring capabilities.LoRaWAN Connectivity: The meter is equipped with a LoRaWAN communication module, enabling wireless data transmission to a LoRaWAN network server. This allows for remote monitoring and management of energy consumption data.

Specification	Ref. voltage	220V
	Ref. current	0.25-5(80)A
	Impulse Constant	1000imp/kWh
	LCD Display	LCD5+1
	Operation Temp.	-20~+70℃
	Relative Humidity	<95%
	Ref. frequency	50Hz
	Accuracy Class	Cl.1
	Starting Current	0.4%/Ib(CI.1)
	Load Control	Built-in 80A magnetic latching relay
	Power Consumption	≤ 1W,<10VA
	Standard Compliant	IEC62052-11/IEC62053-21,
	LoRaWAN Communication	EU868MHz

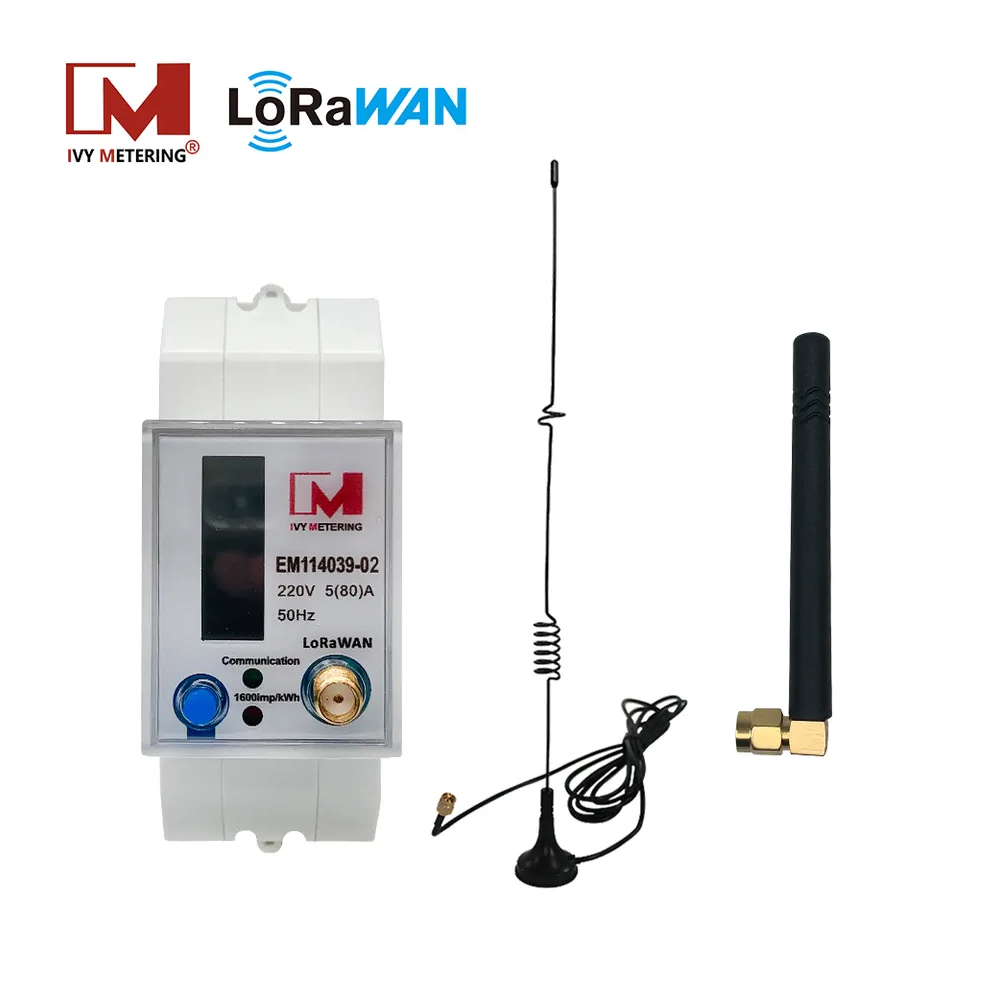

	LoRaWAN Antenna	SMA Socket
	Mode	Prepaid Mode（Energy） Prepaid Mode（Credit） Postpaid Mode

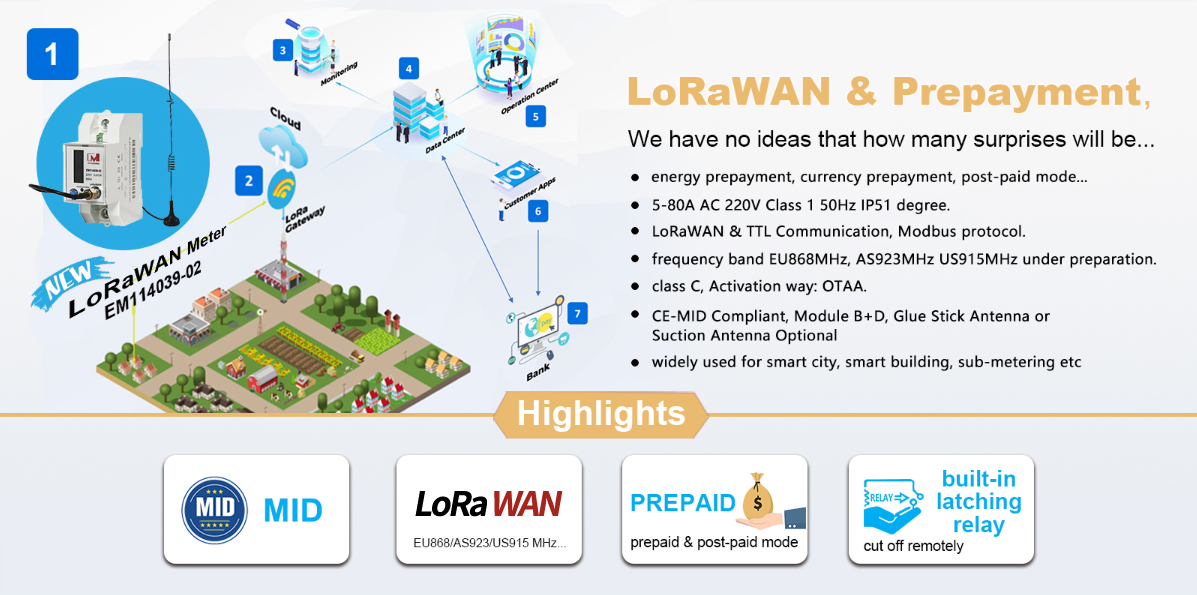

2. Features

EM114039-02 Single Phase LoRa IoT Prepaid Smart Energy Meters with LoRaWAN

3.Application

LoRaWAN energy meters are used to measure and monitor energy consumption in various settings, such as homes, buildings, and industrial facilities. They use LoRaWAN technology to transmit data wirelessly to a central server or gateway, allowing for real-time monitoring and analysis of energy usage.

The application of LoRaWAN energy meters is to help users better understand their energy consumption patterns, identify areas of inefficiency, and make informed decisions about energy usage. This can lead to cost savings, improved energy efficiency, and reduced environmental impact. Some specific use cases for LoRaWAN energy meters include:

Smart homes: LoRaWAN energy meters can be used to monitor energy usage in individual homes, allowing homeowners to track their energy consumption and identify ways to reduce their energy bills.

Commercial buildings: LoRaWAN energy meters can be used to monitor energy usage in commercial buildings, such as offices and retail spaces, to identify areas of inefficiency and optimize energy usage.

Industrial facilities: LoRaWAN energy meters can be used to monitor energy usage in industrial facilities, such as factories and warehouses, to identify opportunities for energy savings and improve overall efficiency.

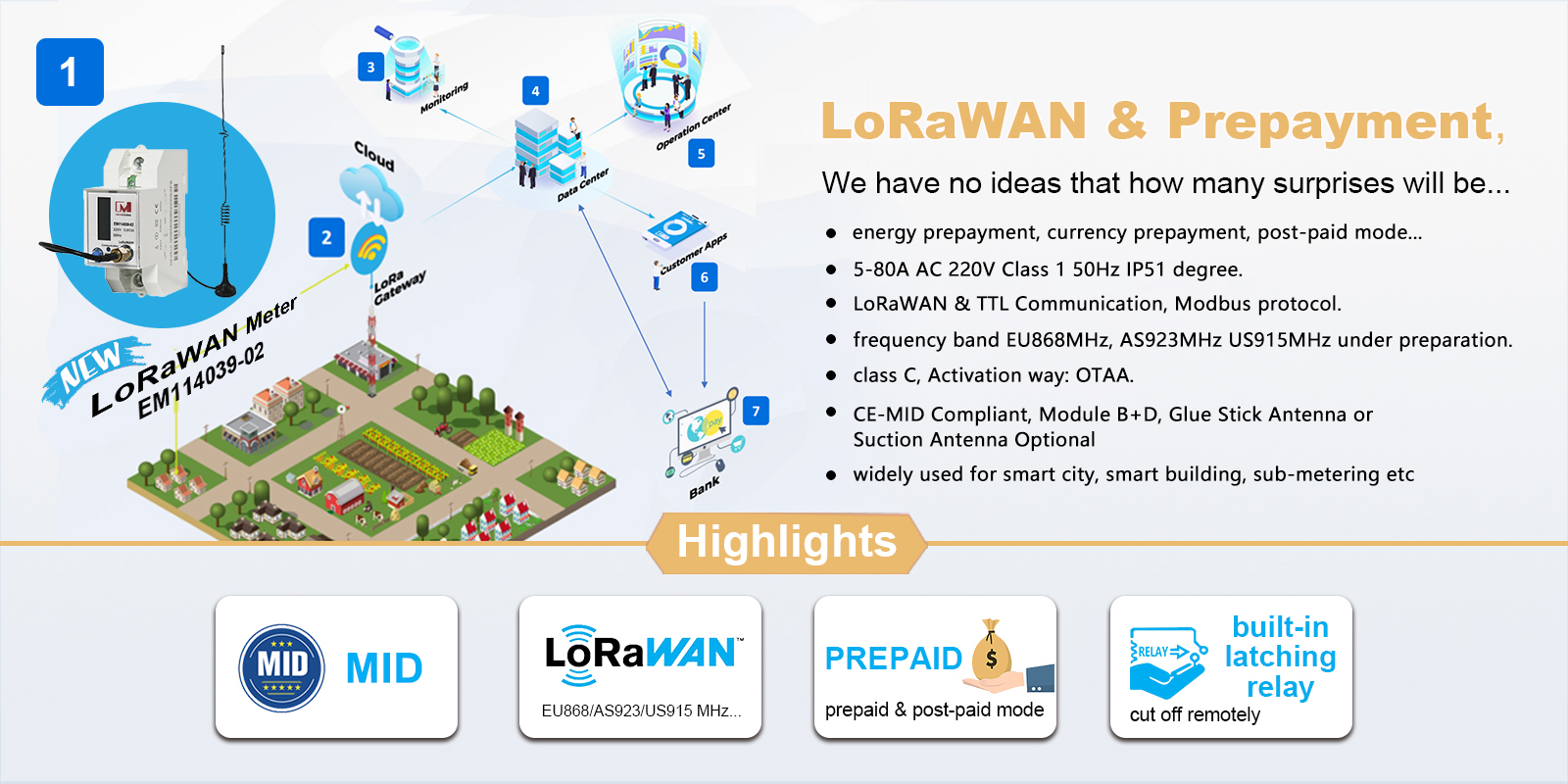

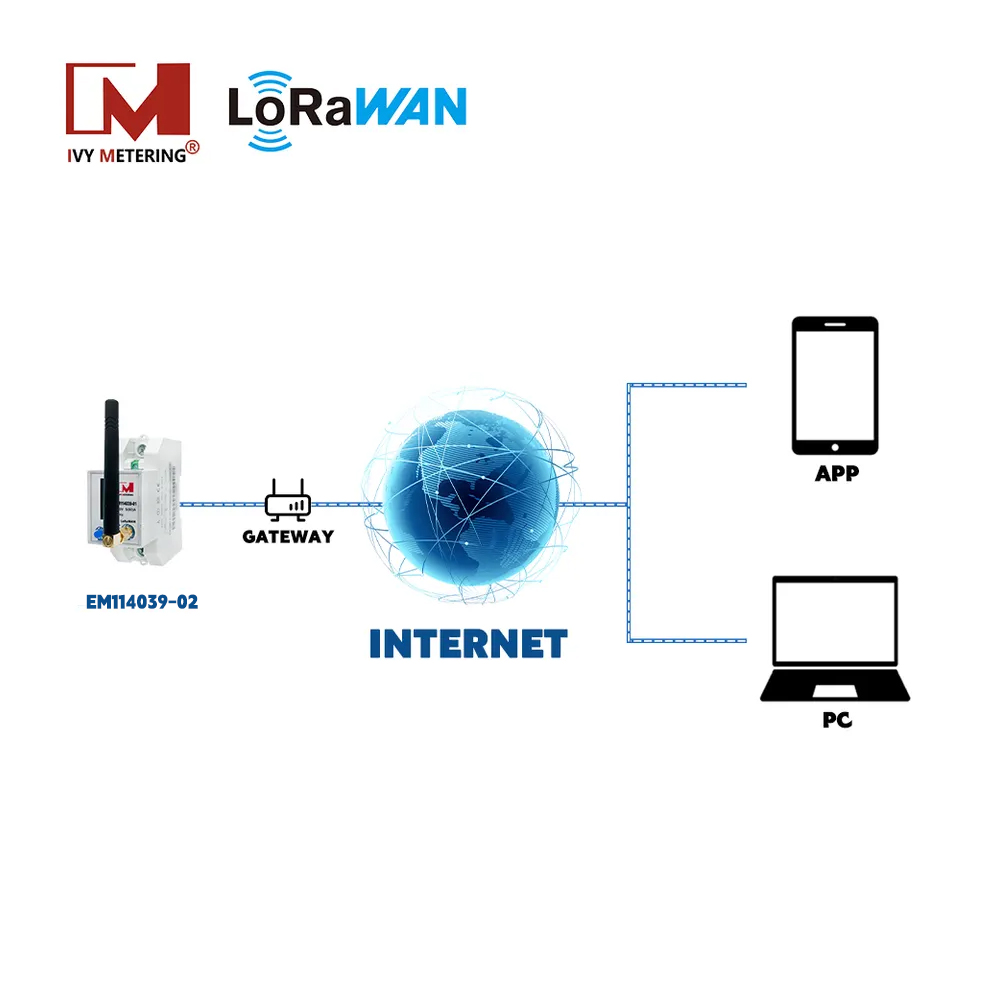

4.IVY LoRaWAN meter in Lorawan Architecture (from lorawan website, delete if not permitted)

EM114039-02 Single Phase LoRa IoT Prepaid Smart Energy Meters for LoRaWAN solutions

5. Why you should not miss IVY METERING Lorawan energy meter?

If you don't have IVY lorawan energy meter,

then you don't have IVY energy meter
