1. The Growing Need for Smart Energy Monitoring in Buildings
Energy efficiency has become a major focus for commercial buildings, residential complexes, industrial facilities, and public infrastructure across Europe. With increasing energy costs and stricter sustainability requirements, building owners and facility managers need accurate electricity data to understand consumption patterns and optimize energy usage.
Smart energy meters play an important role in modern energy management systems by collecting real-time electrical data and providing valuable insights for energy optimization. However, different projects have different communication requirements. Some buildings require flexible wireless solutions with easy installation, while others prefer reliable wired communication integrated with existing automation systems.
Among the most commonly used technologies, LoRaWAN energy meters and RS485 Modbus energy meters are two popular choices for smart building applications. Understanding their differences can help project developers select the right solution according to their specific needs.

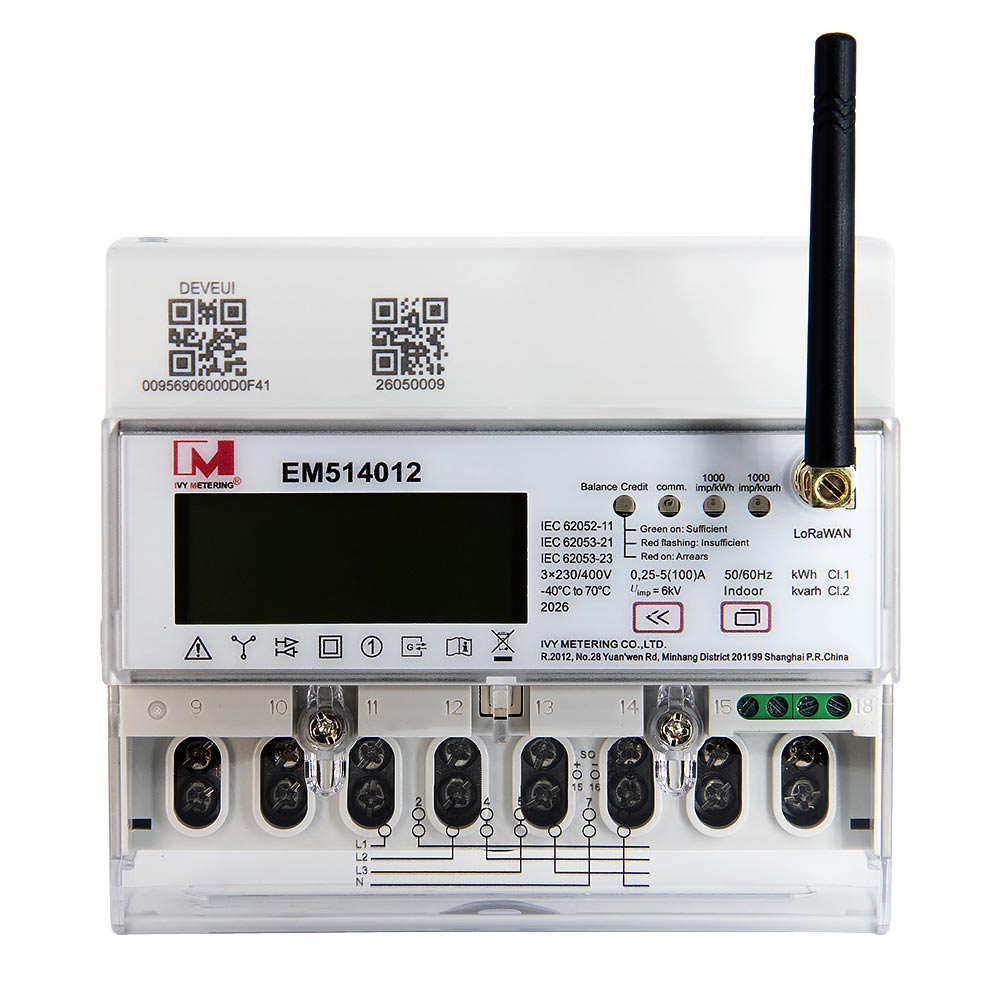

2. What Is a LoRaWAN Energy Meter?
A LoRaWAN energy meter is a smart electricity meter that uses LoRaWAN wireless communication technology to transmit energy data over long distances with low power consumption.
Unlike traditional wired meters, LoRaWAN meters do not require communication cables between every meter and the data collection system. The meter collects electrical parameters such as voltage, current, active energy, reactive energy, power factor, and power consumption, then sends the data wirelessly through a LoRaWAN gateway to a cloud platform or energy management system.
This makes LoRaWAN energy meters especially suitable for applications where meters are distributed across large areas, where cable installation is difficult, or where flexible system expansion is required.
2.1 When Should You Choose a LoRaWAN Energy Meter?
LoRaWAN energy meters are an excellent choice for smart building projects that require wireless and flexible energy monitoring.
For existing commercial buildings or retrofit projects, installing new communication cables can be time-consuming and expensive. LoRaWAN technology simplifies installation by reducing wiring requirements and allowing meters to be deployed in locations where traditional communication networks are difficult to establish.
LoRaWAN is also suitable for distributed energy monitoring applications. For example, apartment buildings, office complexes, shopping centers, and industrial parks may have many electricity measurement points located in different areas. Wireless communication allows these meters to connect efficiently through LoRaWAN gateways.
For projects requiring remote monitoring, cloud-based energy management, and IoT integration, LoRaWAN provides a flexible communication approach.

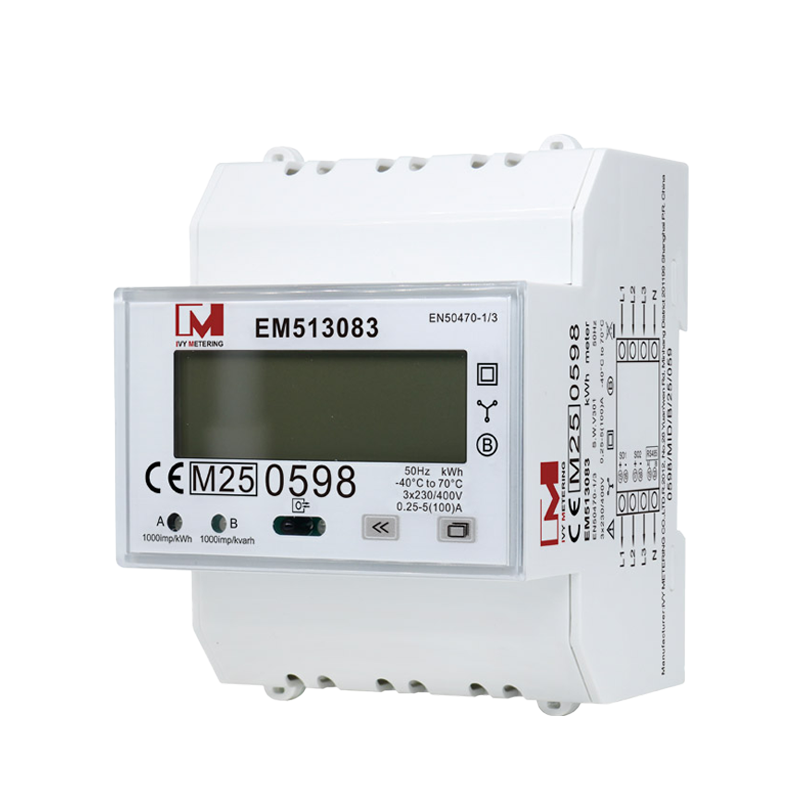

3. What Is an RS485 Modbus Energy Meter?
An RS485 Modbus energy meter is a widely adopted smart meter that communicates through the RS485 physical interface using the Modbus RTU communication protocol.
RS485 Modbus has been used in industrial automation, building management systems, and energy monitoring projects for many years due to its stability, reliability, and compatibility with various control systems.
Through an RS485 communication network, multiple energy meters can be connected to a data acquisition device, PLC, gateway, or building management system. This makes RS485 Modbus meters a practical choice for projects that already have wired communication infrastructure or require direct integration with existing automation systems.
3.1 When Should You Choose an RS485 Modbus Energy Meter?
RS485 Modbus energy meters remain one of the most popular solutions for professional energy monitoring systems.
For new buildings with planned electrical infrastructure, RS485 communication provides a reliable and cost-effective method for connecting multiple meters to a central management system.
Many building automation systems, industrial control platforms, and energy management systems already support Modbus communication. This makes RS485 meters easy to integrate into existing systems without additional communication conversion.
RS485 Modbus meters are also widely used in applications where stable local communication is required, such as electrical distribution monitoring, industrial energy management, and equipment-level power monitoring.
4. LoRaWAN vs RS485: Different Communication Methods for Different Applications
The main difference between LoRaWAN energy meters and RS485 Modbus meters is the way data is transmitted.
LoRaWAN energy meters use wireless communication, allowing meters to send data without additional communication wiring. This provides greater flexibility during installation, especially in existing buildings, multi-floor buildings, and large commercial facilities.
RS485 Modbus energy meters use wired communication, where meters are connected through communication cables. Although installation requires wiring, RS485 provides a stable and direct communication connection, making it highly suitable for fixed systems with centralized control requirements.
Neither technology is universally better than the other. The best choice depends on the building structure, installation conditions, system requirements, and future expansion plans.
5. Smart Building Applications: Choosing the Right Solution
In smart building projects, the choice between LoRaWAN and RS485 depends on the project environment and management requirements.
For a newly constructed commercial building with a dedicated communication network, RS485 Modbus meters may provide an efficient wired solution with direct system integration.
For an existing building renovation project where installing cables is difficult, LoRaWAN meters can significantly simplify deployment and reduce installation complexity.
Some advanced projects may even combine both technologies. For example, RS485 meters can be used for local electrical monitoring, while LoRaWAN communication can be applied for remote data transmission and cloud-based management.
A hybrid approach allows building operators to take advantage of both stable wired communication and flexible wireless connectivity.
6. Integration with Energy Management Systems
Both LoRaWAN and RS485 Modbus energy meters can support modern Energy Management Systems (EMS) to help users monitor and optimize electricity consumption.
RS485 Modbus meters typically connect to an EMS through gateways, PLC systems, or building automation controllers. LoRaWAN meters connect through LoRaWAN gateways and network servers before transferring data to cloud platforms.
Regardless of the communication method, the goal remains the same: collecting accurate energy data, improving visibility, and helping organizations make better energy management decisions.
7. The Future of Smart Building Energy Monitoring
As buildings become more intelligent and connected, energy monitoring solutions will continue to evolve. Wireless technologies such as LoRaWAN provide new possibilities for flexible IoT applications, while wired technologies such as RS485 Modbus continue to provide reliable solutions for professional automation systems.
For European smart building projects, selecting the right energy meter communication method is not about choosing one technology over another. It is about understanding project requirements and selecting the most suitable solution.
IVY METERING is a manufacturer and seller of RS485 electricity meters and LoRaWAN electricity meters. If you are interested in smart electricity meters, please contact us.
