What Is a CT Energy Meter?
A CT energy meter is an electricity meter that measures current through external current transformers, or CTs, instead of passing the full load current directly through the meter. The CT converts a high primary current into a lower secondary signal that the energy meter can measure.
This design is widely used for industrial and commercial electrical systems where the measured current is too high for direct-connected meters. CT energy meters are commonly used for factory energy monitoring, commercial buildings, distribution panels, solar power systems, equipment monitoring and energy management systems.
For smart metering projects, a CT energy meter can also provide communication functions such as RS485 and Modbus, allowing measured energy data to be transmitted to an EMS, BMS, data logger or other monitoring system.
Why Should You Use a CT Energy Meter Instead of a Direct-Connected Meter?
The main reason is current capacity.
A direct-connected energy meter is normally designed to carry the load current directly through its current terminals. When the electrical system has a much higher current rating, using an external CT allows the meter to measure the circuit without directly carrying the full primary current.
For example, an industrial distribution circuit may operate at several hundred amperes. Instead of connecting that high current directly to the meter, a CT can be installed around the conductor and provide a proportional secondary current to the CT energy meter.
This makes CT metering particularly suitable for high-current feeders, factory equipment, commercial buildings and electrical distribution systems.
How Do You Choose the Correct CT Ratio for an Energy Meter?
The CT ratio should match the expected current of the circuit being measured.
A CT ratio such as 200/5A means that when the primary current reaches 200A, the CT secondary output is 5A. The energy meter must therefore support the corresponding CT secondary input. Common CT secondary outputs include 5A and 1A, depending on the meter and application.
The important point is that the CT should not simply be selected according to the maximum possible current. The normal operating current also matters. If the CT ratio is much higher than the actual load, the system may spend much of its operating time at a relatively low percentage of the CT's rated current, which can affect measurement performance.
For this reason, the expected minimum, normal and maximum load current should be considered when selecting the CT ratio.
What CT Ratio Should I Use for a 100A, 200A or 400A Circuit?
There is no universal CT ratio for a particular circuit because the correct selection depends on the actual load profile, protection rating, measurement requirements and available CT options.
As a general engineering approach, the CT primary rating should be high enough for the maximum expected operating current while keeping the normal load within the CT's appropriate accuracy range. For example, a 200A/5A CT may be considered for a circuit operating around 200A, while a 400A/5A CT may be more appropriate for a circuit with a higher operating current.
The final CT ratio should always be confirmed against the energy meter's CT input specification and the actual electrical design.
Does the Accuracy of the CT Affect the Accuracy of the Energy Meter?
Yes. The CT and energy meter form a measurement system, so the accuracy of the complete system depends on both components.
A high-accuracy energy meter cannot completely compensate for an unsuitable or inaccurate CT. CT ratio error, phase-angle error, burden, wiring and operating current can all affect the final measurement result.
For general industrial energy monitoring, a standard metering CT may be sufficient. For billing, sub-metering or applications requiring higher measurement accuracy, a higher-accuracy CT and an appropriately specified energy meter may be required.
Therefore, when purchasing a CT energy meter, it is better to ask about the combined meter and CT accuracy requirements rather than looking only at the accuracy class printed on the energy meter.
What Is the Difference Between a Split-Core CT and a Solid-Core CT?
The main difference is the installation method.
A split-core CT can be opened and installed around an existing cable or conductor. This makes it particularly useful for retrofit projects because the existing conductor does not normally need to be disconnected simply to install the CT. Split-core CTs are therefore widely considered for existing factories, commercial buildings and energy monitoring upgrades.
A solid-core CT has a closed magnetic core and normally requires the conductor to pass through the CT during installation. It can be a suitable choice for new electrical panels where the installation can be planned in advance.
The better choice depends on the project. For an existing electrical system where installation time and electrical interruption are major concerns, a split-core CT energy meter can be more convenient. For a new panel installation, a solid-core CT may be a practical option.
How Do I Choose the CT Window Size?
The CT window must be large enough to fit around the actual conductor or busbar being measured.
This is a physical compatibility requirement that is sometimes overlooked when selecting a CT energy meter. A CT with the correct current ratio is still unsuitable if its internal opening cannot accommodate the cable or busbar.
Before ordering, check the conductor diameter, busbar dimensions, insulation thickness and the required installation space. For split-core CTs, the closing mechanism should also be compatible with the installation environment.
In practice, CT selection should therefore consider both electrical rating and physical dimensions.
What Is CT Burden and Why Does It Matter?
CT burden refers to the load connected to the CT secondary circuit, including the energy meter input and the resistance of the connecting wires.
If the total burden is too high for the CT, the CT may not maintain its specified measurement performance. Cable length, cable resistance and the input requirements of connected devices should therefore be considered when designing the CT secondary circuit.
For a simple CT energy meter installation, the meter manufacturer should provide the required CT input specification so that the CT and meter can be correctly matched.
How Do I Know Whether a CT Energy Meter Is Compatible With My Smart Metering System?
Communication compatibility is just as important as electrical compatibility for a smart energy monitoring project.
If the meter needs to communicate with an EMS, BMS, PLC, gateway or industrial controller, check whether the energy meter supports the required communication interface and protocol.
RS485 with Modbus RTU is a common option for industrial energy monitoring because it allows the meter to transmit electrical parameters and energy data to a local control or data acquisition system.
Before purchasing, confirm the communication interface, protocol, register map, baud rate options, meter address configuration and the number of meters that need to be connected to the communication network.
A CT energy meter with RS485 and Modbus can therefore be a suitable choice when the project requires both electrical measurement and remote data collection.
Should I Choose a Single-Phase or Three-Phase CT Energy Meter?
The choice depends on the electrical system being monitored.
A single-phase CT energy meter is appropriate when the project requires measurement of a single-phase circuit. A three-phase CT energy meter is more suitable for three-phase distribution systems, industrial equipment, commercial buildings and three-phase power monitoring.
For three-phase applications, it is important to confirm whether the electrical system is three-phase three-wire or three-phase four-wire and select a meter designed for the corresponding wiring configuration.
For industrial projects, a three-phase multifunction CT energy meter can provide more than accumulated energy. Depending on the model, it may also measure voltage, current, active power, reactive power, power factor and frequency.
What Features Should I Look for in a Smart CT Energy Meter?
The right feature set depends on the purpose of the project.
For basic energy monitoring, the most important requirements may be energy measurement, current measurement and reliable communication.
For industrial energy management, it can be useful to have voltage, current, active and reactive power, power factor, frequency, demand and import/export energy measurement.
For smart metering applications, communication such as RS485 and Modbus can be important because the meter may need to send data to an upper-level monitoring system.
For solar and distributed energy applications, bidirectional measurement can also be important because the system may need to distinguish between imported and exported energy.
The key is to define the required measurement parameters and communication functions before selecting the meter rather than choosing a meter based only on its current rating.
Can a CT Energy Meter Measure Solar Power or Bidirectional Energy?
Yes, if the selected meter supports the required bidirectional measurement function.
In a solar power system, electrical energy may flow from the grid to the load or from distributed generation back toward the grid. A bidirectional energy meter can distinguish between import and export energy, which makes it useful for photovoltaic systems, self-consumption monitoring and other distributed energy applications.

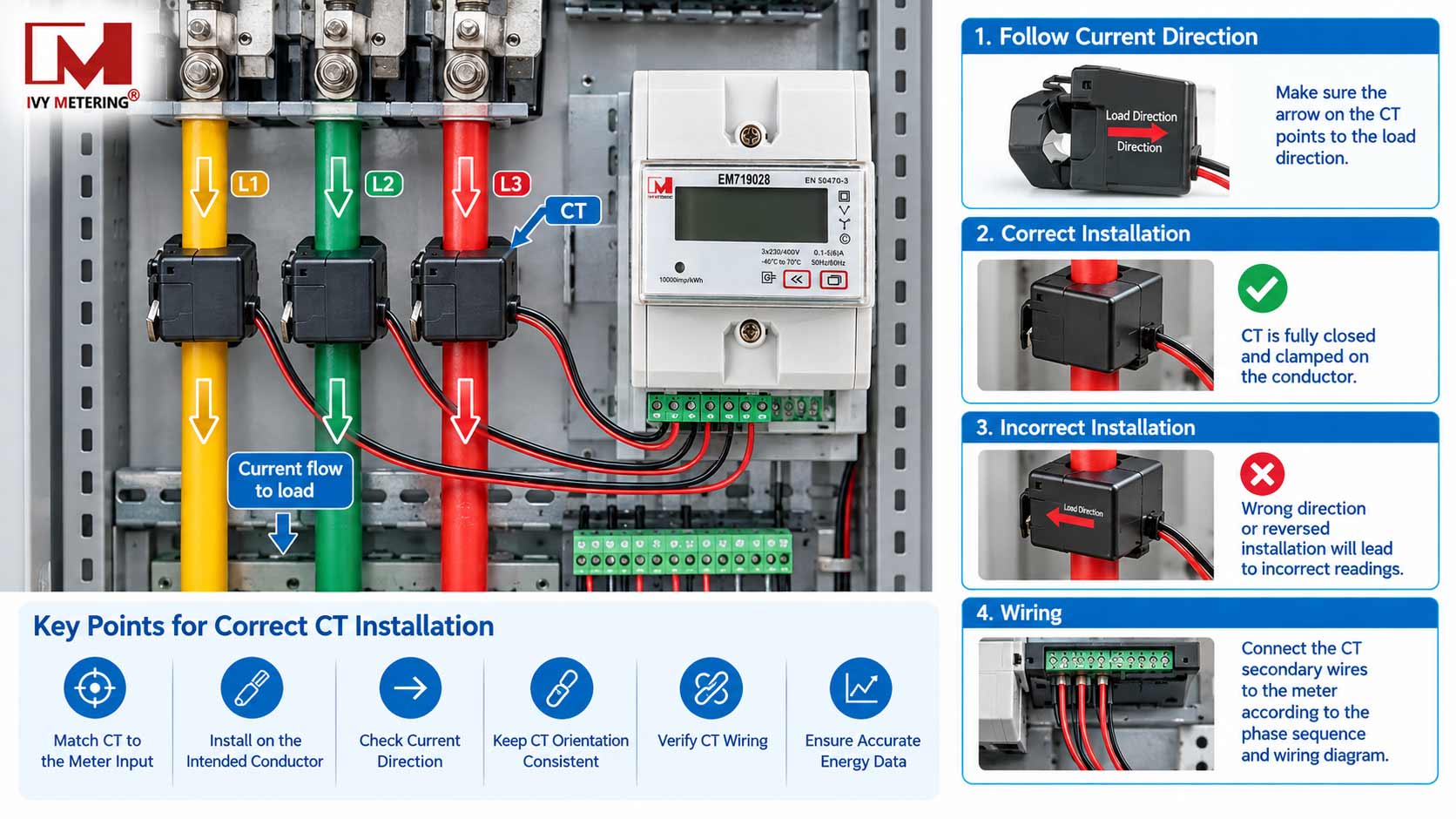

However, the CT installation direction and wiring must follow the meter manufacturer's requirements. Incorrect CT polarity or phase association can result in incorrect power or energy direction readings.
For solar projects, buyers should therefore confirm not only the CT ratio but also whether the meter supports import/export energy and the required wiring configuration.
Is a CT Energy Meter Suitable for Factory Energy Monitoring?
Yes. CT energy meters are particularly suitable for factory and industrial energy monitoring because industrial electrical systems often contain high-current feeders and multiple machines.
A CT meter can be installed on the main incoming line, distribution feeders, production lines or individual high-consumption machines. With RS485 and Modbus communication, the measured data can be collected by an energy management system for energy analysis and equipment monitoring.
This makes CT energy metering useful for identifying high-energy-consuming equipment, comparing production-line consumption and improving overall energy management.
What Information Should I Give a CT Energy Meter Supplier?
A supplier can usually recommend a suitable CT energy meter much more accurately if the project information is clear.
The most useful information includes the electrical system type, such as single-phase or three-phase, the rated voltage, expected current range, maximum current, CT ratio requirements, conductor or busbar dimensions, required accuracy, CT installation method and communication requirements.
For a smart metering project, it is also useful to provide the application, required quantity, communication protocol, whether bidirectional measurement is required and whether the meters need to connect to an existing EMS, BMS, PLC or gateway.
Providing this information at the quotation stage can reduce the risk of selecting a meter that is electrically compatible but unsuitable for the actual installation.
What Is the Best CT Energy Meter for an Industrial Project?
There is no single best CT energy meter for every industrial project. The correct model is the one that matches the electrical system, CT characteristics, measurement accuracy and communication architecture of the project.
For a typical industrial smart metering application, buyers should first confirm the voltage and phase configuration, then determine the expected current range and CT ratio. After that, the CT accuracy, physical installation method, meter accuracy, communication protocol and required measurement parameters should be checked.
For projects requiring remote monitoring, an RS485 Modbus CT energy meter can be a practical solution. For solar or distributed energy projects, bidirectional measurement may be an additional requirement.
The most reliable selection process is therefore to specify the complete metering application first and select the CT energy meter based on those requirements.
How Do I Avoid Common CT Energy Meter Selection Problems?
The most common problems usually come from treating the energy meter and CT as separate products rather than as one measurement system.
An incorrect CT ratio can reduce measurement performance at normal load. An unsuitable CT window can make installation impossible. An incompatible CT secondary output can prevent the meter from reading correctly. Excessive secondary burden can also affect CT performance.
Communication problems are another common issue in smart metering projects. A meter may support RS485 but still require confirmation of the actual communication protocol, register map and data format before it can integrate with an existing system.
For this reason, CT energy meter selection should always be based on the complete application rather than only the meter's nominal current or price.
What Is the Simple Way to Choose a CT Energy Meter?
The simplest approach is to answer six questions before requesting a quotation.
What electrical system needs to be measured? What is the normal and maximum current? What CT ratio and secondary output are required? What accuracy is needed? How will the meter be installed and what conductor size must the CT accommodate? How will the meter communicate with the monitoring system?
Once these questions are answered, it becomes much easier to identify the appropriate CT energy meter.
For industrial, commercial, solar and smart energy monitoring projects, a correctly matched CT + energy meter + communication system provides a more reliable foundation for accurate energy data collection and long-term monitoring.
