EV PV Energy Meter

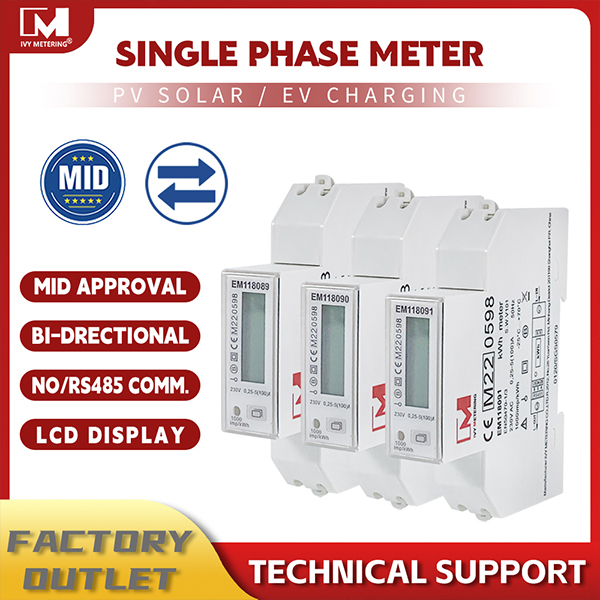

EM118089 90 91 1 Phase Din Rail Mounted RS485 Bidirectional Power Meter With PV Solar Monitoring System

Net metering is an agreement that allows the solar PV system owner to sell excess solar energy to the utility company or buy deficit energy from the utility company using a meter to track this energy exchange. EM118089/90/91-this series of power meter for clean energy, they are compact and performant din rail meter with max current of 100A and optional functions.

Product Details

1.Introduction

Net metering is an agreement that allows the solar PV system owner to sell excess solar energy to the utility company or buy deficit energy from the utility company using a meter to track this energy exchange. EM118089/90/91-this series of power meter for clean energy, they are compact and performant din rail meter with max current of 100A and optional functions.

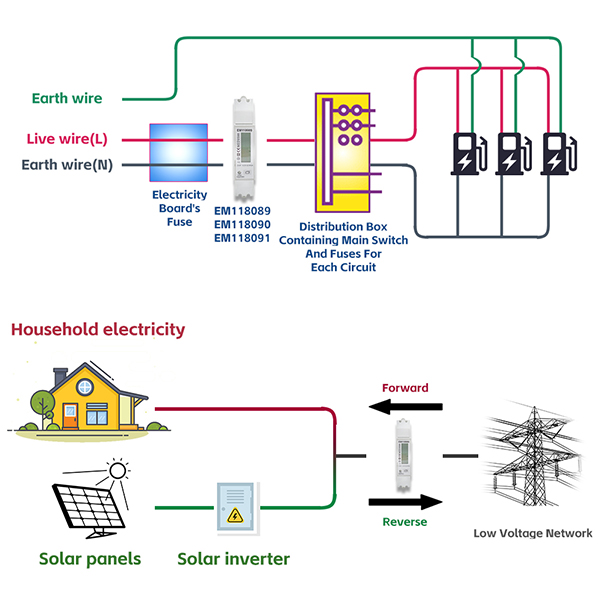

These bi-directional meters from IVY METERING display three readings: Import,export and Net (import deducted from Export). Widely used in the fields of EV charging and PV solar power generation.


EM118089 90 91 1 Phase Din Rail Mounted RS485 Bidirectional Power Meter With PV Solar Monitoring System



EM118089 90 91 1 Phase Din Rail Mounted RS485 Bidirectional Power Meter With PV Solar Monitoring System

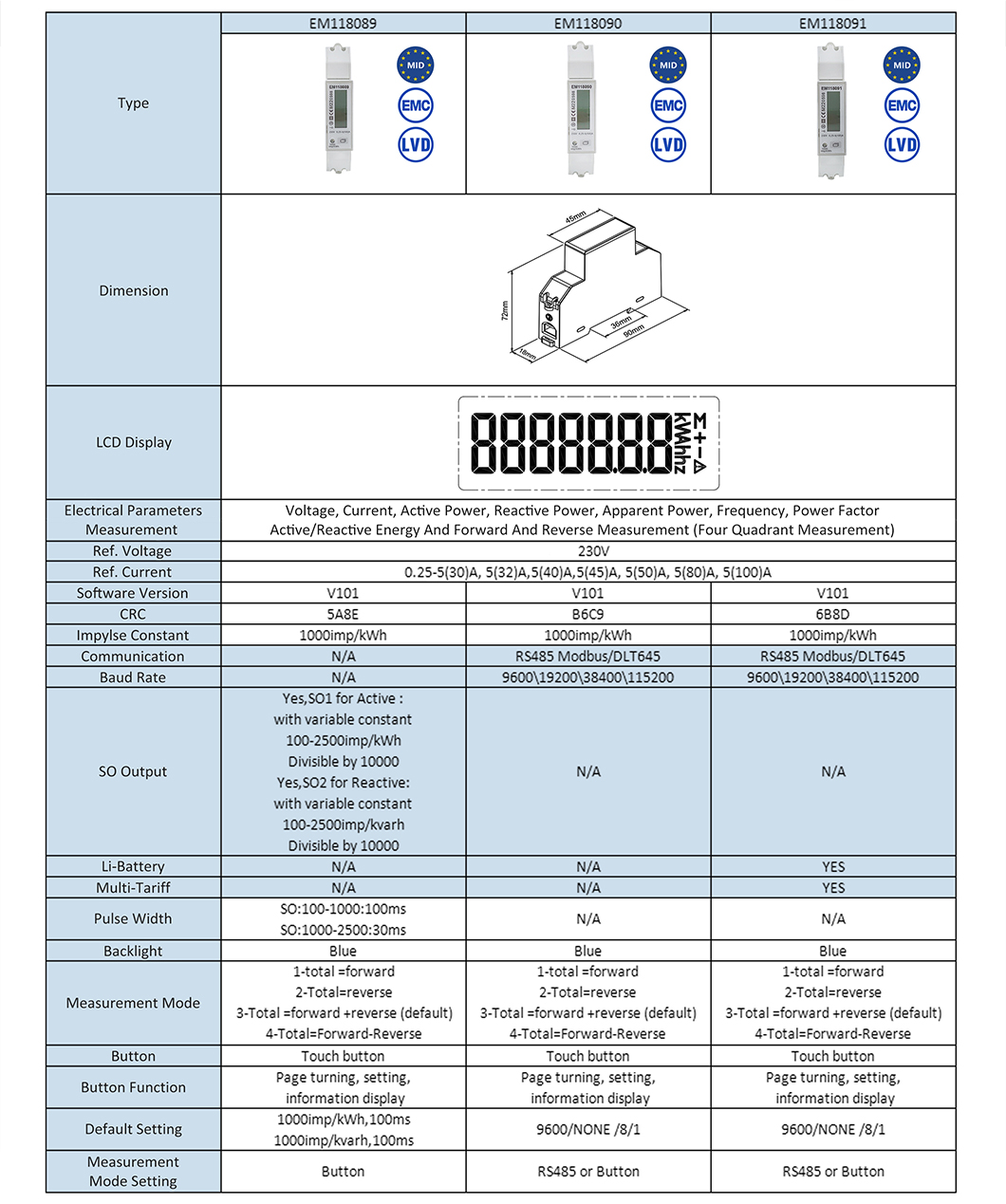

2. Function Description

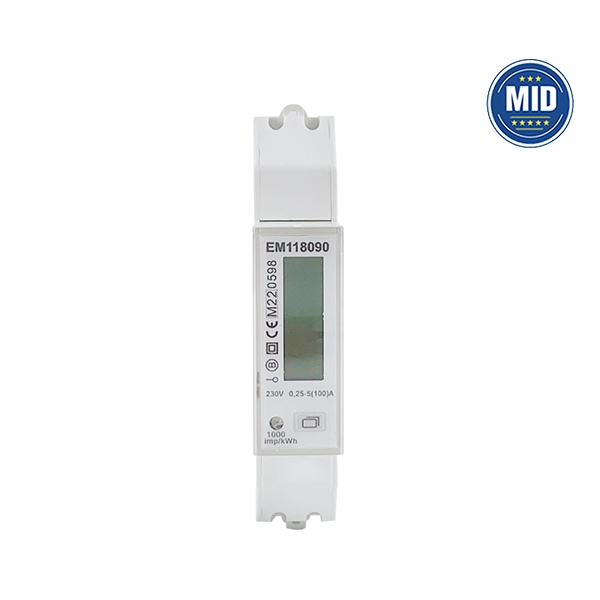

1 DIN module which has a clear display giving Import, Export and Total power plus voltage, frequency and Modbus settings.
Easy to read via Modbus since the registers

Works well and is easy to install

Sub metering:This energy monitoring tool provides a detailed breakdown of a single circuit’s energy consumption.

Ideal for monitoring individual circuits and accurate sub-billing by accurately measuring and monitoring the energy usage

(2) Wide voltage range, 92V-230V, The lowest voltage can reach 40% of the standard voltage (EM118090)

(3) Active & Reactive, negative & positive Measurement

(4) RS485 Communication, SO Output

(5) Accuracy Class: Class B

(6) LCD Backlight, Multi-tariff, MID Approved, CE-EMC CE-LVD Compliant
