These bi-directional meters from IVY METERING display three readings: Import,export and Net (import deducted from Export). Widely used in the fields of EV charging and PV solar power generation.
1.Brief Introduction

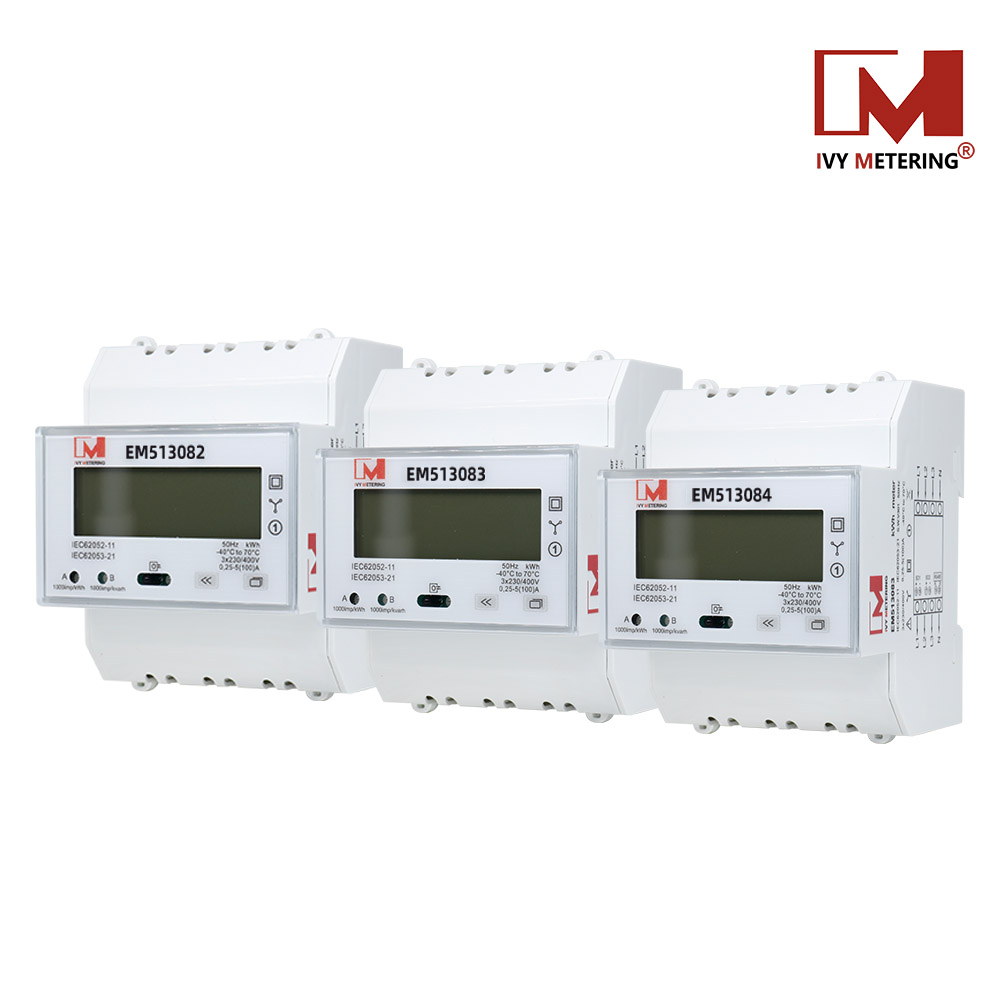

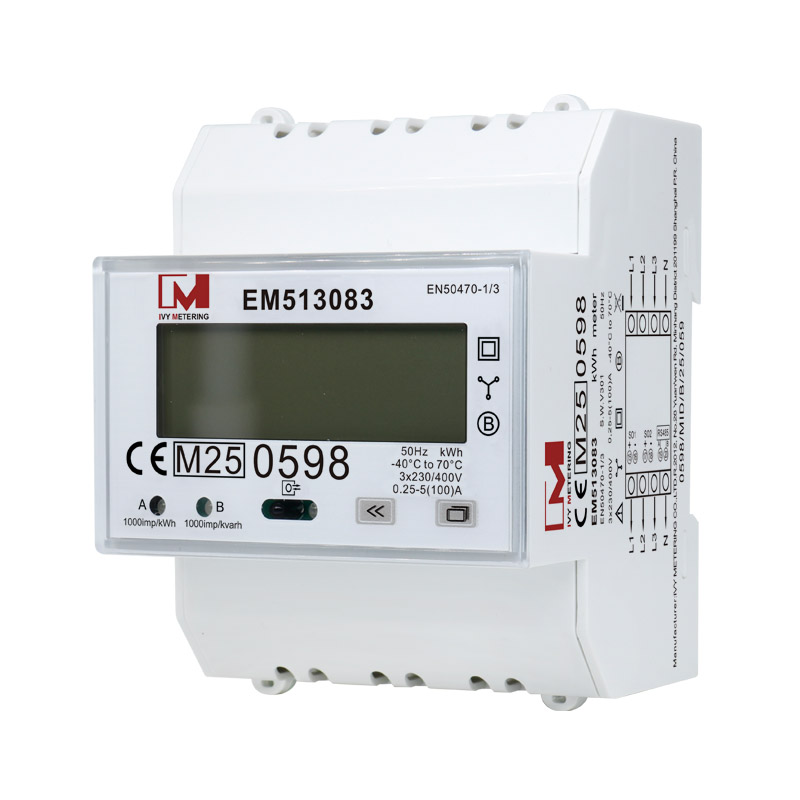

Net metering is an agreement that allows the solar PV system owner to sell excess solar energy to the utility company or buy deficit energy from the utility company using a meter to track this energy exchange. EM513082/83/84-this series of power meter for clean energy, they are RS485 din rail meter with Multi Tariff functions.
These bi-directional meters from IVY METERING display three readings: Import,export and Net (import deducted from Export). Widely used in the fields of EV charging and PV solar power generation.

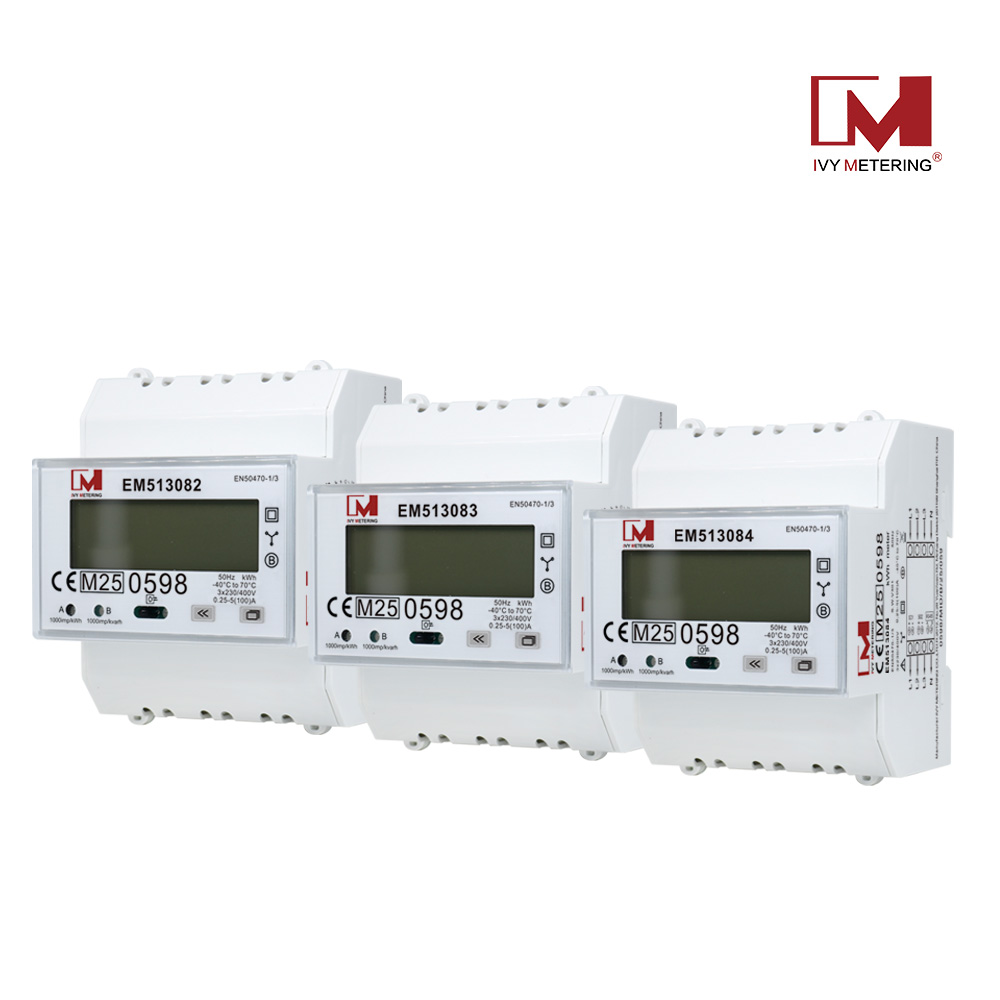

Model | EM513084 | EM513083 | EM513082 |
Pulse Constant | 1000imp/kWh 1000imp/kvarh | 1000imp/kWh 1000imp/kvarh | 1000imp/kWh 1000imp/kvarh |
Communication | IR | IR,RS485 Modbus/DLT645 | IR,RS485 Modbus/DLT645 |
Baud Rate | N/A | 9600\19200\ 38400\115200 | 9600\19200\ 38400\115200 |
SO Output | SO1 refers to the total active power (default) or active/reactive forward power (optional) The pulse constant can be set and is divisible by 96000 | ||
SO2 refers to total reactive power (default) or active/reactive reverse power (optional) The pulse constant can be set and is divisible by 96000 | |||
Backlight | Blue | Blue | Blue |
Lithium Battery | N/A | N/A | YES |
Multi-Tariff | N/A | N/A | YES |
Measurement model | 1.Total=Forward 2.Total=Reverse 3.Total=Forward +Reverse (Default) 4.Total=Forward-Reverse | ||
Button | Touch Button | ||
Button Function | Left button: Turn the page, Right button: Turn the page and set the information display | ||
Default setting | 1000imp/kWh 1000imp/kvarh | 1000imp/kWh 1000imp/kvarh 9600/NONE/8/1 | 1000imp/kWh 1000imp/kvarh 9600/NONE/8/1 |
Metering Mode Setting | Button | RS485 or Button | RS485 or Button |
2. Function Description
(1) 0.25(30A/32A/40A/45A/50/80A/100A),
(2) Wide voltage range
(3) Active & Reactive, negative & positive Measurement
(4) IR and RS485 Communication, SO Output
(5) Accuracy Class: Class B
(6) LCD Backlight, Multi-tariff, MID Approved
