EV PV Energy Meter

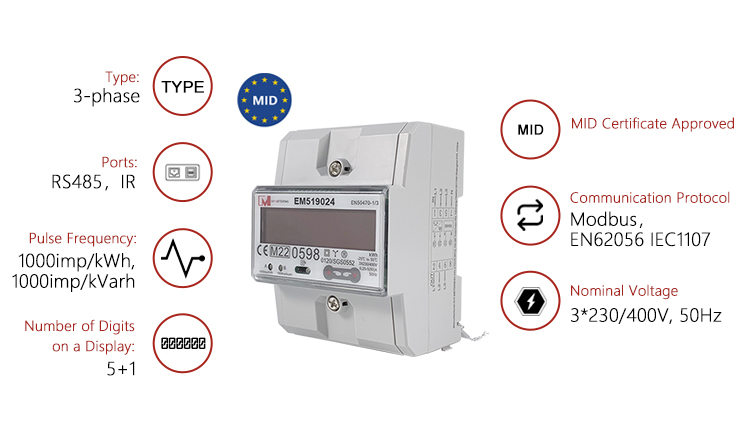

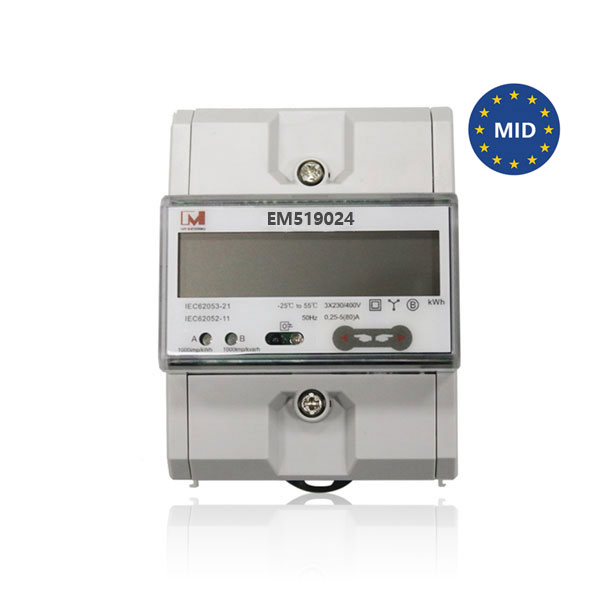

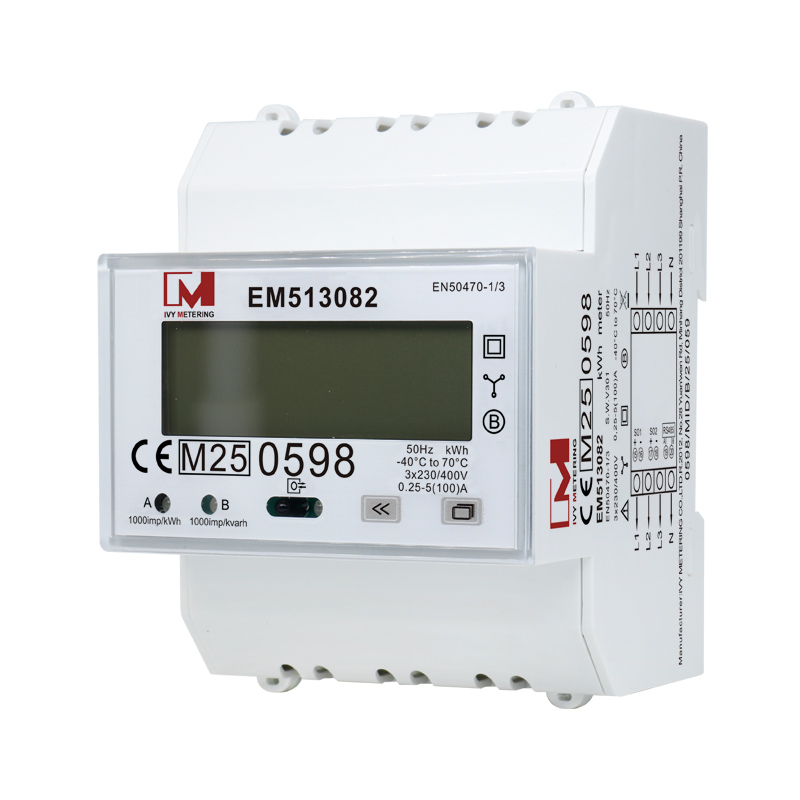

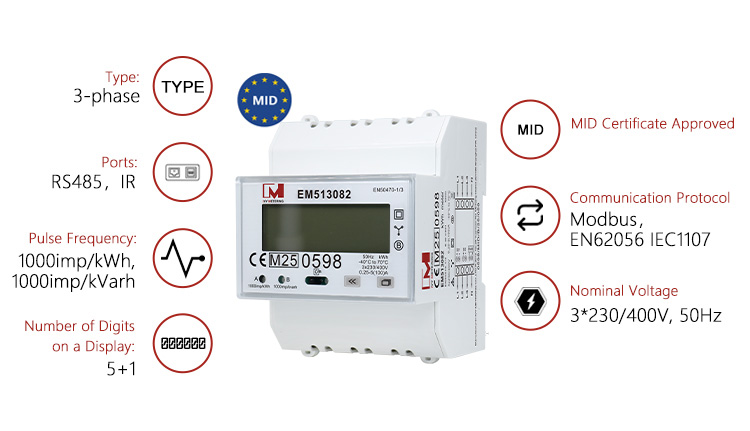

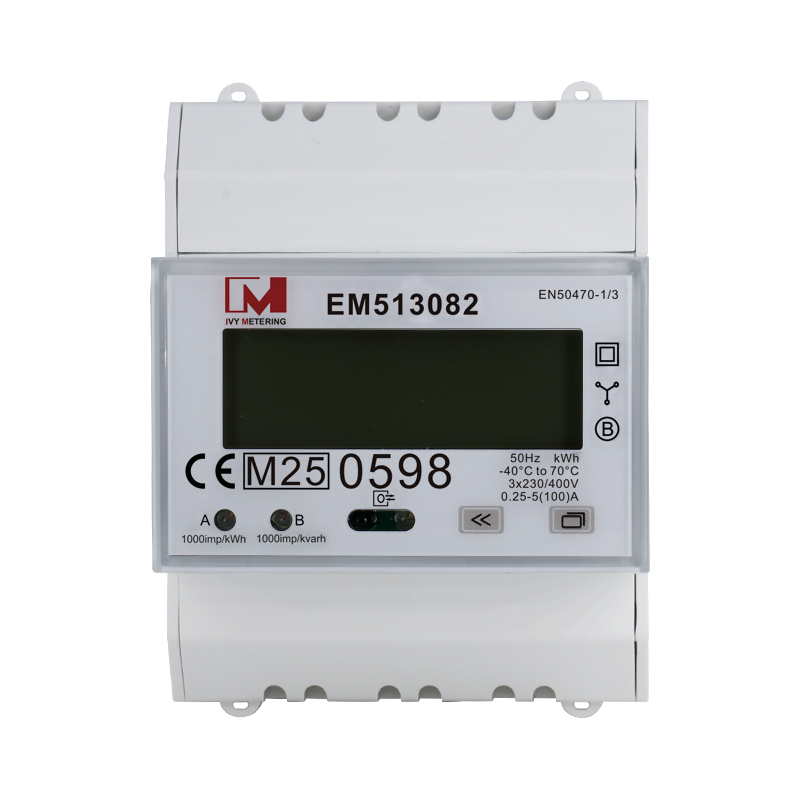

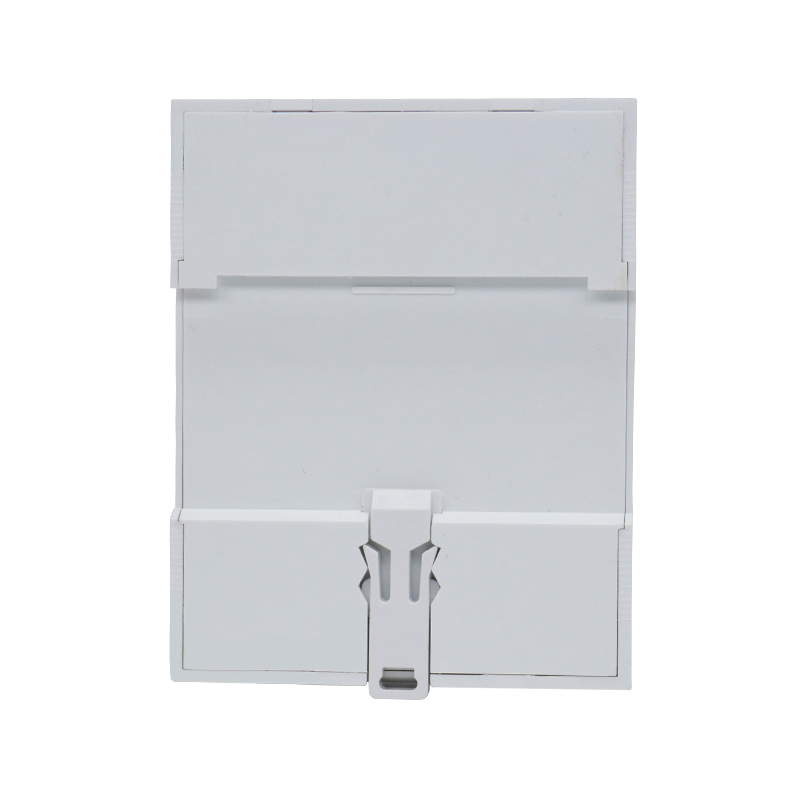

EM519024 Integrated MID counter embedded energy meter EV charging kwh meter RS485 Modbus Bidirectional energy meter

EM519024 is a three phases Modbus RS485 energy tracker. It supports Infrared and RS485 Modbus Communication that complies with EN50470-1/3 and Modbus ProtocolThis RS485 Smart Meter not only measures active and reactive energy, but also can be set 3 measurement modes according to the synthesis code.The energy meter Modbus support max demand and four optional tariff like friendly hours. The LCD display meter has 3 display patterns: pressing buttons, scroll display and automatic display through IR. Additionally, this meter has features like anti-tamper, high accuracy, compact size and easy installation.With built-in Modbus communication and display always backlighted, these meters are ideal to be installed for billing purposes in Electric Vehicle Charging Station (EVCS) and even more applications.

  • 1. Brief Introduction

    EM519024 is a three-phase Modbus RS485 meter. It has Infrared and RS485 Modbus Communication that complies with EN50470-1/3 and Modbus ProtocolThis RS485 Smart Meter not only measures active and reactive energy but also can be set 3 measurement modes according to the synthesis code. The energy meter Modbus supports max demand and four optional tariff like friendly hours. The LCD display meter has 3 display patterns: pressing buttons, scroll display and automatic display through IR. Additionally, this meter has features like anti-tamper, high accuracy, compact size and easy installation. With built-in Modbus communication and display always backlighted, these meters are ideal to be installed for billing purposes in Electric Vehicle Charging Station (EVCS) and even more applications.


    2. About RS485

    The RS485 energy meter is suitable for apartments, rental houses, commercial buildings, small factories, etc. As long as the wiring is convenient, the RS485 Modbus Meter can be the first choice!

    A.RS485 communication is suitable for the centralized installation of electric meters in a small or medium scale

    B. The price of Modbus Electricity Meter is affordable. If meters come with RS485 interface, the communication module inside is not expensive, so the unit price will be much more affordable

    C. The concentrator investment is small. In an ideal situation, the concentrator can be connected to 256 sub-meters. If the distance between the concentrator and the electric meter is too long, the construction cost will need to be a bit higher.

    D. RS485 transmission has the characteristics of high data stability and fast transmission speed. It is widely suitable for most metering cases.

  •

    3. Function Description

  • EM519024 UL2735 Renewable Energy EV charging kwh meter EV energy meter

    (1) Measurement of active and reactive energy, forward and reverse energy, voltage and current

    (2) IR Communication EN62056 (IEC1107) protocol; RS485 Communication Modbus protocol

    (3) Class B (kWh) to EC 2004/22/EC

    (4) Four tariff optional, support setting friendly hours during holiday or weekend

    (5) Tamper detection function

    (6) 3 LCD display patterns: pressing buttons, scroll display and automatic display through IR

    (7) LCD displays various events such as total energy, active and reactive energy, 3 phases voltage, 3 phases current, power, power factor, frequency and demand

    (8) The built-in real-time clock allows energy consumption to be measured with different tariff zones.
    (9) The meter is equipped with RS-485 communication interface with Modbus RTU protocol allowing remote reading and configuration of the meter.

  • (10) CE, MID certified, ROHS, IEC 50470-1, IEC 50470-3 , IEC 62053-21 ,IEC 62052-11 ,IEC 61010-1, IEC 60068 Approvals



    4. Technical Parameters

    EM519024

    3 Phase RS485 Modbus Meter for EV Charger

    Ref. voltage

    3*230/400V

    Ref. current

    0,25-5(30)A, 5(32)A,5(40)A,5(45)A, 5(50)A,5(80)A

    Impulse constant

    1000imp/kWh,1000imp/kVarh

    LCD display

    LCD6+2

    Operation temp.

    -20~+70℃

    Average humidity

    85%

    Relative humidity

    90%

    Ref. frequency

    50Hz

    Accuracy class

    Class B

    Starting current

    0.004Ib

    Creeping

    Anti-creep logistic design

    Power consumption

    ≤ 2W,<10VA

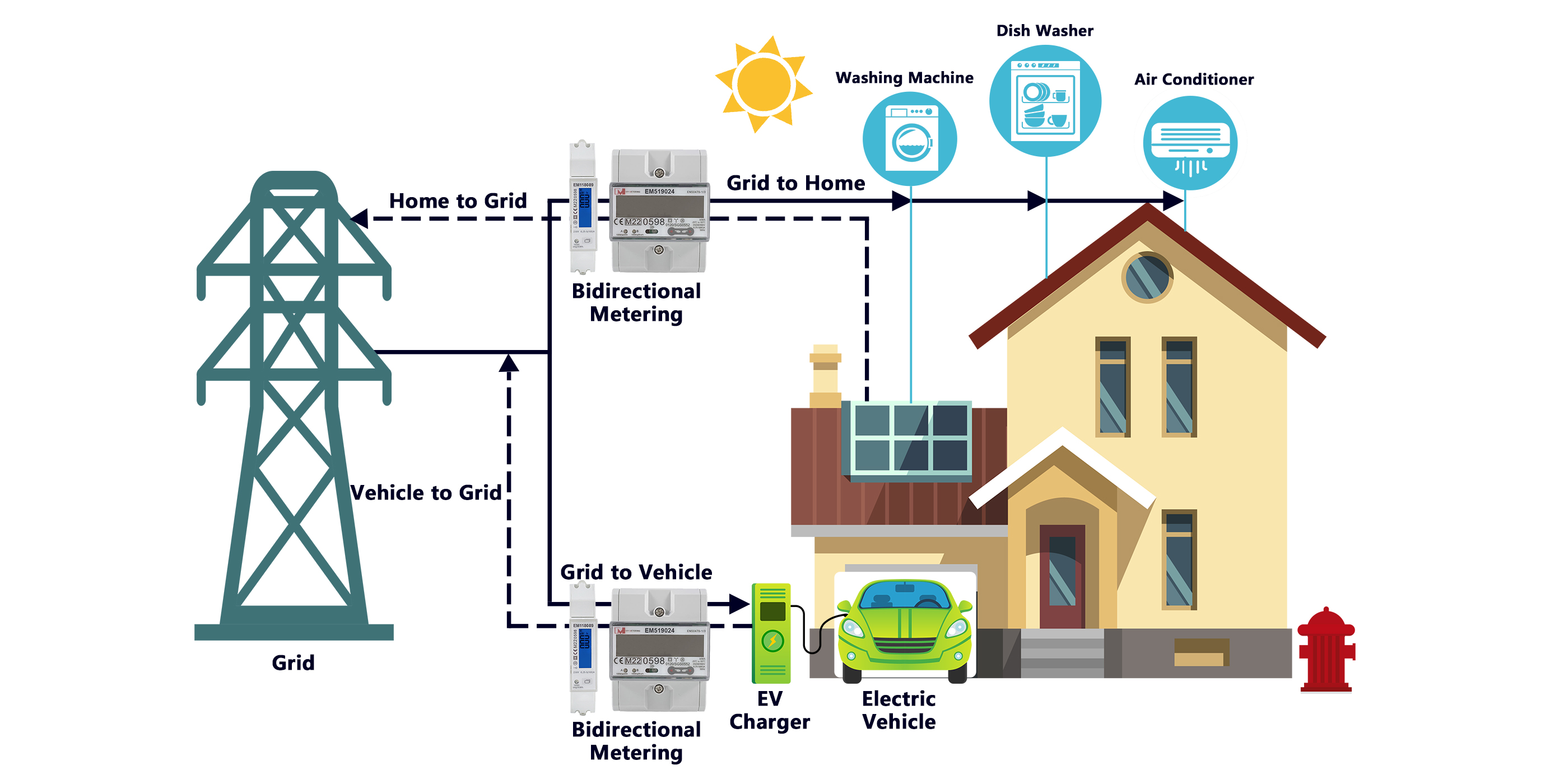

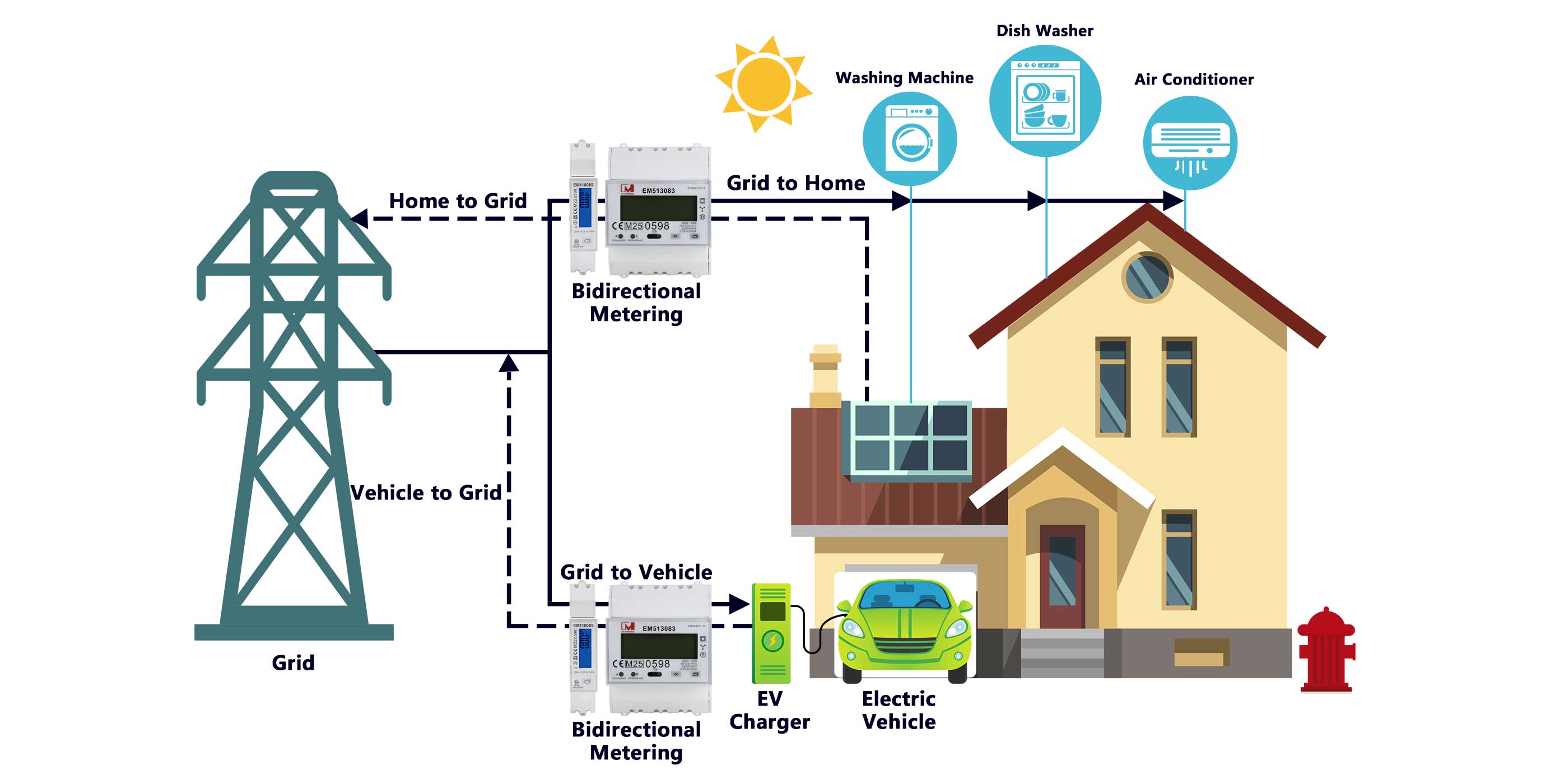

5. Bidirectional metering for EV charging and solar system

EM519024 EV charging kwh meter RS485 Modbus Bidirectional energy meter
