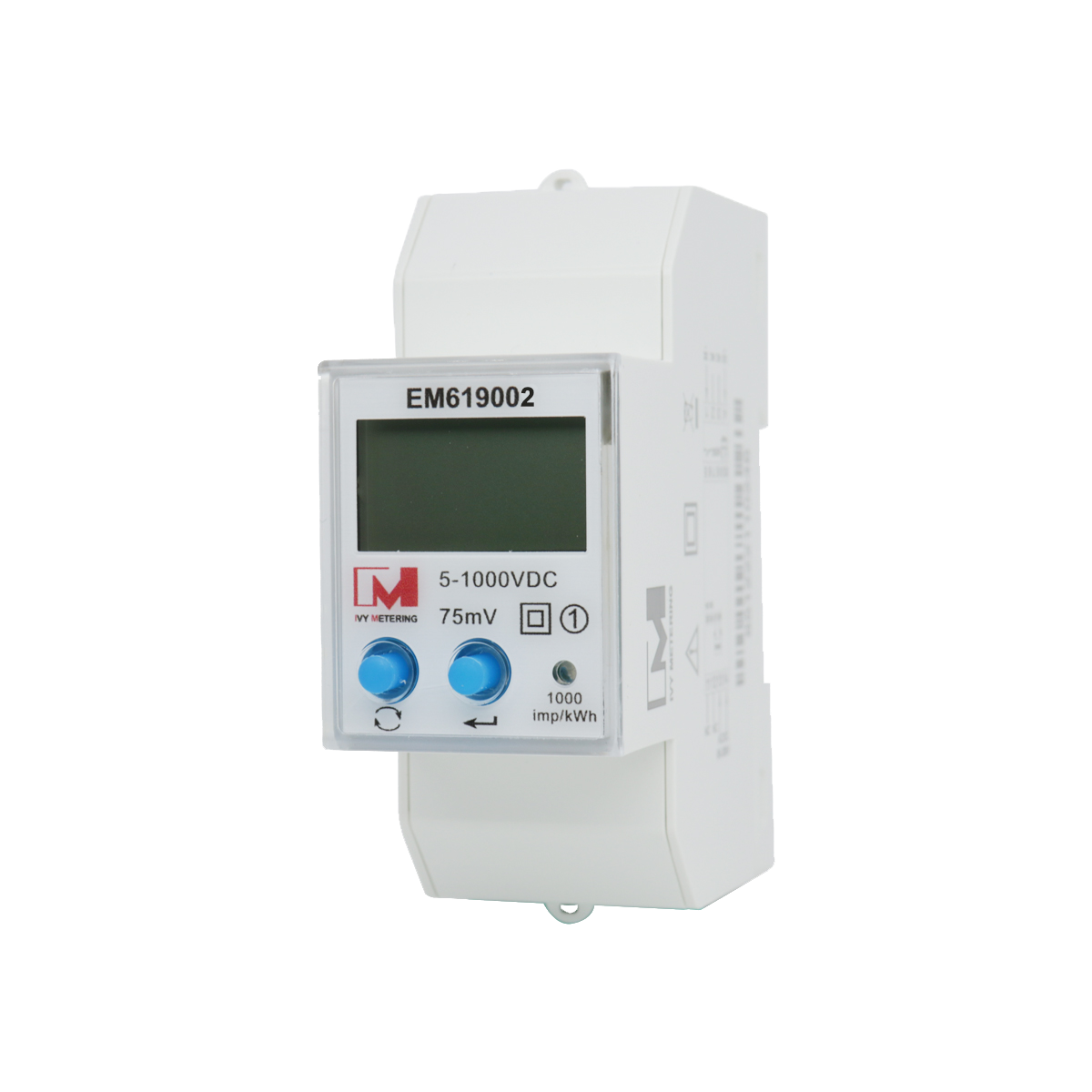

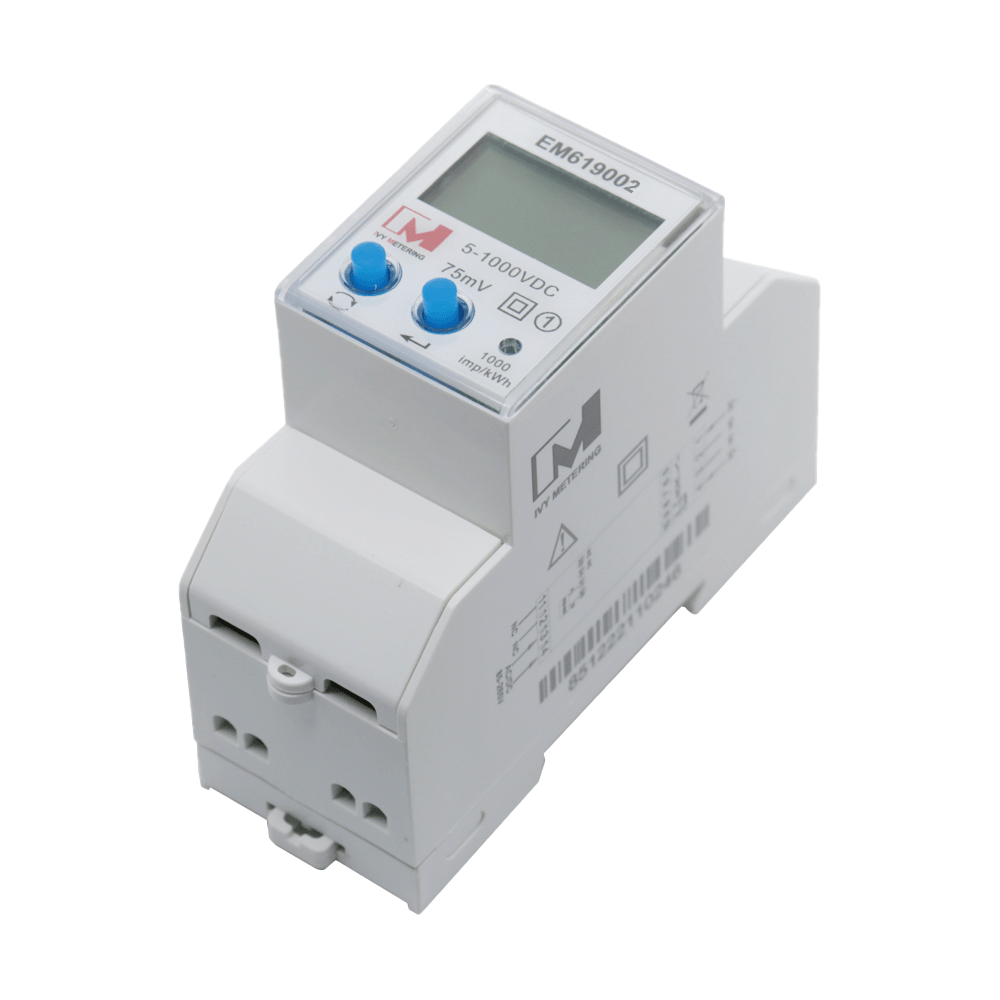

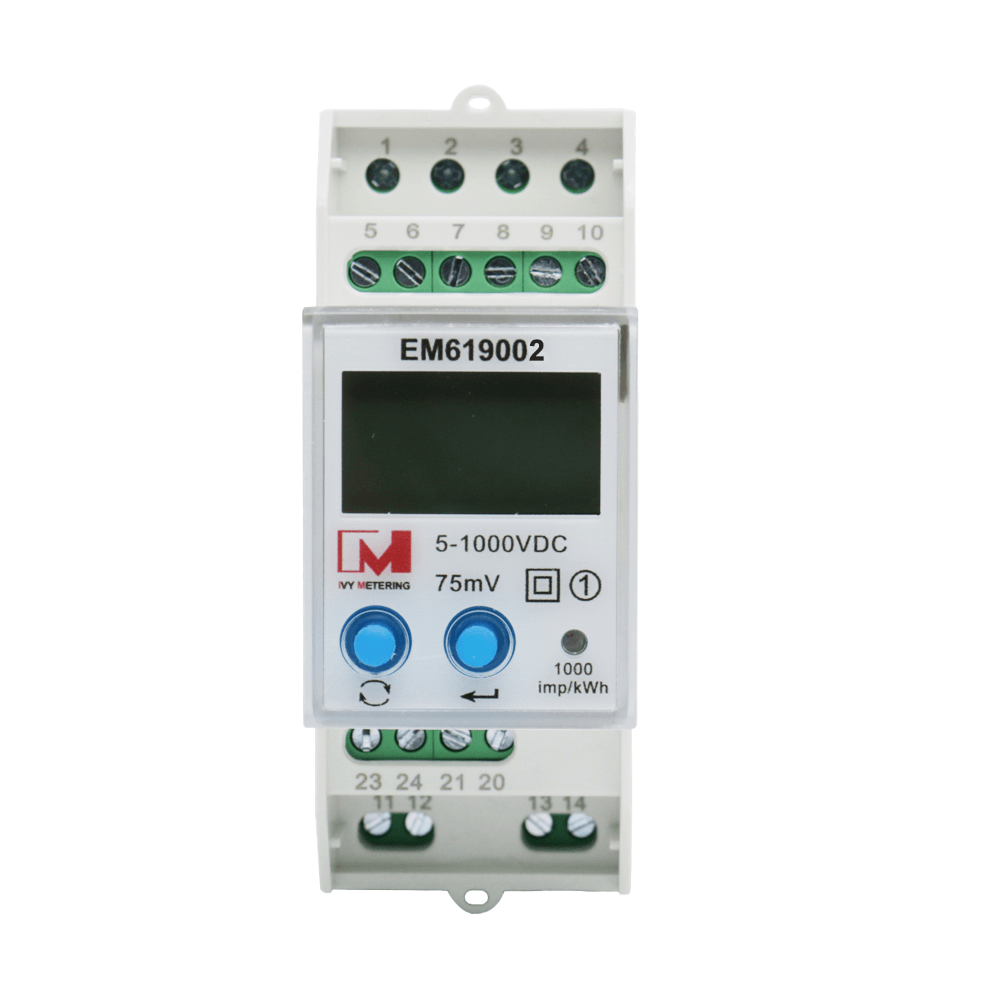

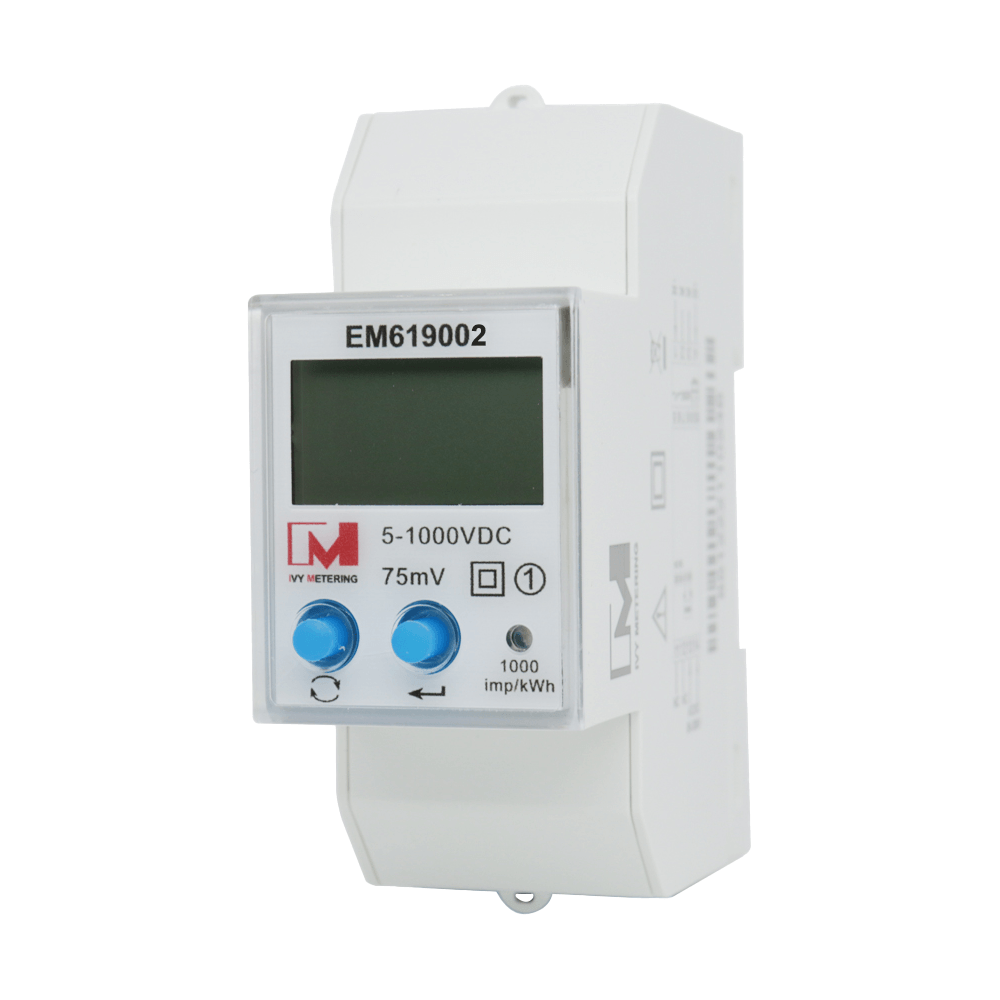

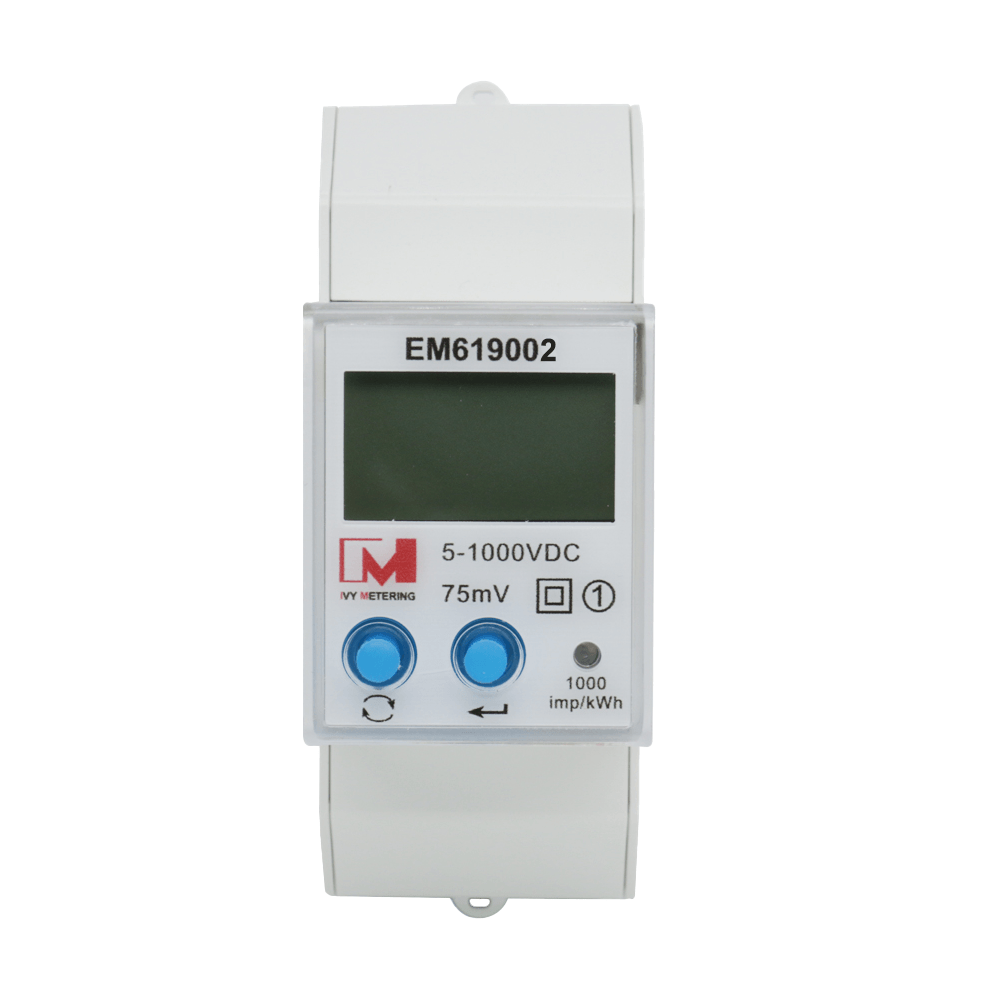

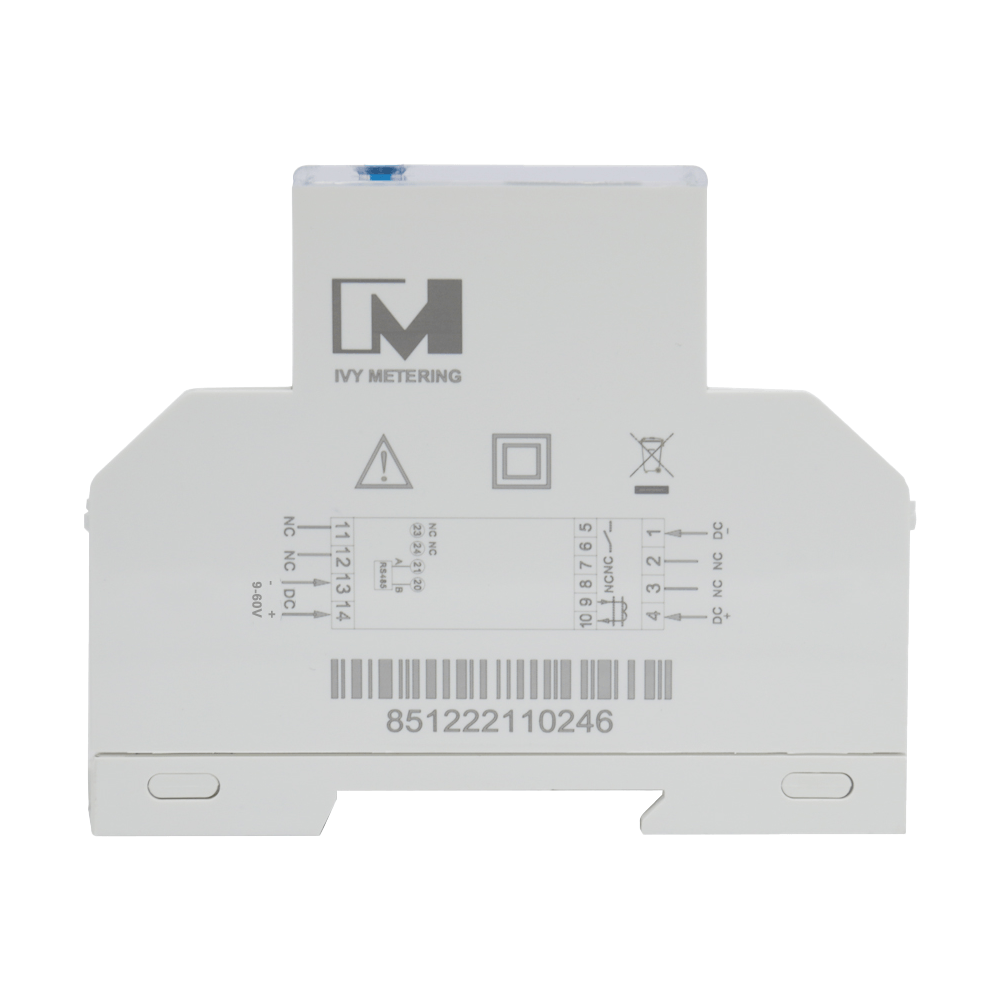

EM619002 is a 5-1000V DC energy power meter with external shunt. It support RS485 communication- DLT645 and Modbus protocol. The main features are: DIN rail installation, compact size, beautiful appearance, built-in battery, Tariff function, RTC, overload alarm, built-in auxiliary relay. it also suitable for depot charger for electrical buses and trucks
1.Features:
EM619002 is a 5-1000V DC energy power meter with external shunt. Measuring Current up to 2000A. It support RS485 communication- DLT645 and Modbus protocol. The main features are: DIN rail installation, compact size, beautiful appearance, built-in battery, Tariff function, RTC, overload alarm, built-in auxiliary relays. This meter is widely used in Battery Energy Storage System, PV solar bidirectional metering, AC & DC EV charging, Telecommunication Based Station, Power Generation System. This DC Meters comply with the accuracy requirements of Class B (MID 2014/32/EU) and Accuracy Class 1 of IEC62053-41:2021.
2.Benefits:

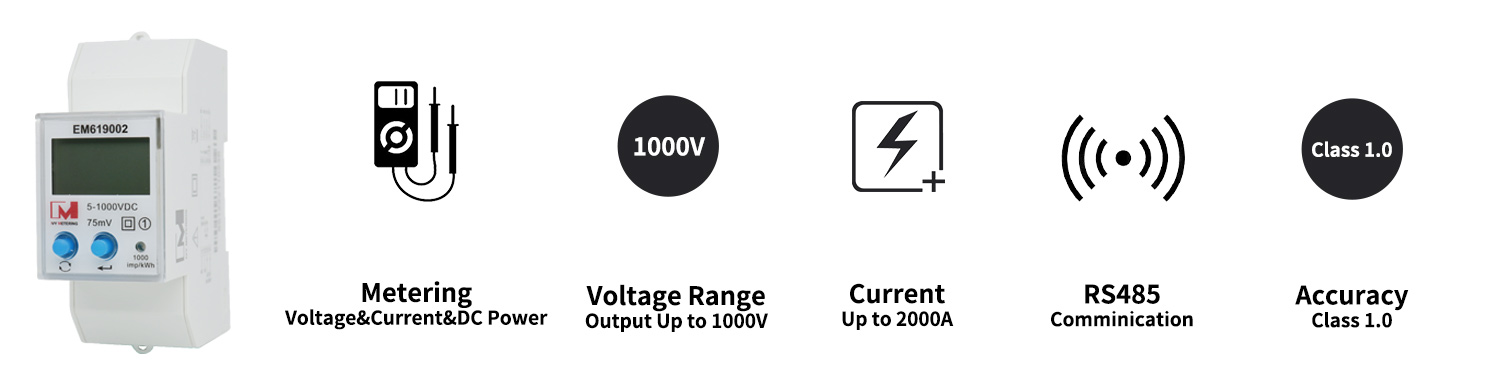

External Shunt Sampling for DC Measuring, Class 1
Supports bidirectional energy flow
Supports RS485 with 1.000V DC
Measure DC I, V, kWh (Max 2000A, 5~1000VDC)
RS485 Comm. - DLT645 and Modbus Protocol
Auxiliary Relays Signal Output for Over-current Cutting
LCD Backlight, Tariff Function and FW Upgrade
German Calibration Law: Module B (Production site according to Module D)
MID 2014/32/EU: EN 50470-4, IEC 62052-31
upcoming certification:UL 61010
Our DC Meters comply with the accuracy requirements of Class B (MID 2014/32/EU) and Accuracy Class 1 of IEC62053-41:2021.
This compact solution allows for precise measurements and efficient power monitoring to ensure reliable direct current charging of up to 240 or 2000 amperes.
3.Application

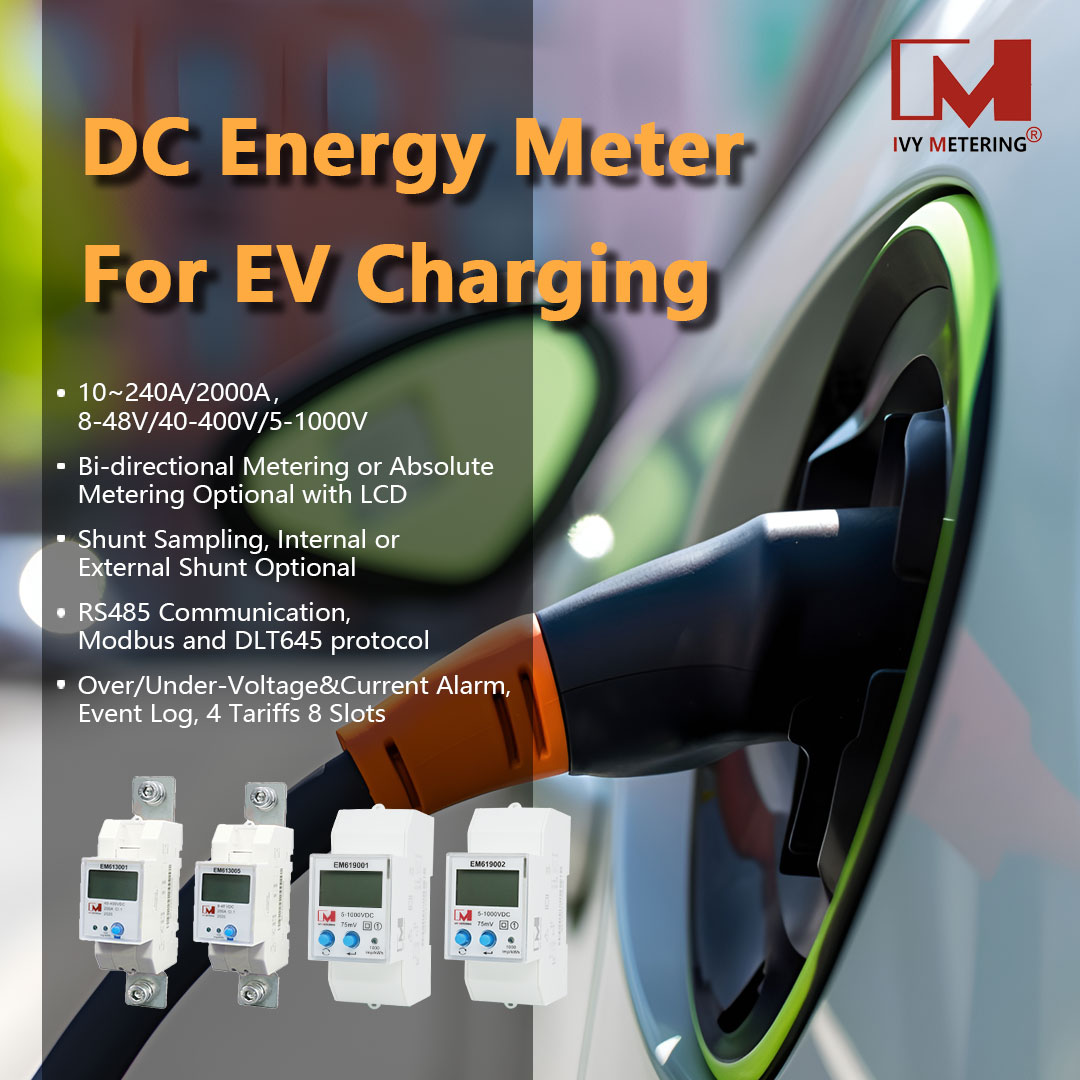

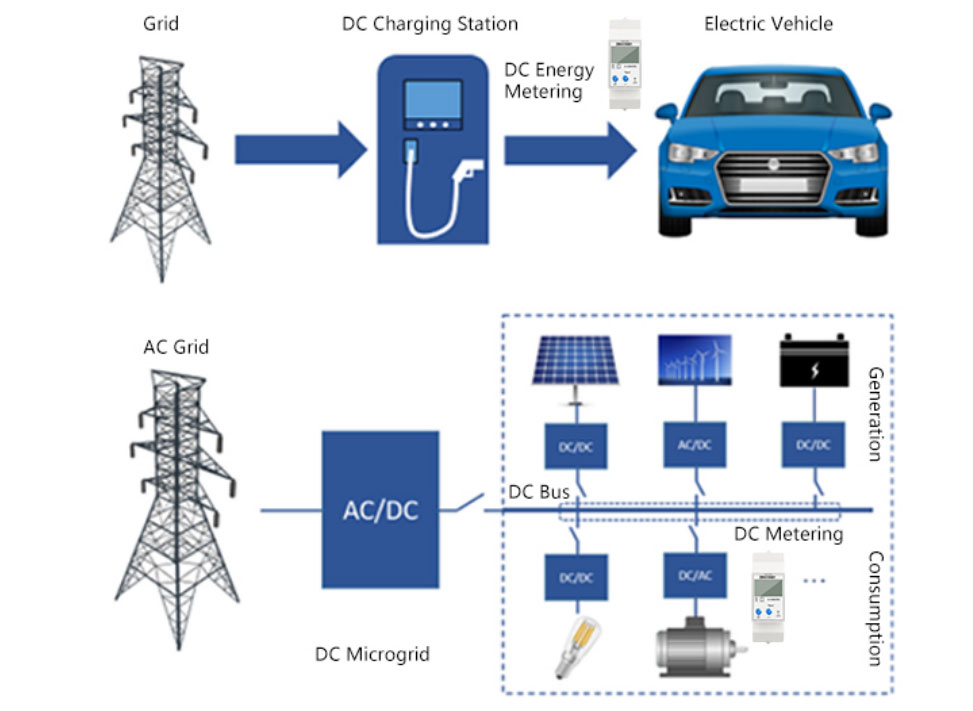

BES/ESS/BESS/BMS Battery Energy Storage System
PV/Photovoltaic/Solar Bidirectional Metering
AC & DC EV charging
Telecommunication Based Station
Power Generation System
for depot charger for electrical buses and trucks
4.FAQ
1. What is the maximum voltage and current range of the EM619002 DC energy meter?
The EM619002 supports DC voltage measurement from 5V to 1000V and current measurement up to 2000A when used with a compatible external shunt. It is designed for high-current DC applications, including EV charging stations, battery energy storage systems, and photovoltaic power systems.
2. How does the EM619002 measure DC current up to 2000A?
The EM619002 uses an external shunt for DC current measurement. The shunt converts the current flowing through the power circuit into a small voltage signal, which the meter measures to calculate current and energy consumption.
The shunt must be selected according to the actual current range and rated output signal. Correct shunt matching and installation are essential for accurate measurement.
3. Can the EM619002 measure both energy consumption and energy export?
Yes. The EM619002 supports bidirectional DC energy measurement. It can measure energy flowing in both directions, making it suitable for applications where DC power can be supplied to or received from the grid-side converter, battery, or charging system.
This function is particularly useful for bidirectional EV charging, battery energy storage, and photovoltaic systems with DC energy exchange.
4. What measurement parameters can the EM619002 provide?
The EM619002 measures DC voltage, current, and active energy. It supports bidirectional energy measurement and provides RS485 communication for remote data acquisition.
These parameters can be used for DC power monitoring, energy consumption analysis, charging statistics, and integration with compatible energy management systems.
