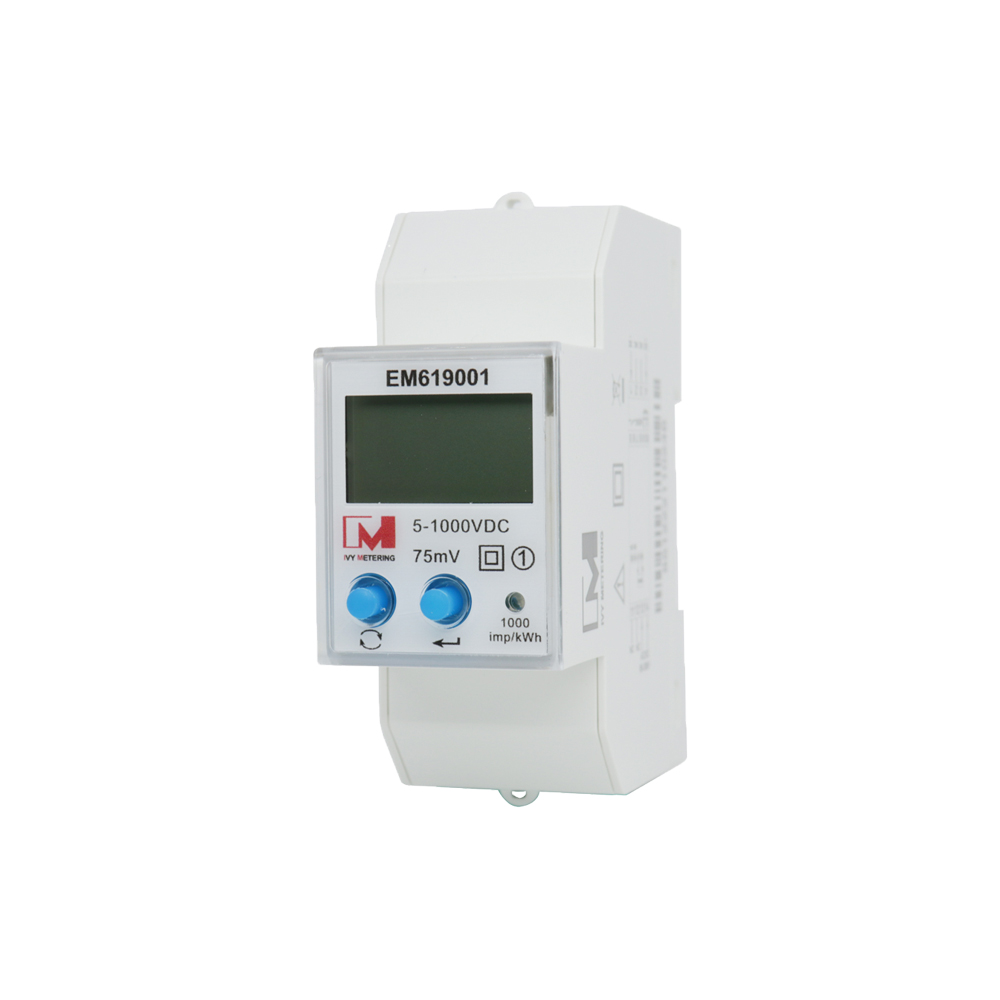

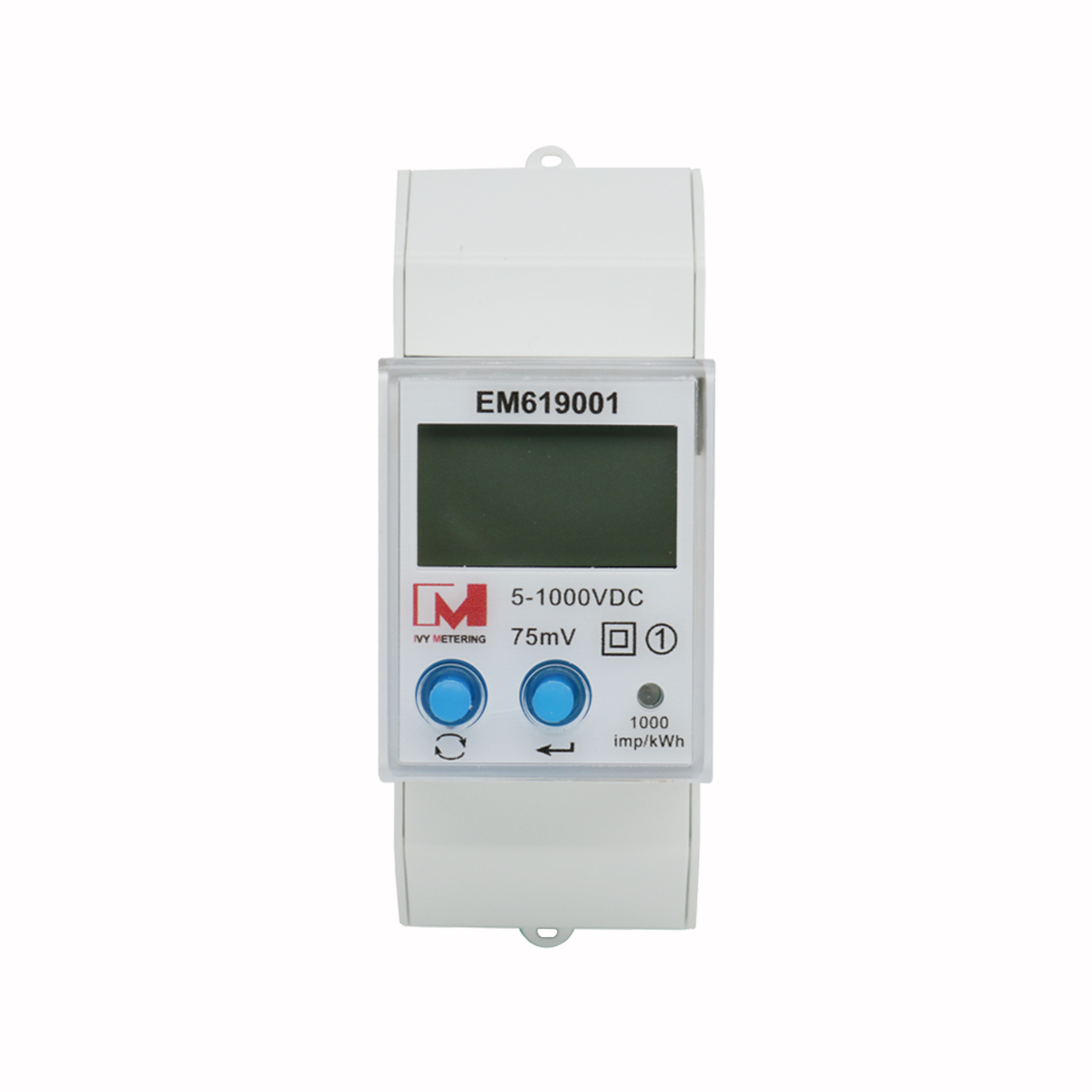

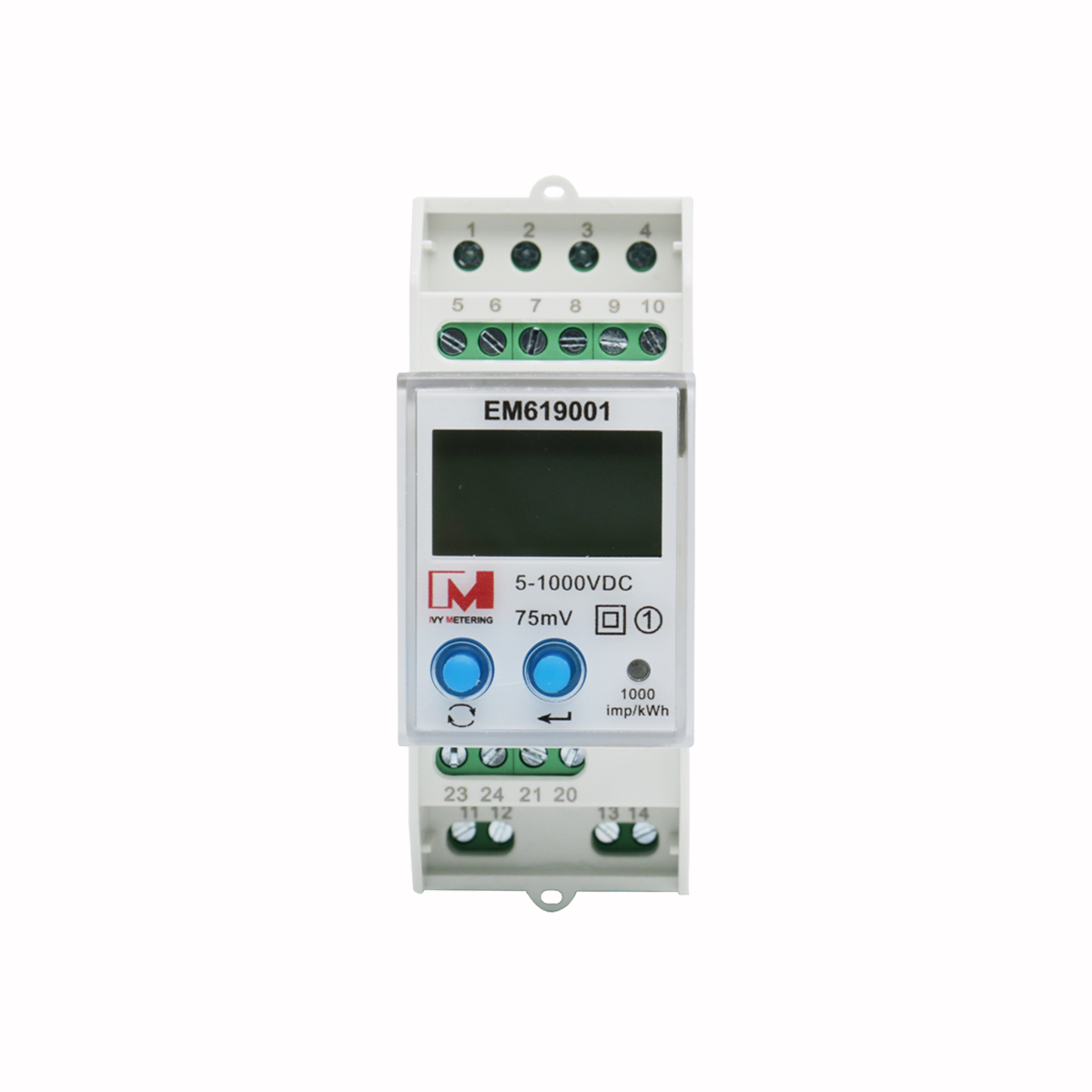

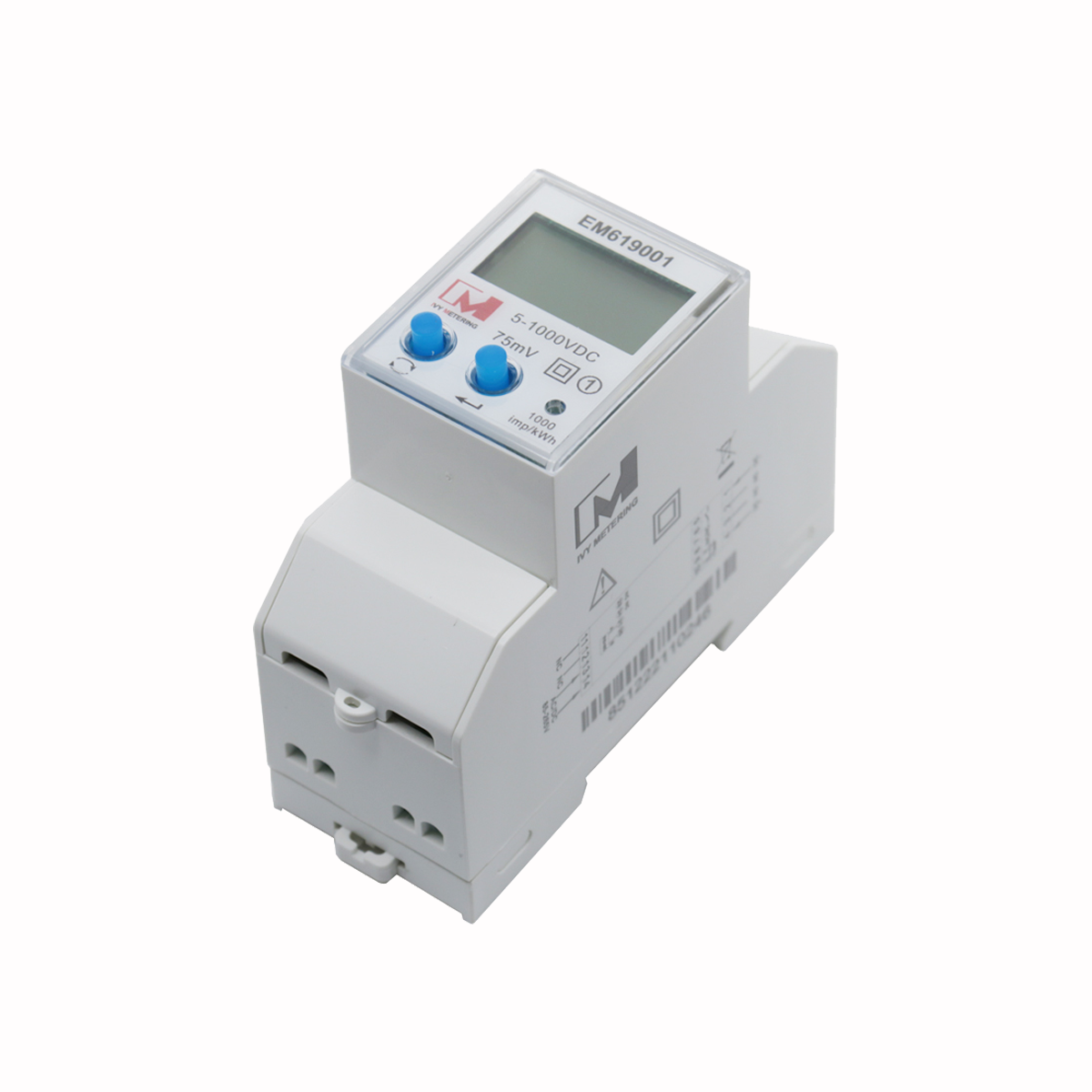

EM619001
5-1000V DC
RS485 communication
DLT645 and Modbus protocol
DIN rail installation
Compact size
Built-in battery
Multi-tariff
Overload alarm
Built-in auxiliary relays
PTB MID/Eichrecht certification
1. Brief introduction
Achieve accurate and reliable DC power measurement with the IVY METERING Smart RS485 DC Energy Meter. Designed for applications ranging from telecommunications to high-voltage DC systems (48V-1000V), this meter delivers bi-directional energy metering, crucial for V2G implementations. Gain full transparency in kWh consumption for EV fast charging and fiscal billing. This meter is a core component for accurate DC power measurement, making it the perfect solution for kWh-based charging needs.
EM619001 is a PTB (Eichrecht) certification and MID 5-1000V DC energy power meter with external shunt. Measuring Current up to 2000A. It support RS485 communication- DLT645 and Modbus protocol. The main features are: DIN rail installation, compact size, beautiful appearance, built-in battery, Tariff function, RTC, overload alarm, built-in auxiliary relays. This meter is widely used in Battery Energy Storage System, PV solar bidirectional metering, AC & DC EV charging, Telecommunication Based Station, Power Generation System.
2. Key Features
External Shunt Sampling for DC Measuring, Class 1
Measure DC I, V, kWh (Max 2000A, 5~1000VDC)
DC voltage input maximum 1000V, current external shunt connection (75mV)
RS485 Comm. - DLT645 and Modbus Protocol
Auxiliary Relays Signal Output for Over-current Cutting
LCD Backlight, Tariff Function and FW Upgrade
PTB MID/Eichrecht certification
Revenue grade energy metering
Intuitive and user-friendly LCD display

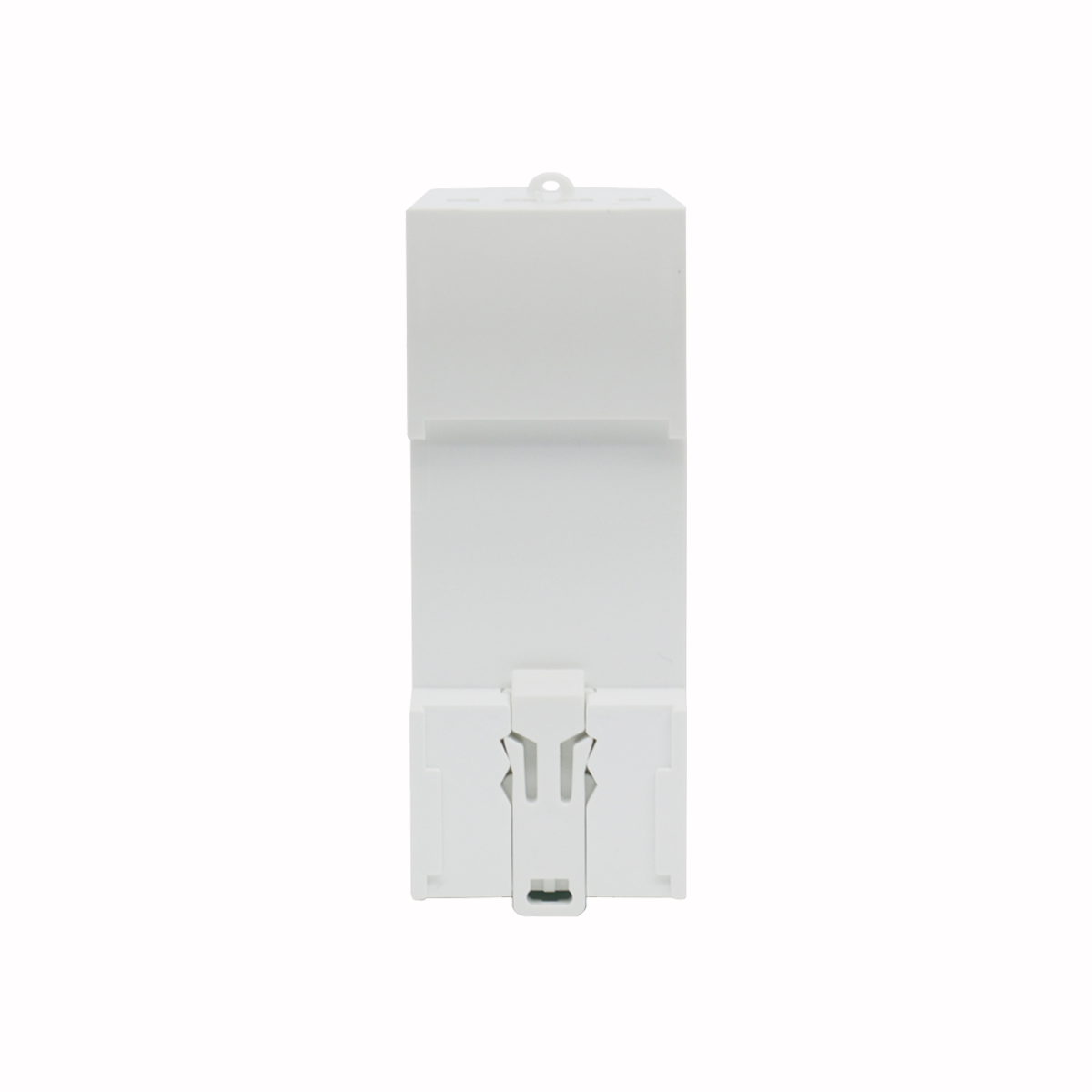

For DIN rail mounted applications
3. Application
BES/ESS/BESS/BMS Battery Energy Storage System
PV/Photovoltaic/Solar Bidirectional Metering
AC & DC EV charging
Telecommunication Based Station
Power Generation System
A cost-effective solution for energy and submetering applications
4. Why choose IVY dc energy meter?
Mains Enegry, Device Energy, Line Loss Energy Measurement
Single or Bidirectional Energy Directions Configurable
Support OCMF communication protocol.
Suitable For DC E-mobility Charging Stations & Any Sub-billing Applications
PTB & IEC Certificates
DC energy meters with direct measurement up to 1000 V/1000A 2000A, with RS-485 interfaces for programming software and DC charging control, correction of charging cable losses, operating temperature up to +80°C, certified according to measuring and calibration law
No Distributor or middleman, Factory-Direct!!!
