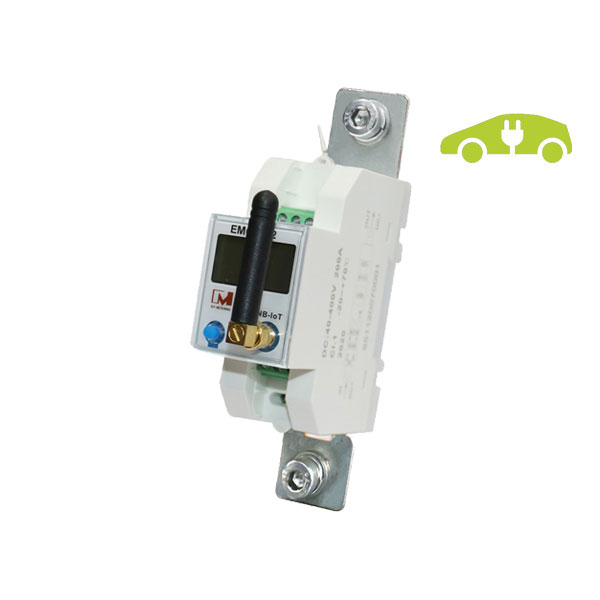

Introducing our compact, dual-module DC DIN Rail Meter, the ideal solution for precise metering and efficient energy management in EV charging applications. This highly accurate (Class 1) meter supports a wide DC voltage range of 40V to 400V and a current range of 10A to 240A. Featuring a pulse output of 100 imp/kWh, it ensures reliable energy consumption tracking. Seamless integration is guaranteed with both RS485 (DLT645 protocol) and integrated WIFI communication, enabling flexible data acquisition and remote monitoring. Designed for standard DIN rail installation and currently undergoing MID certification, this meter is perfectly suited for accurate billing and energy management within the electric vehicle charging infrastructure.
1. Brief introduction
Introducing our compact, dual-module DC DIN Rail Meter, the ideal solution for precise metering and efficient energy management in EV charging applications. This highly accurate (Class 1) meter supports a wide DC voltage range of 40V to 400V and a current range of 10A to 240A. Featuring a pulse output of 100 imp/kWh, it ensures reliable energy consumption tracking.
Seamless integration is guaranteed with both RS485 (DLT645 protocol) and integrated WIFI communication, enabling flexible data acquisition and remote monitoring.
Designed for standard DIN rail installation and currently undergoing MID certification, this meter is perfectly suited for accurate billing and energy management within the electric vehicle charging infrastructure.
2.Function Description
Wide DC Voltage Range: 40V - 400V compatibility for diverse EV charging systems.
Broad Current Range: Measures currents from 10A up to 240A.
High Accuracy: Class 1 precision ensures reliable energy readings.
Dual Communication: Simultaneous RS485 (DLT645) and WIFI for flexible data access.
Pulse Output: 100 imp/kWh for easy integration with monitoring systems.
Compact Dual-Module Size: Space-saving design for easy DIN rail mounting.
MID Certification (Pending): Designed for compliance with European metering standards.
Ideal for EV Charging: Specifically engineered for accurate billing and energy management in EVSE.
Robust and Reliable: Built for long-term performance in demanding environments.
3. Specifications
Reference voltage | 40~400VDC or 5-1000VDC |
Current | 10~240A or upto 2000A via shunt |
Operation temp. | -20℃~+70℃ |
Accuracy class | Cl.1.0 |
Average humidity | 75% |
Relative humidity | 95% |
Communication | RS485 & wifi Communication |
Communication protocol | DTL645 |
Impulse constant | 100 imp/kWh |
LCD display | LCD 6+2 |
Power consumption | ≤0.4W,≤8VA |
Standard compliant | GB/T 17708-2017 |

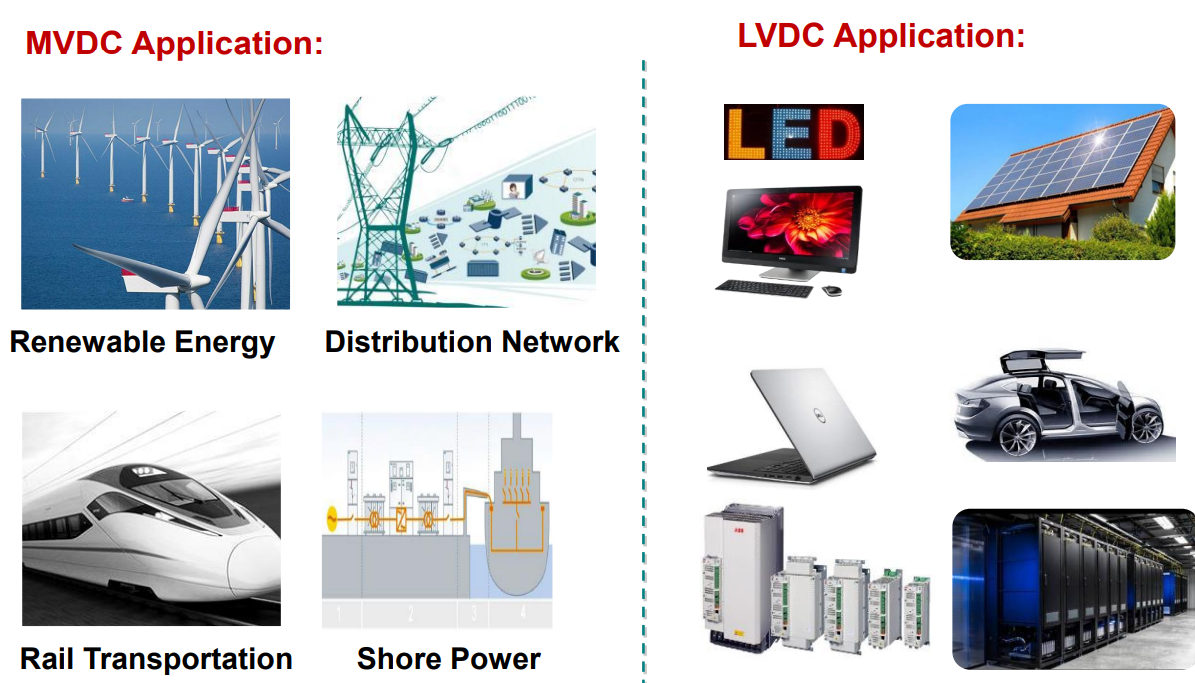

4. Application
