EM114070 is a single phase three modules prepayment din rail electricity meter with built-in latching relay, RS485, Bluetooth & GPRS-4G comm. and external SIM card slot. It supports connecting to internet when power on, remote reading without any setting, remote charging, remote energy clearance, remote switching off (over-load, credit- exhausted) etc. With Bluetooth comm, it can connect with APP for data reading and setting.
1. DESCRIPTION
EM114070 is a single phase three modules prepayment din rail electricity meter with built-in latching relay, RS485, Bluetooth & GPRS-4G comm. and external SIM card slot. It supports connecting to internet when power on, remote reading without any setting, remote charging, remote energy clearance, remote switching off (over-load, credit- exhausted) etc. With Bluetooth comm, it can connect with APP for data reading and setting.
2. FEATURE
Wide Range Measurement,5(100)A 230V
RS485,Bluetooth & 4G Communication, IDIS Protocol
CAT 4 Module with Frequency Band:
LTE-FDD:B1/B3/B5/B7/B8/B20/B28,LTE-TDD:B38/B40/B41
WCCDMA:B1/B5/B8,GSM/EDGE:B3/B8
Prepayment, SO Output, Load Control
Advanced Technology: Adopting 4G rail design, it provides remote meter reading function, which is convenient for real time data monitoring and management.
Multi Functional Application: It can meet the needs of household and commercial power consumption, and the three phase four wire design is suitable for different scenarios, such as residence, office, factory, and so on.
High Efficiency and Energy Saving: Smart meters are equipped with pre payment function, prompting users to manage power consumption more reasonably and realize energy saving and cost control.
High Accuracy Measurement: Adopting advanced technology ensures the accuracy of power measurement and avoids disputes over electricity bills caused by measurement errors.
Prime Material: After strict testing and certification, this electricity meter is stable and reliable, long lasting use.
3. APPLICATION

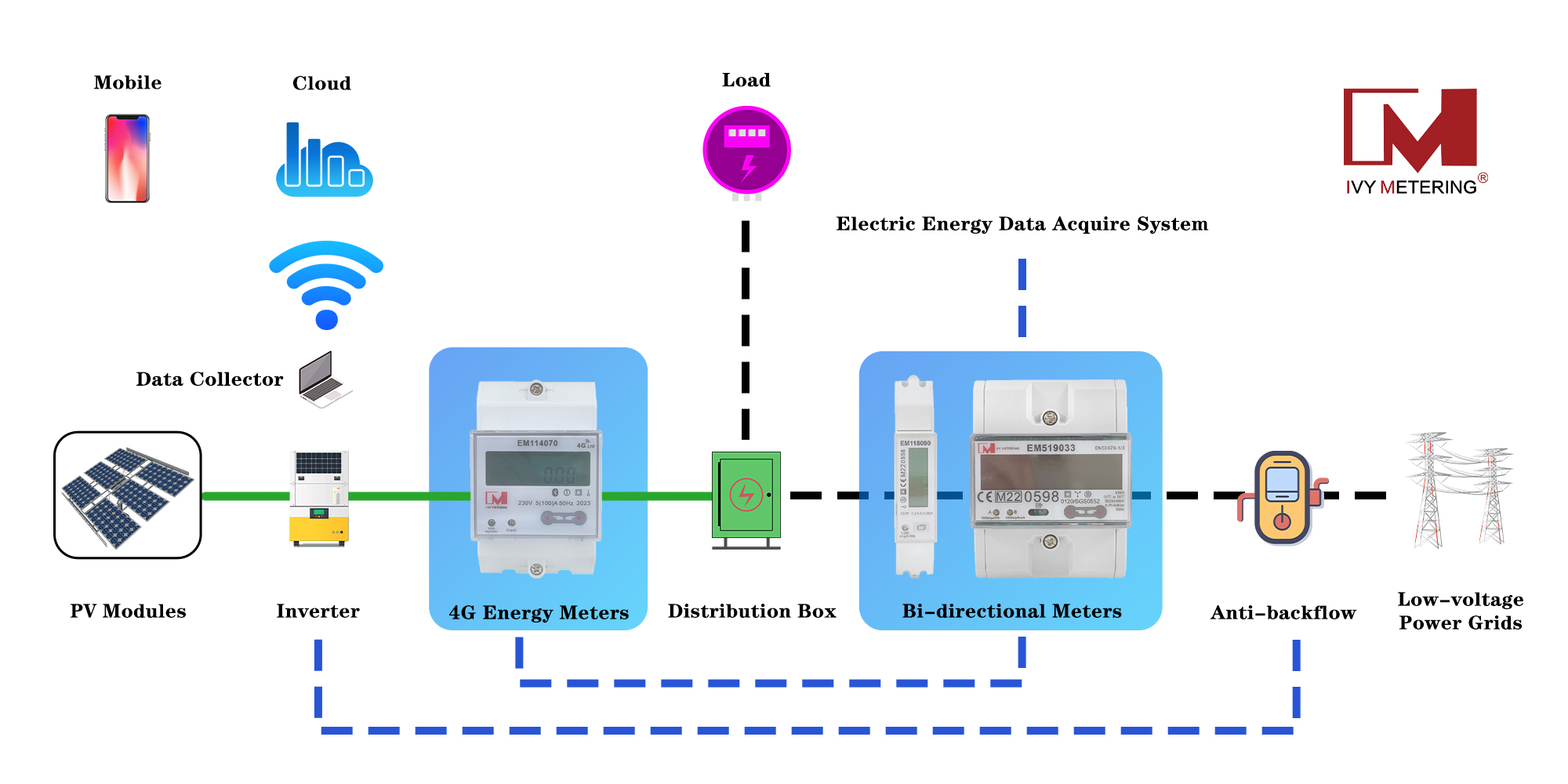

GPRS Solar Energy Monitoring System（Plz refer to below application)
Smart Campus Energy Management System
Smart Houses/Building/Home
Smart Industry or Sub-metering
Energy and energy efficiency management system.
Internal energy consumption statistical analysis and charging statistics basis.
Energy metering,automatic meter reading system.
Intelligent distribution management system.
4.More Options
Factory-direct supply with 32+ years experience in smart metering solutions.
