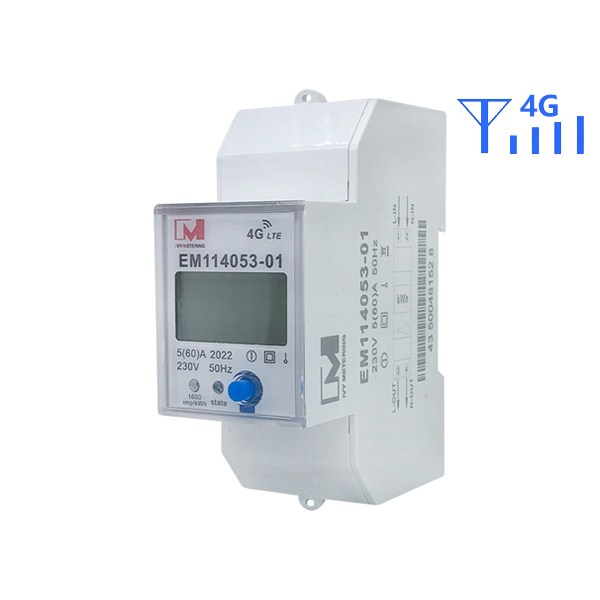

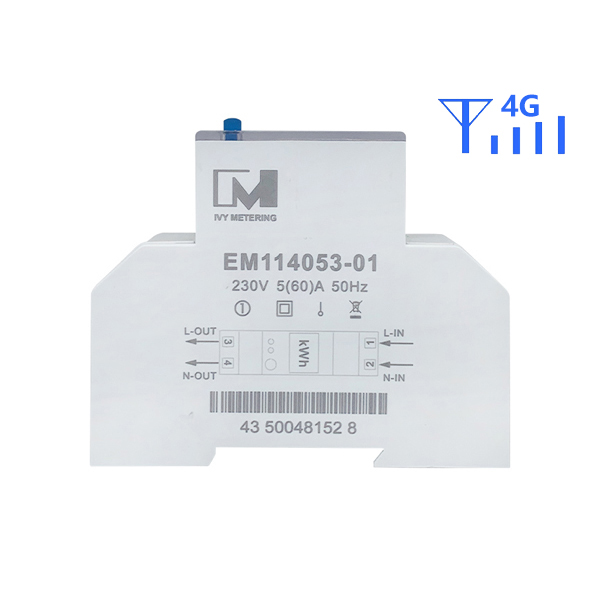

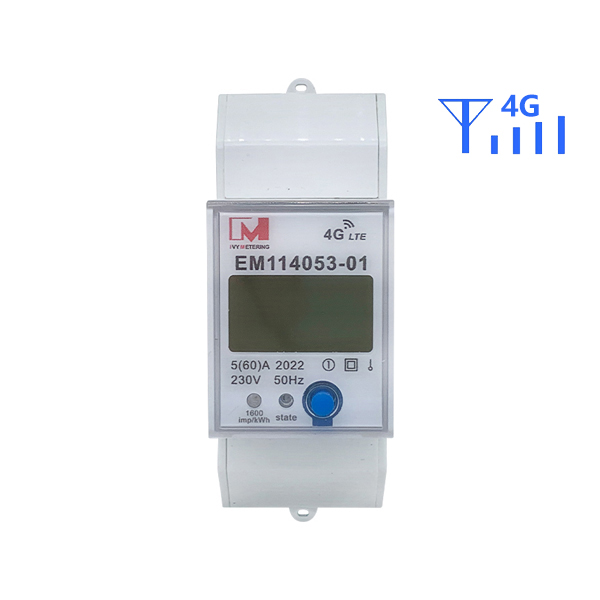

[4G CAT1] EM114053-01 LTE Prepaid meters GPRS Electricity Meter Prepayment Smart Energy Meter CAT 1 Power Meters

EM114053-01 is a single phase dual modules prepayment din rail electricity 4G LTE Prepaid meter with built-in latching relay, GPRS-4G comm. and external SIM card slot. It supports connecting to internet when power on, remote reading without any setting, remote charging, anti-tamper, remote energy clearance, remote switching off (over-load, credit- exhausted) etc.

As a Single phase 4G DIN rail prepaid energy meter is in full compliance with the international standard of IEC62052-11/IEC62053-21/IEC62055-41 class 1 energy meter of the relevant technical requirements. It integrates measurement of voltage, current, power, power factory, power consumption and 4g communication together.

Inquire Now Next Product

1. Brief Introduction

The EM114053-01 is a compact and reliable single-phase two-wire prepaid smart electricity meter designed for residential and light commercial installations. Featuring a DIN rail mounting design for easy integration into distribution boards, this meter supports prepayment functionality via an external interface. It is equipped with integrated 4G communication, utilizing the proprietary IVY-BUS protocol for data exchange. The built-in relay enables remote connection and disconnection of the power supply. With Class 1 accuracy, it ensures precise energy measurement for accurate billing.

2. FEATURE

Wide Range Measurement 5(60)A 220V

Prepaid Functionality: Secure prepayment system enabled through a dedicated external interface.

4G Communication: Facilitates reliable remote data collection and control using cellular networks.

CAT 1 Module，4G Frequency Bands:

LTE-TDD:B34/B38/B39/B40/B41, LTE-FDD:B1/B3/B5/B8

IVY-BUS Protocol: Proprietary protocol optimized for efficient communication within compatible systems.

Remote Load Control: Built-in relay allows for remote connection and disconnection of electricity supply.

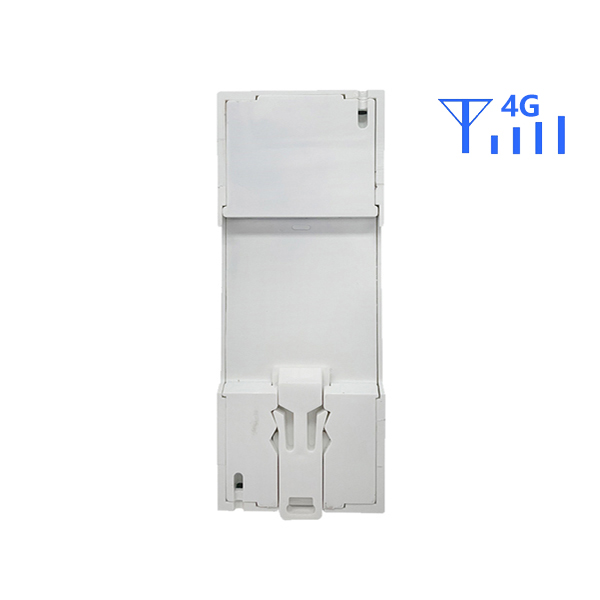

DIN Rail Mounting: Standardized mounting for easy installation in distribution boards.

High Accuracy: Class 1 accuracy ensures precise and reliable energy measurement.

Tamper Resistance: Designed with features to deter and detect tampering.

Compact Design: Space-saving design suitable for various installation environments.

Low-credit Alarming, Remote Control

Event Log, Anti-hoarding, Overload Protection, Friend Hour

3. Benefits

Secure Revenue Collection: Prepaid system eliminates the risk of unpaid electricity bills.
Remote Management: 4G communication enables efficient remote monitoring and control.
Simplified Installation: DIN rail mounting allows for quick and easy installation.
Accurate Measurement: Class 1 accuracy ensures fair and precise billing.
Enhanced Control: Remote load control provides flexibility in managing electricity supply.

4.Application

Smart Campus Energy Management System

Smart Houses/Building/Home

Smart Industry or Sub-metering

Small Commercial Units
