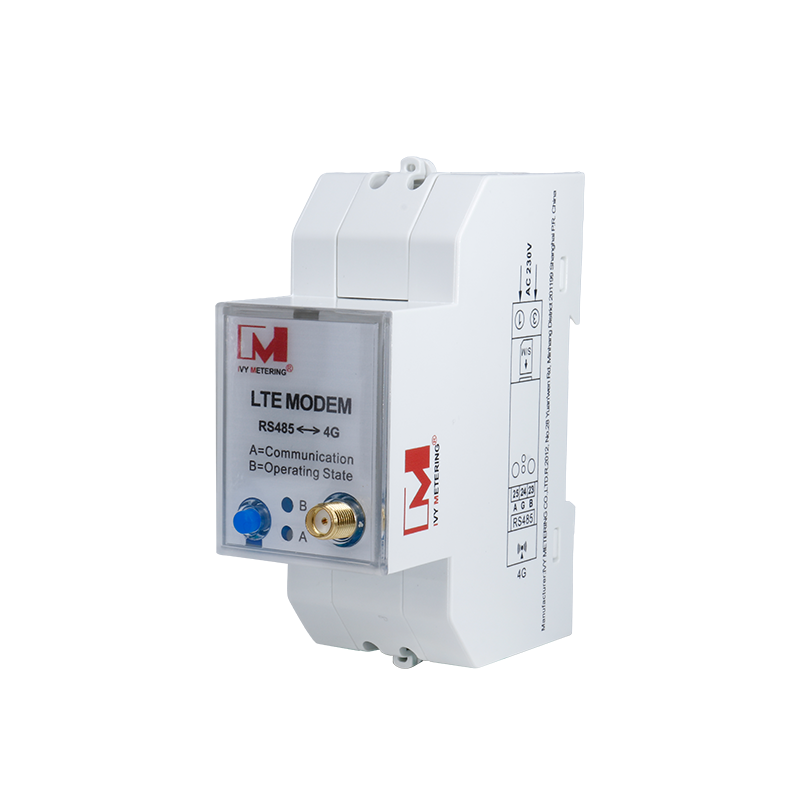

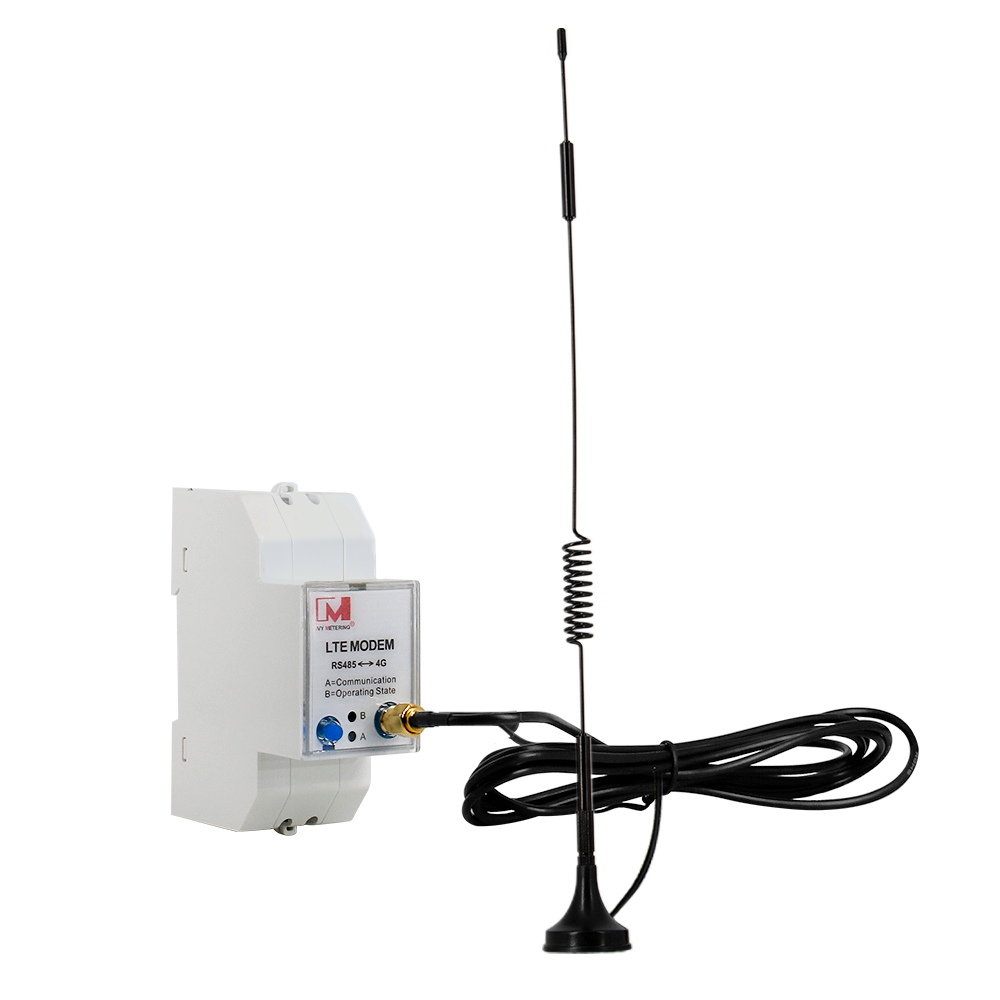

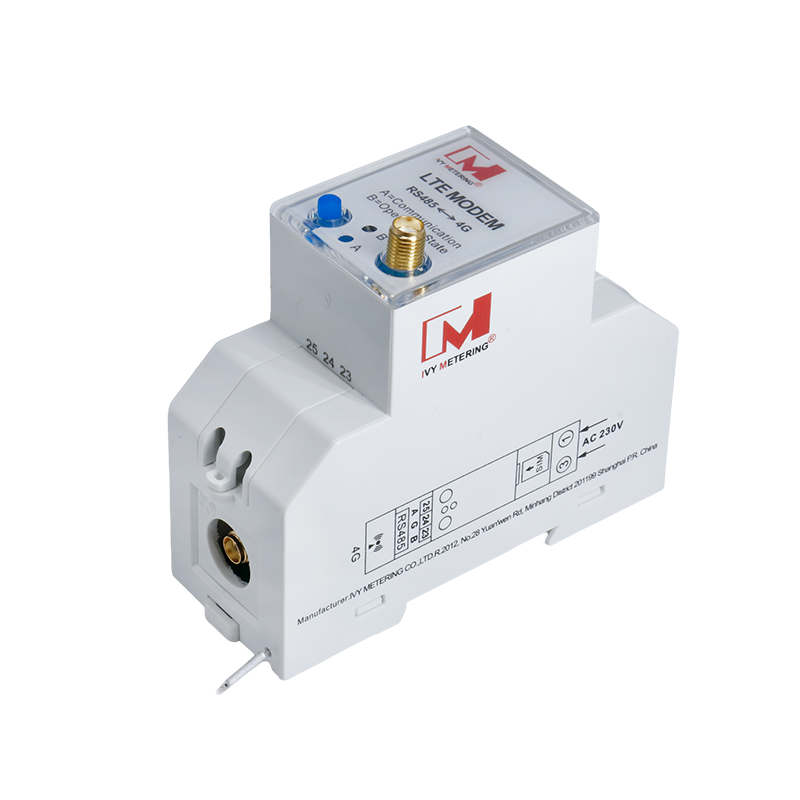

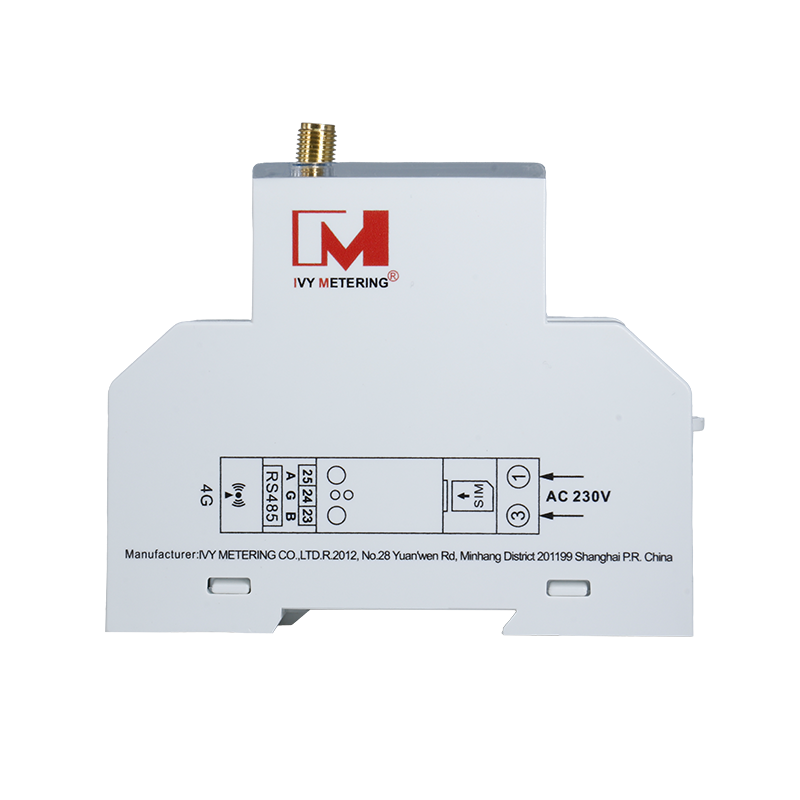

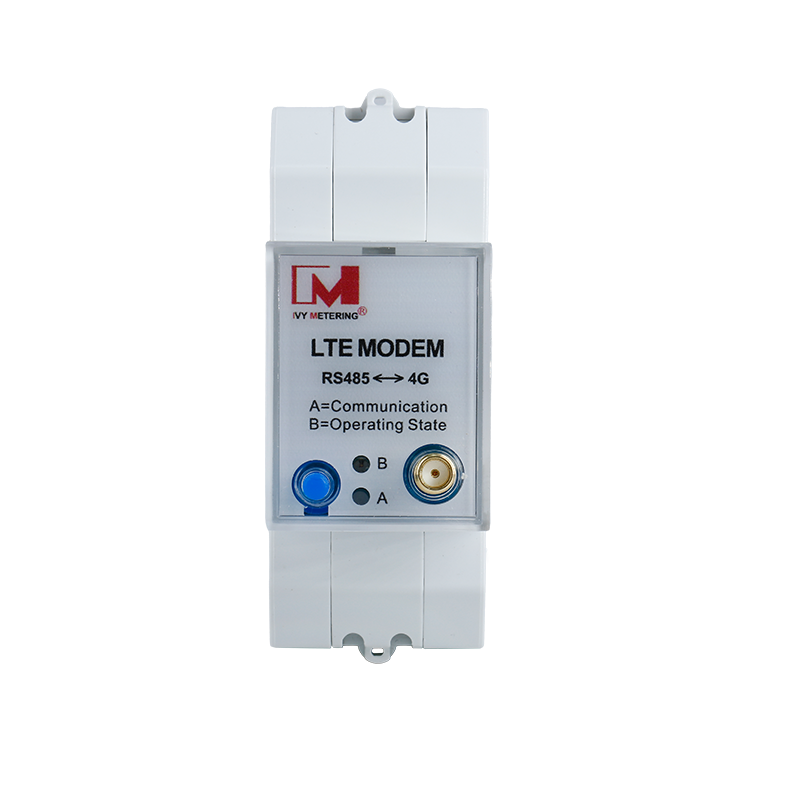

RS485 to 4G Converter for Remote Meter Communication
The J119026 RS485 to 4G Converter is an industrial communication gateway designed to connect traditional RS485 devices with modern 4G cloud-based monitoring systems.
By using RS485 communication for downstream devices and 4G wireless communication for upstream data transmission, the converter enables remote meter reading, centralized monitoring, and parameter management without replacing existing RS485 energy meters.
The gateway is compatible with most RS485-based devices and supports various Modbus RTU communication applications.
One J119026 converter can connect up to 128 RS485 devices, providing an efficient and cost-effective solution for large-scale smart meter networking, energy management systems, and industrial IoT applications.
RS485 to 4G Converter for Remote Meter Communication
The J119026 RS485 to 4G Converter is an industrial communication gateway designed to connect traditional RS485 devices with modern 4G cloud-based monitoring systems.
By using RS485 communication for downstream devices and 4G wireless communication for upstream data transmission, the converter enables remote meter reading, centralized monitoring, and parameter management without replacing existing RS485 energy meters.
The gateway is compatible with most RS485-based devices and supports various Modbus RTU communication applications. One J119026 converter can connect up to 128 RS485 devices, providing an efficient and cost-effective solution for large-scale smart meter networking, energy management systems, and industrial IoT applications.
Product Features & Advantages
1. RS485 to 4G Wireless Communication
The J119026 converts traditional RS485 communication into 4G wireless communication, allowing RS485 meters and devices to connect directly with remote servers, cloud platforms, and monitoring systems.
Downlink: RS485 communication with meters and devices
Uplink: 4G communication with servers or cloud platforms
Enables remote data collection and centralized management
2. Supports Up to 128 RS485 Devices
A single converter can connect multiple RS485 devices, reducing installation costs and simplifying system deployment.
Supports up to 128 RS485 meters
Suitable for multi-meter monitoring systems
Ideal for commercial buildings, industrial facilities, and energy management projects
3. Compatible with RS485 Modbus Devices
The converter is designed for flexible integration with different RS485 devices.
It can communicate with various RS485 meters and equipment based on Modbus RTU communication, including:
Smart electricity meters
Energy meters
Power monitoring devices
Industrial measurement equipment
Automation controllers
4. Remote Meter Reading Through 4G Network
The J119026 allows users to remotely collect meter data through a 4G network without requiring local communication wiring.
It supports:
Remote data acquisition
Centralized energy monitoring
Cloud platform integration
Long-distance communication
5. Flexible Communication Parameter Configuration
The RS485 communication parameters can be adjusted according to different project requirements.
Supported baud rates:
4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps
Default communication setting:
115200 / NONE / 8 / 1
6. Remote Firmware Upgrade Function
When new functions or software improvements are required, the converter supports remote firmware upgrades through the network.
No need to remove the device from the installation site, reducing maintenance costs and improving system reliability.
7. Remote Parameter Configuration
The converter supports reading and configuring important communication parameters, including:
Modbus ID
Device address
RS485 communication parameters
Server IP address
Server port
Domain name settings
Configuration can be completed remotely through RS485 communication.
8. Reliable Data Reporting & Heartbeat Function
The device supports automatic data reporting and heartbeat monitoring to maintain stable communication with cloud platforms.
Default data reporting interval: 180 seconds
Heartbeat interval adjustable from 30s to 3600s
Ensures stable connection between field devices and cloud servers
Application Scenarios
Smart Energy Meter Remote Monitoring
The J119026 provides a simple upgrade solution for existing RS485 energy meter systems. Traditional meters can be connected to cloud platforms through 4G communication without replacing installed equipment.
Applications include:
Electricity consumption monitoring
Remote meter reading
Energy management systems
Power distribution monitoring
Commercial Buildings & Smart Buildings
For buildings equipped with multiple RS485 meters, the converter enables centralized energy monitoring through a cloud platform.
Suitable for:
Office buildings
Shopping malls
Hotels
Residential communities
Industrial Energy Management
Factories and industrial sites can use the converter to collect data from multiple RS485 devices and transmit information to remote management platforms.
Applications:
Factory energy monitoring
Equipment management
Industrial IoT systems
EV Charging Infrastructure
The converter can be used in EV charging stations where multiple RS485 meters or monitoring devices need remote communication.
Applications:
Charging station energy monitoring
Charging operation management
Remote electricity data collection
Solar PV & Renewable Energy Systems
The J119026 can connect RS485-based meters in solar power systems and transmit generation and consumption data to cloud platforms.
Applications:
Solar PV monitoring
Energy storage systems
Renewable energy management
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | J119026 |
| Communication Type | RS485 to 4G |
| Downlink Communication | RS485 |
| Uplink Communication | 4G |
| Supported Devices | Up to 128 RS485 devices |
| Communication Protocol | RS485 Modbus RTU compatible |
| Data Acquisition Method | Active reading |
| Baud Rate | 4800 / 9600 / 19200 / 38400 / 57600 / 115200bps |
| Default RS485 Setting | 115200 / NONE / 8 / 1 |
| Data Reporting Interval | Default 180 seconds |
| Heartbeat Interval | 30s ~ 3600s configurable |
| Remote Upgrade | Supported |
| Parameter Configuration | RS485 configuration |
| Server Configuration | IP / Port / Domain Name |
| Application | Smart meters, IoT devices, industrial equipment |
Why Choose J119026 RS485 to 4G Converter?
The J119026 provides an efficient communication upgrade solution for existing RS485 devices. Instead of replacing traditional meters or installing new communication infrastructure, users can easily connect existing RS485 equipment to modern 4G cloud platforms.
With support for up to 128 devices, flexible Modbus communication, remote configuration, and OTA upgrades, it is an ideal gateway solution for smart energy monitoring, industrial IoT, and remote meter reading applications.
FAQ
Q1: What devices can work with the J119026 RS485 to 4G Converter?
The converter can work with most RS485 devices that support compatible communication protocols, especially RS485 Modbus RTU meters and monitoring equipment.
Q2: How many RS485 meters can one converter connect?
One J119026 converter can support up to 128 RS485 devices depending on communication conditions and system configuration.
Q3: Can existing RS485 meters be upgraded to remote monitoring?
Yes. The J119026 allows existing RS485 meters to connect with cloud platforms through 4G communication without replacing the meters.
Q4: Does the converter support remote firmware upgrades?
Yes. The device supports remote upgrades, allowing future software improvements without onsite maintenance.
Q5: What is the difference between RS485 and 4G communication?
RS485 is mainly used for short-distance local communication between devices, while 4G enables long-distance wireless communication with servers and cloud platforms. The J119026 combines both technologies for remote monitoring solutions.
