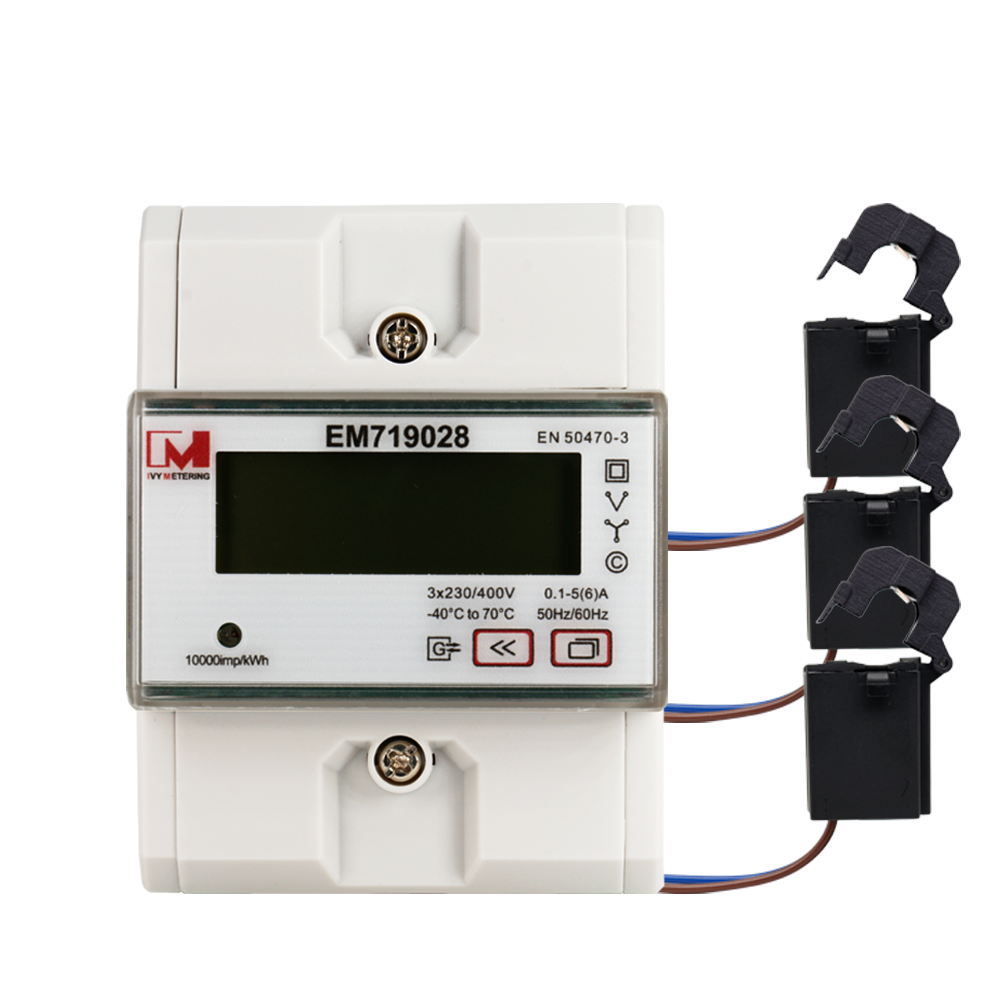

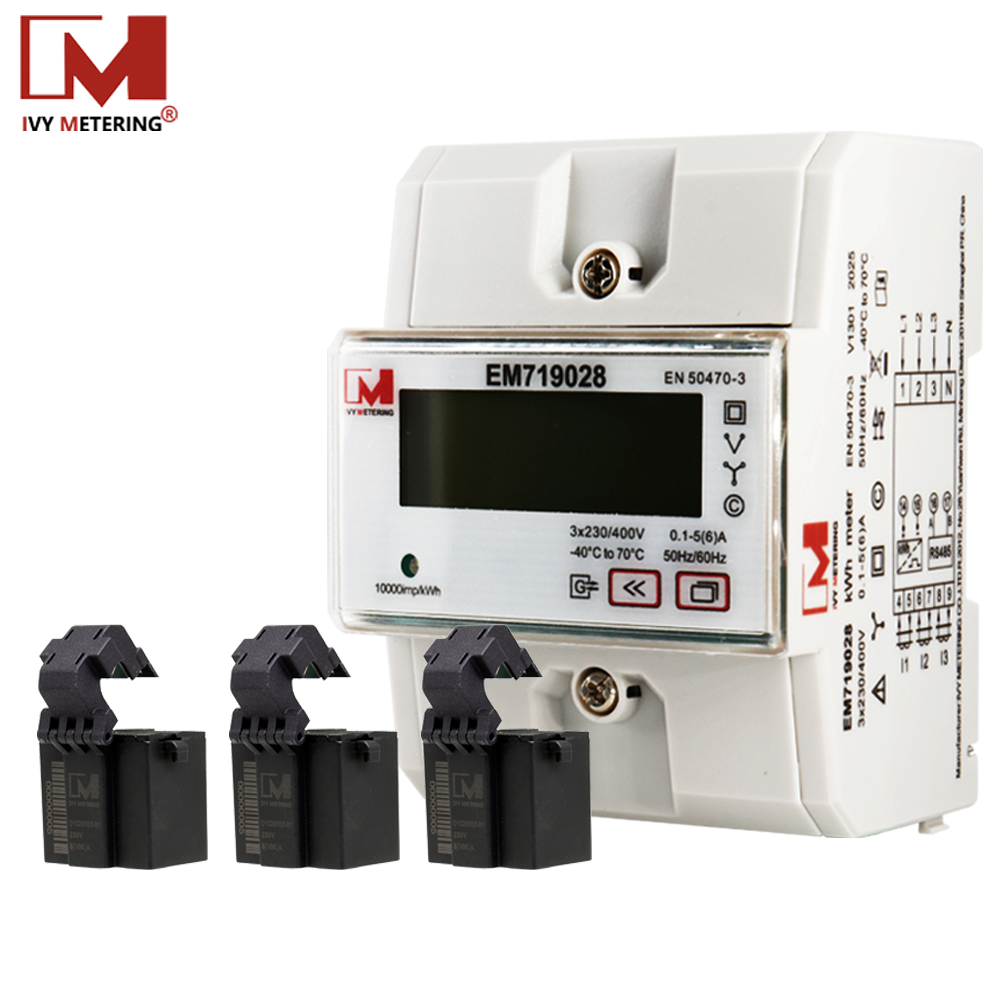

The EM719028 energy meter is a three-phase DIN rail-mounted CT-type energy meter that supports RS485 communication, is compatible with DLT/645 and MODBUS-RTU protocols, has multi-tariff functions, and supports various metering methods. Maximum load: 6A. It can be widely applied in various metering fields and is widely suitable for household and commercial power distribution systems.
The EM719028 energy meter is a three-phase DIN rail-mounted CT-type energy meter that supports RS485 communication, is compatible with DLT/645 and MODBUS-RTU protocols, has multi-tariff functions, and supports various metering methods. Maximum load: 6A. It can be widely applied in various metering fields and is widely suitable for household and commercial power distribution systems.
1.Bidirectional Energy Measurement (Accurately measures both import and export energy)
2.3-Phase 4-Wire CT Connection (Designed for standard industrial and commercial power systems)
3.High Accuracy Class 0.5 (Meets IEC Class C standard for precise billing-grade metering)
4.Dual-Protocol RS485 Communication (Seamless integration with Modbus-RTU or DL/T645 systems)
5.Configurable Multi-Tariff Function (Supports up to 4 tariffs for flexible energy cost management)
| Pulse Constant | 1000imp/kWh |
Communication | RS485 Modbus/DLT64 |
Baud Rate | 9600\19200\ |
SO Output | SO refers to the total active power (default) or active/reactive forward power (optional) |
Backligh | YES |
Lithium Battery | YES |
Multi-Tariff | YES |
| Measurement model | 1.Total=Forward |
Button | Touch Button |
Button Function | Left button: Turn the page, |
Default setting | 1000imp/kWh |
Function Description
Factory-direct supply with 32+ years experience in smart metering solutions.
